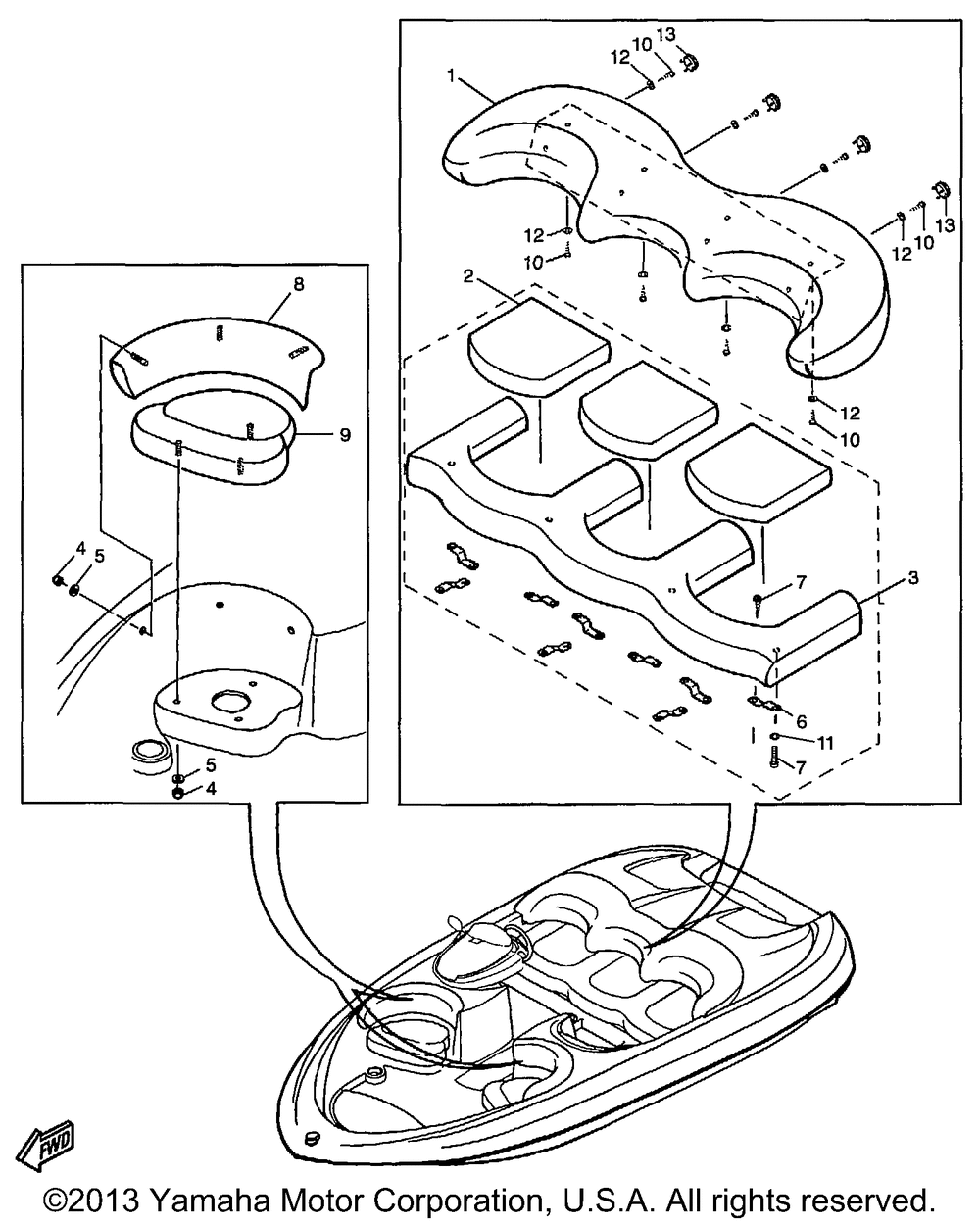

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BACK RESTR SEAT | 1 | |
| 2 | CUSHION BACK SEAT | 3 | |
| 3 | SEAT BASE REAR | 1 | |
| 4 | NUT 1/4-20 UN | 12 | |
| 5 | WASHER 1/4" LOCK UN | 12 | |
| 6 | BRACKETSEAT (9114) | 4 | |
| 7 | SCREW tahos_10 X 3/4" | 8 | |
| 8 | BACKREST FRONT LEFT | 1 | |
| 8 | BACKREST FRONT RIGHT | 1 | |
| 9 | CUSHION SEAT FRONT | 1 | |
| 9 | CUSHION SEATFRONT | 1 | |
| 10 | SCREW 1/4-20X1 3/4 | 8 | |
| 11 | WASHER FENDER (1/4" | 10 | |
| 12 | WASHER FENDER | 4 | |
| 13 | PLUG | 4 |
