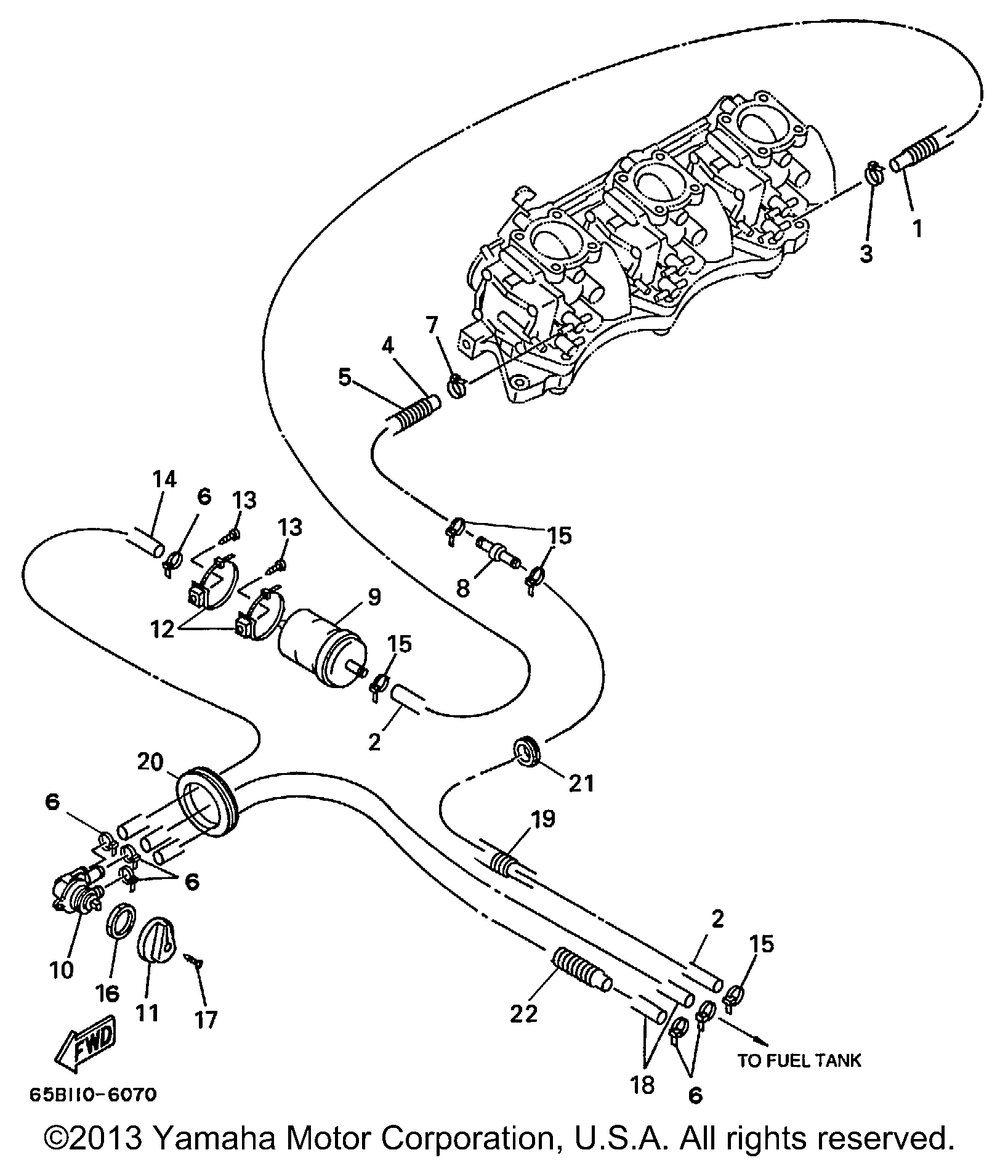

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE | 1 | |
| 2 | HOSE1/4 | 1 | |
| 3 | HOSE CLAMP ASSY | 1 | |
| 4 | HOSE | 1 | |
| 5 | HOSE | 1 | |
| 6 | BAND HOSE 18.5 MM | 6 | |
| 8 | PIPE JOINT (1/4") (14) | 1 | |
| 9 | FUEL FILTER ASSY | 1 | |
| 10 | FUEL COCK ASSY 1 | 1 | |
| 11 | LEVER COCK | 1 | |
| 12 | CLAMP CABLE | 2 | |
| 13 | SCREW tahos_8 X 3/4" (5 per pack) | 2 | |
| 14 | HOSE2 FUEL 5/16" | 1 | |
| 15 | CLAMP EAR 17 | 3 | |
| 16 | NUTHEXAGON | 1 | |
| 17 | SCREWPAN HEAD | 1 | |
| 18 | HOSE2 FUEL 5/16" | 2 | |
| 19 | PROTECTHOSE 3/4X9 (3/4 X 1/6") | 1 | |
| 20 | GROMMET SPLIT | 1 | |
| 21 | GROMMET | 1 | |
| 22 | PROTECTOR HOSE (16") | 1 |
