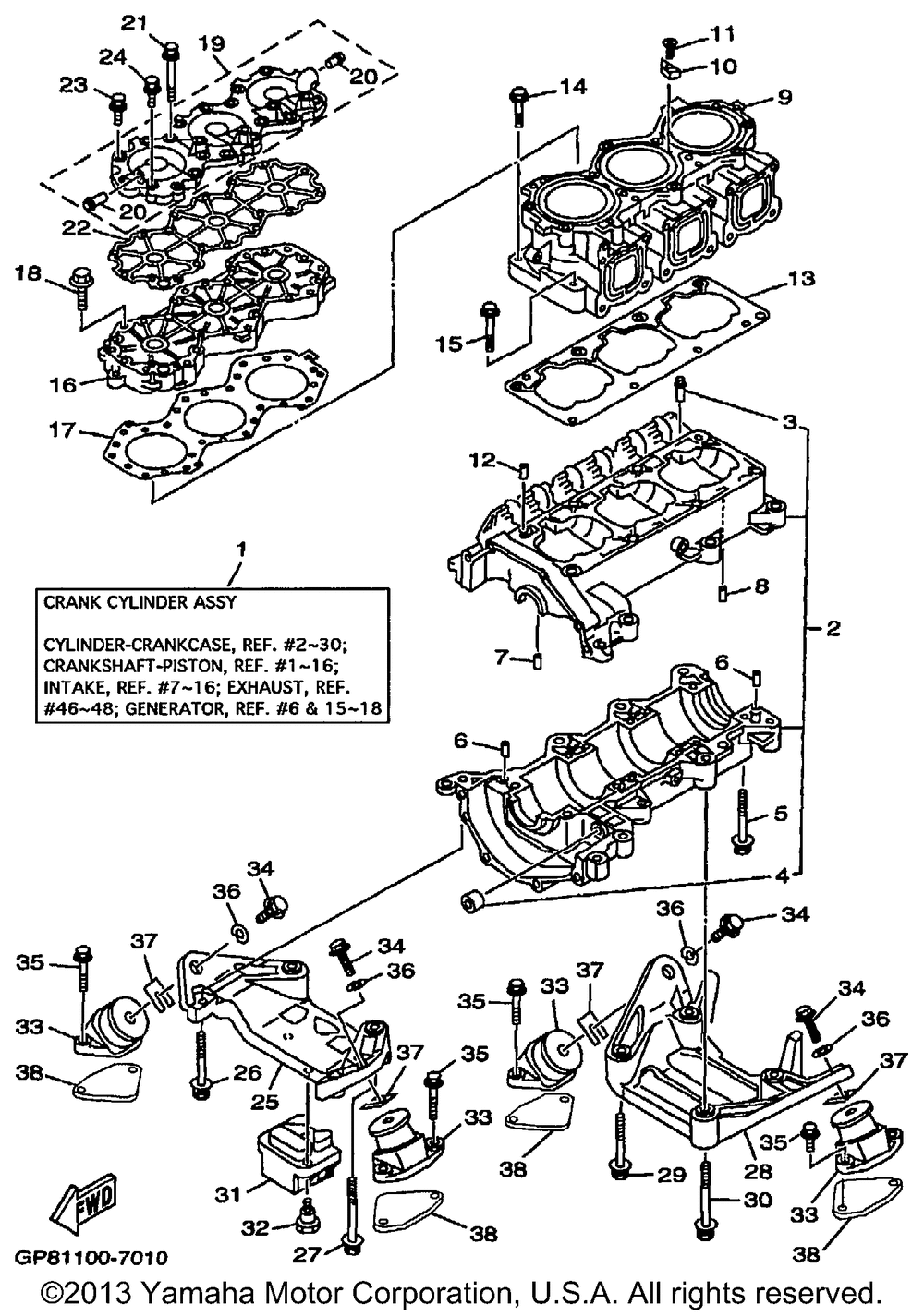

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANK CYLINDER ASSY | 1 | |
| 2 | CRANKCASE ASSY | 1 | |
| 3 | NIPPLE | 3 | |
| 4 | BUSHSOLID | 1 | |
| 5 | BOLTWITH WASHER | 12 | |
| 6 | PINDOWEL (USA) (5 per pack) | 2 | |
| 7 | PINDOWEL (5 per pack) | 7 | |
| 8 | PINDOWEL (5 per pack) | 1 | |
| 9 | CYLINDER 1 | 1 | |
| 10 | ANODE | 2 | |
| 11 | SCREWFLAT HEAD | 2 | |
| 13 | GASKETCYLINDER | 1 | |
| 14 | BOLTWITH WASHER | 6 | |
| 15 | BOLTWITH WASHER | 2 | |
| 16 | HEAD CYLINDER 1 | 1 | |
| 17 | GASKET CYLINDER H | 1 | |
| 18 | BOLT WITH WASHER | 10 | |
| 19 | COVER CYLINDER HEAD | 1 | |
| 20 | NIPPLE | 2 | |
| 21 | BOLT WITH WASHER | 4 | |
| 22 | GASKET HEAD COVER 1 | 1 | |
| 23 | BOLT W/WASHER | 13 | |
| 24 | BOLT W/WASHER (USA) | 2 | |
| 25 | BRACKET FRONT UPPER | 1 | |
| 26 | BOLT W/WASHER | 4 | |
| 27 | BOLTWITH WASHER (5 per pack) | 1 | |
| 28 | BRACKET REAR UPPER | 1 | |
| 30 | BOLT W/WSHR (63N) | 2 | |
| 31 | STOPPER UPPER MOU | 1 | |
| 32 | BOLT | 2 | |
| 33 | MOUNT RUBBER | 4 | |
| 34 | BOLT W/WASHER | 4 | |
| 35 | BOLT YMUS | 8 | |
| 36 | PLATE | 4 | |
| 37 | SHIM (T=0.1) (T=0.1) UN | 10 | |
| 37 | SHIM (T=0.3) (T=0.3) UN | 10 | |
| 37 | SHIM (T=0.5) (T=0.5) UN | 10 | |
| 37 | SHIM (T=1.0) (T=1.0) UN | 10 | |
| 37 | SHIM (T=2.0) (T=2.0) UN | 10 | |
| 38 | SPACER ENG. MOUNT | 8 |
