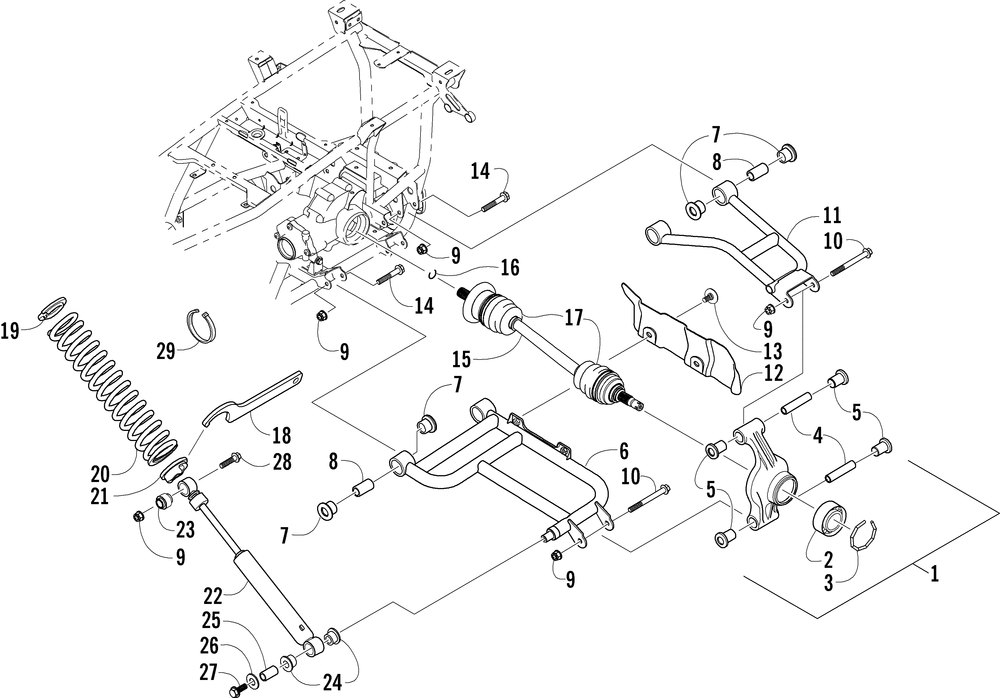

REAR SUSPENSION ASSEMBLY

Корзина пуста
Наименование Примечание Кол-во
1 KNUCKLEREAR-ASSY (inc. 23-26) Right 1
1 KNUCKLEREAR-ASSY (inc. 23-26) Left 1
2 BEARING WHEEL 2
3 RINGRETAINING 2
4 COLLARSUSPENSION BUSHING-REAR K 4
5 BUSHINGREAR SUSPENSION 8
6 A-ARMREAR LOWER RH ASSEMBLY BLACK Black (inc. 7-8) 1
6 A-ARMREAR LOWER-LH-ASSY (BLACK) (inc. 13-14) 1
7 BUSHINGA-ARM SUSPENSION 16
8 COLLARSUSPENSION BUSHING-A-ARM 8
9 NUTHEX FLG- CLINCH LOCK- M10-1.25 Z&Y (4 per pack) 14
10 SCREW CAP-HFH M10-1.25 X100 Z&Y CL10.9 4
11 A-ARMREAR UPPER-LH-ASSY (BLACK) (inc. 13-14) 1
11 A-ARMREAR UPPER-RH-ASSY (BLACK) (inc. 13-14) 1
12 GUARDBOOT-MARSH GREEN-REAR LH Green 1
12 GUARDBOOT-MARSH GREEN-REAR RH Green 1
13 SCREWBODY-SELF TAP tahos_12 X 3/4 A Z&B (5 per pack) 4
14 SCREWCAP-HFH M10X1.25X75 CL10.9 Z&Y 8
15 KITHALFSHAFT (1502-798) (inc. 16-17) 2
16 CLIPRETAINING-INBOARD 2
17 KITCV BOOT-UNIVERSAL 2
18 WRENCHSPANNER-66MM 1
19 RETAINER SPRING 2
20 SPRINGCOIL-BLACK(150LB/IN X13.3 HT) Black 2
21 ADJUSTERCAM-SPRING 2
22 SHOCK ABSORBER-REAR (inc. 2-4) 2
23 BUSHING-DOUBLE BONDED 2
24 BUSHING SKI SHOCK-.045" LIP 4
25 SLEEVEEYELET.790X.812X.635" POWDER MET (2 per pack) 2
26 WASHER5/16 X 1 1/8-1/16 -Z&Y (5 per pack) 2
27 SCREWCAP-HFH M8X1.25X20 CL8.8 Z&Y (4 per pack) 2
28 SCREWCAP-HFH M10X1.25X40 CL10.9 Z&Y (5 per pack) 1
28 SCREWCAP-HFH M10X1.25X50 CL10.9 Z&Y 1
29 TIECABLE-8.5/7.5/7.4 (10 per pack) 2
