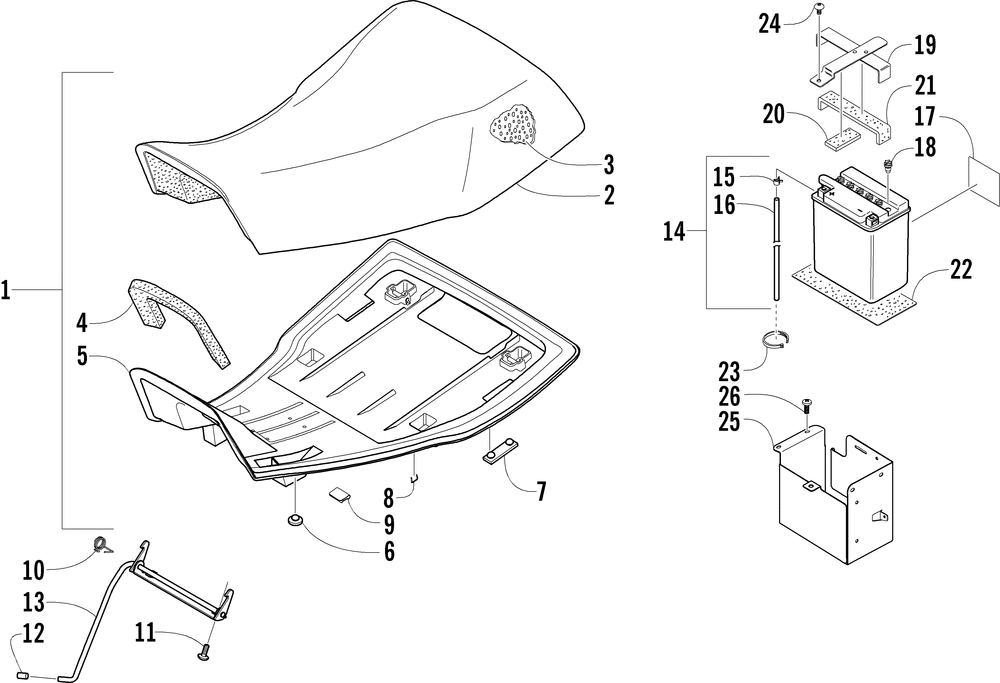

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT TBOX-ASSY (inc. 2-9) | 1 | |
| 2 | COVER SEAT | 1 | |
| 3 | FOAMSEAT (68-72ILD).48@3.3 | 1 | |
| 4 | FOAMSOUND-SEAT | 1 | |
| 5 | BASESEAT (inc. 6-7) | 1 | |
| 6 | BUMPERSEAT | 2 | |
| 7 | BUMPER SEAT | 2 | |
| 8 | STAPLE5/16L X 1/2W-20GA SS/5000 PAK-SEA | 0 | |
| 9 | SEAT LATCH | 2 | |
| 10 | SPRINGSEAT LATCH | 1 | |
| 11 | SCREWMACH-TSTRH M6X1.0X16 Z&BLK (5 per pack) | 2 | |
| 12 | CAPPROTECTOR-1/4 THREAD (5 per pack) | 1 | |
| 13 | LATCHSEAT | 1 | |
| 14 | BATTERY PKG (0645-165) (inc. 2-6) | 1 | |
| 15 | CLAMP HOSE-BATTERY VENT | 1 | |
| 16 | HOSE BATTERY VENT-550MM | 1 | |
| 17 | LABEL WARNING-BATTERY | 1 | |
| 18 | BATTERY CAP (6 per pack) | 6 | |
| 19 | STRAPBATTERY-W/PAD (inc. 7-8) | 1 | |
| 20 | PADFOAM-PSA BACK (1X2.25) | 1 | |
| 21 | PADFOAM-PSA BACK (1X4.25) | 1 | |
| 22 | PADBATTERY-LOWER | 1 | |
| 23 | TIECABLE 11.50 (10 per pack) | 1 | |
| 24 | SCREWMACH-TSTRH M6X1.0X10 Z&BLK (10 per pack) | 1 | |
| 25 | BOXBATTERY-BLACK | 1 | |
| 26 | SCREWMACH-TSTRH M6X1.0X25 Z&Y (5 per pack) | 4 |
