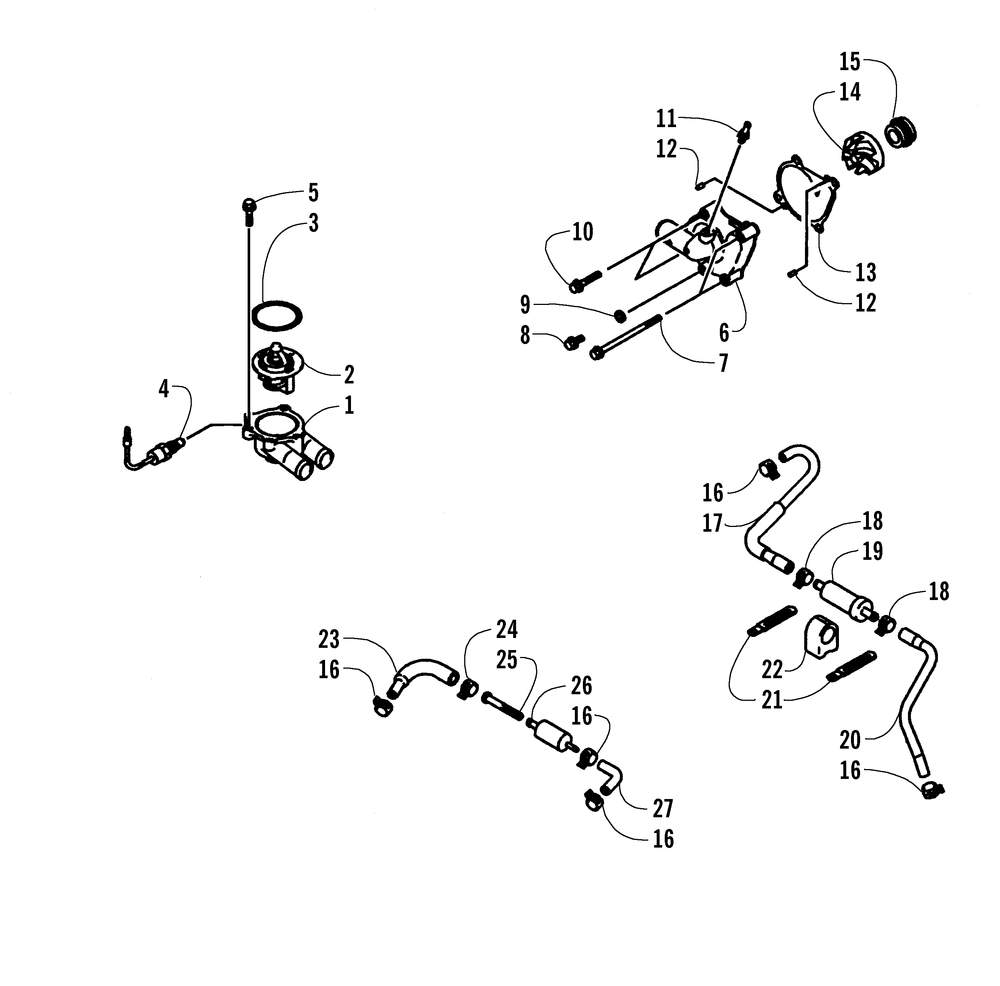

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BODYTHERMOSTAT-LOWER | 1 | |
| 2 | THERMOSTAT | 1 | |
| 3 | O-RING44.7X2.4 | 1 | |
| 4 | SWITCHSENSOR-WATER | 1 | |
| 5 | BOLTFLANGED-SMALL | 4 | |
| 6 | COVER-PUMPWATER | 1 | |
| 7 | BOLT-FLANGED-SMALL | 2 | |
| 9 | WASHER6.2X11X1 (2 per pack) | 1 | |
| 10 | BOLT-FLANGED-SMALL | 2 | |
| 11 | FITTING | 1 | |
| 12 | PIN-DOWEL4X8 | 2 | |
| 13 | GASKETWATER PUMP | 1 | |
| 14 | IMPELLER | 1 | |
| 15 | SEAL-MECHANICALWATER | 1 | |
| 16 | CLAMP | 5 | |
| 17 | HOSECOOLING-CARB-VALVE | 1 | |
| 18 | CLAMP | 2 | |
| 19 | VALVEASSY | 1 | |
| 20 | HOSECOOLING-VALVE-WATER PUMP | 1 | |
| 21 | CLAMP | 2 | |
| 22 | DAMPERVALVE | 1 | |
| 23 | HOSECOOLING | 1 | |
| 24 | CLAMP | 1 | |
| 25 | FILTERWATER | 1 | |
| 26 | BODY WATER FILTER | 1 | |
| 27 | HOSECOOLING-HEAD-FILTER | 1 |
