Arctic Cat ATV 500 FIS MANUAL TRANSMISSION (GREEN) ATV 500 FIS MANUAL TRANSMISSION (GREEN) BODY PANEL ASSEMBLY

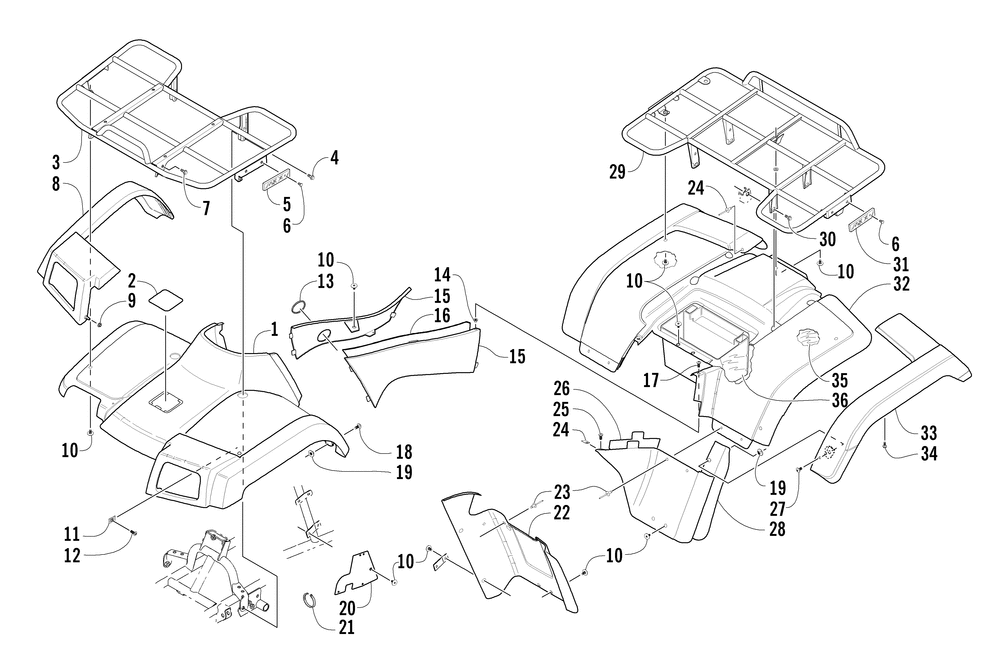

BODY PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELFENDER FRONT-RTD(RED) (inc. 2) 1
1 PANELFENDER FRONT-RTD(GRN) (inc. 2) (Green/MRP) 1
2 COVERACCESS-MARSH GREEN (W/LOGO) 1
2 COVERACCESS-RED (W/LOGO) 1
3 RACK FR-BLACK 1
4 SCREWCAP-HFH M8X1.25X16 CL8.8 Z&Y (5 per pack) 2
5 REFLECTORFRONT-YELLOW (2 per pack) 2
6 CLIP CHRISTMAS TREE (5 per pack) 8
7 SCREW CAP HFH M8-1.25 X 12 EM- BLK (4 per pack) 2
8 FLARE FRONT LH 1
8 FLARE FRONT RH 1
9 NUT STAMPED-1/4" (SD 25001 SOH) (5 per pack) 2
10 SCREWBODY - 6MM (5 per pack) 0
11 NUTSPEED M6 X 1.0 U-TYPE (5 per pack) 2
12 SCREWMACH-TSTRH M6X1.0X16 Z&BLK (5 per pack) 2
13 GROMMETGAS VALVE KNOB 1
14 NUTEXPANSION 10-32 (20 per pack) 2
15 PANEL SIDE RH-ROUTED (GRN) 1
15 PANELSIDE-LH ROUTED - RED 1
15 PANEL SIDE-LH-ROUTED GRN 1
16 SHIELDHEAT (PSA) 1
17 SCREWMACH-tahos_10-32X3/4(BLK) (4 per pack) 2
18 SCREW SHOULDER-M6-1.0 X 22 RIE BLK (4 per pack) 2
19 NUTT W/TEETH - M6 (2 per pack) 4
20 PANEL FENDER- INNER 2
21 TIECABLE-8.5/7.5/7.4 (10 per pack) 0
22 PANEL KICK-FR-RH-BLACK 1
22 PANEL KICK-FR-LH-ROUTED 1
23 RIVET PLASTIC - DH - .246X.157-.394 BLK (10 per pack) 0
24 CLIP TINERMAN -C07508-8A-4 (5 per pack) 2
25 SCREW SELF TAP-PHPNH 12-11X3/4 A Z&B (4 per pack) 2
26 SHIELDHEAT (PSA) 1
27 SCREW SHOULDER-M6-1.0 X 18-BLK (4 per pack) 2
28 FENDER EXTENSION-RH-MOLDED-BLACK 1
28 FENDER EXTENSION-LH-MOLDED-BLACK 1
29 RACKREAR-W/FENCE-BLACK 1
30 SCREWCAP-HFH M10X1.25X20 CL10.9 Z&Y (4 per pack) 4
31 REFLECTOR RED (4 per pack) 2
32 PANELRR FENDER-GREEN-ROUTED 1
32 PANELRR FENDER-RED-ROUTED 1
33 FLARE REAR RH 1
33 FLARE REAR LH 1
34 SCREWSELF TAPPING-.1875 X .75 (5 per pack) 16
35 SHIELD HEAT(PSA) 1
36 SHIELDHEAT (PSA) 1
