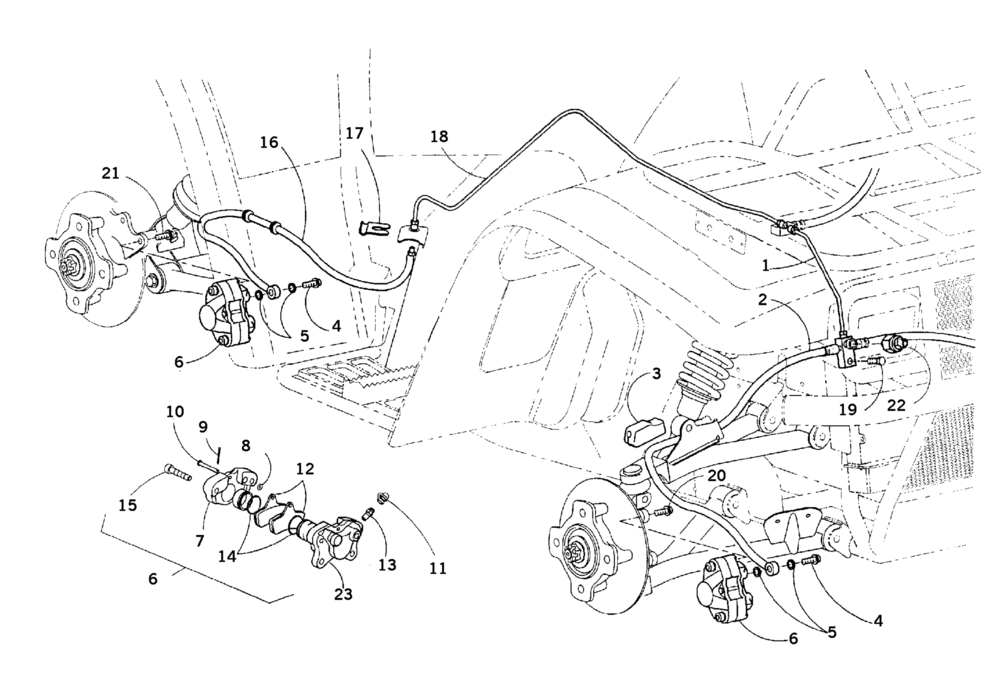

HYDRAULIC BRAKE ASSEMBLY (VIN H7YT308776 and Up)

Arctic Cat 500 4X4 (GREEN) 500 4X4 (GREEN) HYDRAULIC BRAKE ASSEMBLY (VIN H7YT308776 and Up)

№	Наименование	Кол-во
1	TUBEBRAKE LINE FR (4X4)	1
2	HOSEBRAKE-FR W/SWITCH FITTING (4X4)	1
3	BLOCKMOUNT-BRAKE HOSE	2
4	BOLTBANJO FITTING	3
5	WASHERCRUSH (5 per pack)	6
6	CALIPERBRAKE-RH (inc. 7-16) Front Right	1
6	CALIPERBRAKE-LH (inc. 7-16) Front Left and Rear Right	2
8	O-RING HYD BRAKE CALIPER (2 per pack)	3
9	PIN COTTER -1/16" X 1/2" (2 per pack)	3
10	PINHYD BRAKE CALIPER-(OL)	3
11	CAPBLEEDER FITTING - HYD BRAKE	3
12	PAD BRAKE (2 per pack)	6
13	BLEEDERCALIPER (FC)	3
14	O-RING-HYD BRAKE CALIPER-(OL) (4 per pack)	6
15	SCREW CAP-HSH-HYD BRAKE(OL)	12
16	HOSEBRAKE - REAR	1
17	CLIP BRAKE LINE-PLATED	1
18	TUBEBRAKE LINE-RR	1
19	SCREWMACH-TSTRH M6X1.0X25 Z&Y (5 per pack)	1
20	SCREWCAP-HFH M8X1.25X25 CL8.8 Z&Y	4
21	SCREWCAP-HFH M8X1.25X20 CL8.8 Z&Y (4 per pack)	2
22	SWITCHBRAKE PRESSURE	1
