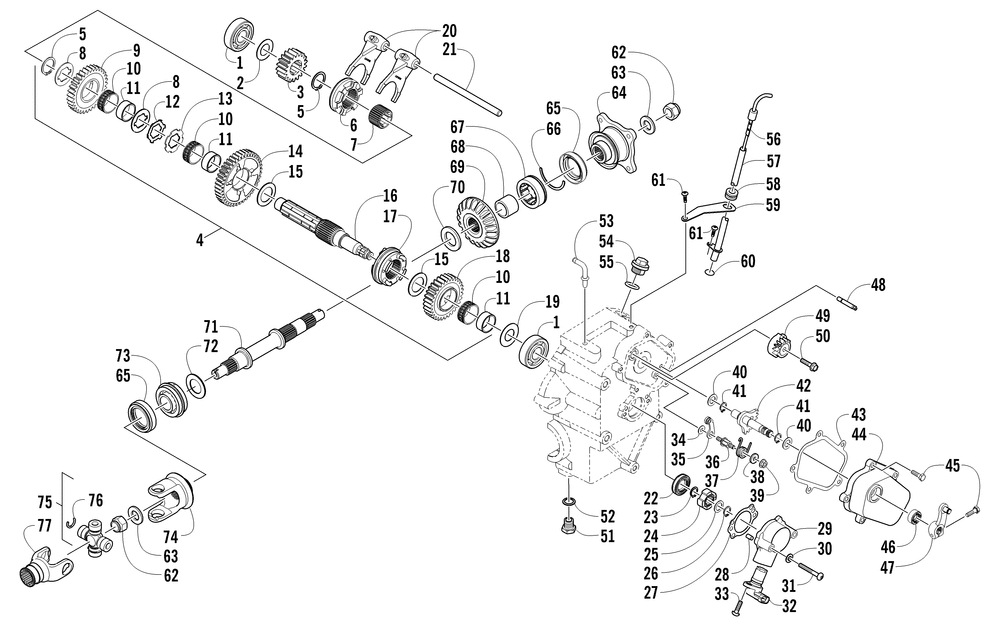

Arctic Cat ATV 700 DIESEL GREEN ATV 700 DIESEL GREEN TRANSMISSION LEFT-SIDE ASSEMBLY
TRANSMISSION LEFT-SIDE ASSEMBLY
№ Наименование Примечание Кол-во
1 BEARINGCONRAD-6304 2
2 WASHERTHRUST SECONDARY TRANSMISSION 1
3 GEARDRV-NO.2 (18 TOOTH) (RB: 0822-140) (18T) 1
4 COUNTERSHAFT ASSY (NFG) (inc. 5-18) 1
5 RING EXTERNAL RETAINING - DSH-25 2
6 DOG REVERSE GEAR 1
7 INSERTGEAR 1
8 WASHER SECONDARY TRANSMISSION 2
9 GEAR REVERSE DRIVEN 1
10 BEARING 3
11 BUSHING 3
12 WASHER LOCK SECONDARY TRANSMISSION 1
13 WASHER SECONDARY TRANSMISSION 1
14 GEARDRIVEN-LOW (40T) 1
15 SHIMDRIVE GEAR SPACER 2
16 COUNTERSHAFT 1
17 GEAR DOG SLIDING 1
18 GEARDRIVEN-HIGH (30T) 1
19 WASHER STEEL 20 x 40 x 1 1
20 FORKSHIFT 2
21 SHAFT SHIFT FORK 1
22 SEAL COUNTER SHAFT RH 1
23 RING EXTERNAL RETAINING - DSH-17 1
24 TRIGGER SPEEDO SENSOR 1
25 WASHER THRUST 1
26 RINGEXTERNAL RETAINING - DSH-13 1
27 GASKETODOMETER DRIVE 1
28 PIN SOLID DOWEL (6 X12) 2
29 HOUSING SPEEDO SENSOR 1
30 SEALFASTENER 2
31 SCREWMACH-TSPNH M6X1.0X45 CL8.8 BLK (10 per pack) 2
32 SENSORSPEEDO-HALL EFFECT 1
33 SCREWMACH-TSPNH M6X1.0X20 CL8.8 BLK 1
34 WASHER STEEL 6 x 14 x .9 1
35 STOPPER SWING ARM CAM ASSY 1
36 SUPPORT CAM STOPPER 1
37 SPRINGTORSIONDETENT ARM 1
38 WASHER STEEL 6 x 16 x 2.5 1
39 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 1
40 WASHER STEEL 12 x 20 x .9 2
41 RING EXTERNAL RETAINING - DSH-12 2
42 SHAFT SUB-GEAR SHIFT 1
43 GASKETCOVER-SELECTOR 1
44 COVERSELECTORGEARBOX-MACH 1
45 SCREWCAP-HH M6X1.0X20 CL10.9 Z&BL 6
46 SEAL SUB-GEAR SHIFT 1
47 ARMGEAR SELECT-ASSY 1
48 STOPSPRING-SELECTOR 1
49 DETENT CAMGEAR SHIFT 1
50 SCREWCAP HFH M6 x 1 x 25 1
51 PLUG DRAIN MAGNETIC 1
52 GASKET METAL COMPRESSION 1
53 BARB 90 DEGREE 1
54 PLUG FILL (inc. 12) 1
55 O-RING GEARCASE20 X 2.5MM 1
56 DIPSTICK 1
57 TUBEDIPSTICK-BLACK 1
58 GROMMETRUBBER-12.7X23.8125 (8 per pack) 1
59 BRKTDIPSTICK TUBE - PTD 1
60 O-RING12.7 X 1.78 1
61 SCREWSELF TAP-TSPH M6-1.0X15 (2 per pack) 2
62 NUTHEX SHOULDER M16X1.5 2
63 WASHER STEEL 16.3 x 30 x 3 2
64 FLANGE OUTPUT JOINT - REAR ASSEMBLY 1
65 SEALOIL-DRIVEN SHAFT 2
66 RING DRIVEN BEARING 1
67 BEARING DRIVEN GEAR 1
68 SLEEVEBEARING 1
69 GEARBEVEL(20T)-SECONDARY DRIVEN 1
70 SHIM25 X 40 X 3.4 1
71 SHAFTOUTPUT-SECONDARY 1
72 SHIM 25 x 34 x 1.05 0
72 SHIM 25 x 34 x .95 0
72 SHIM. 25 x 34 x .90 0
72 SHIM 25 X 34 X 0.35 MM 0
72 SHIM 25 x 34 x .30 0
72 SHIM 25 x 34 x .25 0
72 SHIM 25 x 34 x 1.00 0
72 SHIM 25 x 34 x 1.15 0
72 SHIM 25 x 34 x 1.10 0
73 BEARING DRIVEN SHAFT 1
75 CROSS UNIVERSAL(20mm)-SET (inc. 3) 1
76 RINGRETAINING-CROSS (4 per pack) 4
77 YOKEPROPELLER SHAFT-ASSY 1
