Arctic Cat ATV 300 2X4 UTILITY RED ATV 300 2X4 UTILITY RED TRANSMISSION CASE ASSEMBLY

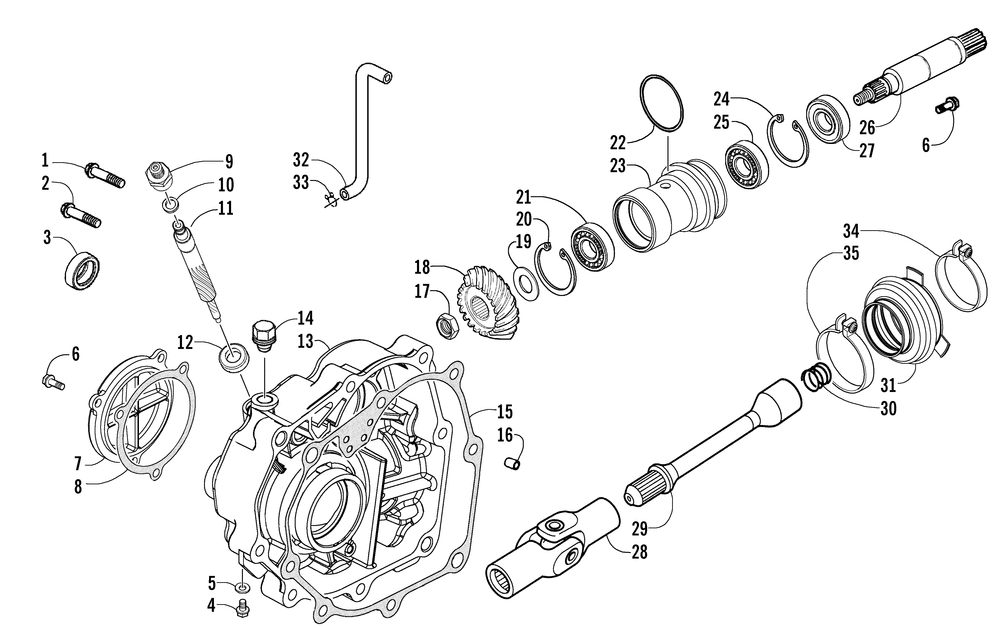

TRANSMISSION CASE ASSEMBLY
№ Наименование Примечание Кол-во
1 BOLT FLANGE 8*40 6
2 BOLT FLANGE 8*45 (GOLDEN) (5 per pack) 2
3 OIL SEAL 14*28*7 1
4 BOLT FLANGE 8*12 1
5 WASHER 8MM 1
6 BOLT FLANGE SH 6*20 (5 per pack) 7
7 CAP MISSION 1
8 GASKET MISSION COVER 1
9 BOLT TACHOMETER 1
10 THRUST WASHER 8MM 1
11 GEAR TACHOMETER 1
12 OIL SEAL 12*18*3 2
13 CASE COMP MISSION (inc. one No. 12) 1
14 BOLT DRAIN PLUG SPECIAL (inc. 16) 1
15 GASKET MISSION CASE 1
16 PIN DOWEL 10*16 (4 per pack) 2
17 NUT HEX 16MM 1
18 GEAR BEVEL DRIVEN 1
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.6 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.65 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.7 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.75 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.8 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.85 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.9 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 0.95 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.0 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.05 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.1 0
19 SHIM DRIVEN BEVEL GEAR 20.2 x 30 x 1.15 0
20 CIR CLIP IN 56 1
21 BRG BALL RADIAL 63/22 1
22 O-RING 58*4*3.1 1
23 CASE FINAL SHAFT 1
24 CIR CLIP IN 58 1
25 BRG BALL RADIAL 62/28 1
26 SHAFT FINAL 1
27 OIL SEAL 28*59*7 1
28 JOINT YORK 1
29 SHAFT PROPELLER 1
30 SPG PROPELLER SHAFT 1
31 BOOT JOINT 1
32 TUBE MISSION BREATHER (inc. 33) 1
33 CLIP B14.5 TUBE 1
34 BAND 90 CONNECTING TUBE 1
35 BA 66 BOOT 1
