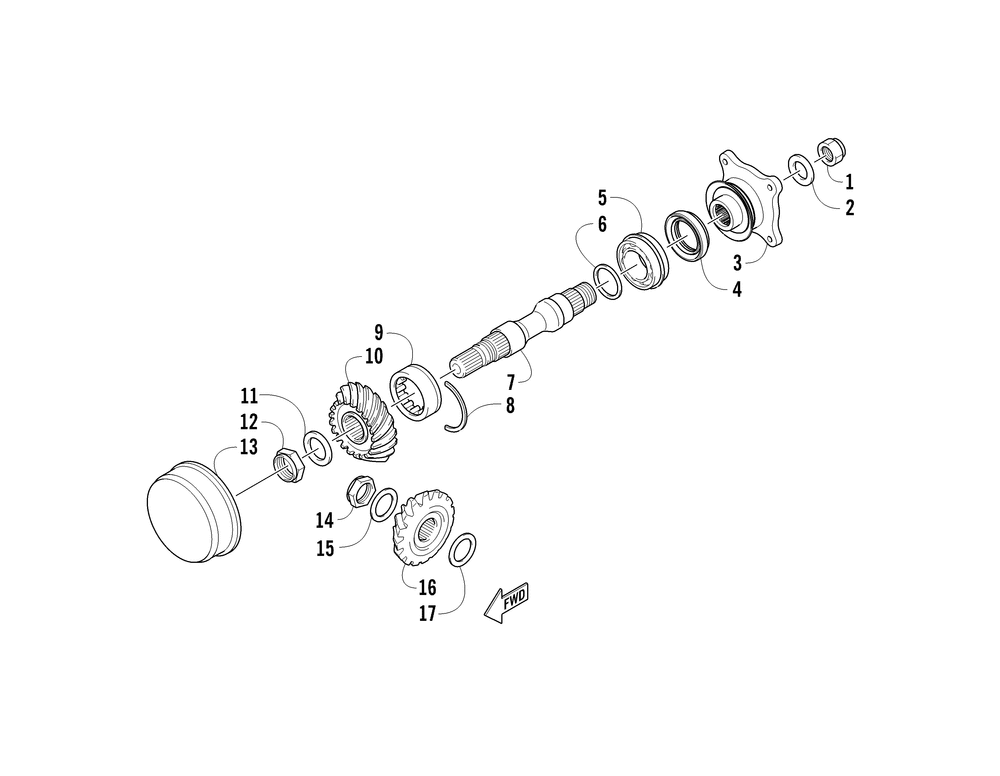

SECONDARY DRIVE ASSEMBLY

№	Наименование	Кол-во
1	NUT	1
2	WASHER 16mm	1
3	FLANGE OUTPUT JOINT - REAR	1
4	SEALOIL-REAR SECONDARY DRIVEN SHAFT	1
5	BEARINGCONRAD-W/SNAPRING	1
6	SHIM H DRIVEN BEVEL GEAR T=0.95MM	0
6	SHIM K DRIVEN BEVEL GEAR T=1.1MM	0
6	SHIM L DRIVEN BEVEL GEAR T=1.15MM	0
6	SHIM J DRIVEN BEVEL GEAR T=1.05MM	0
6	SHIM I DRIVEN BEVEL GEAR T=1.0MM	0
6	SHIM A DRIVEN BEVEL GEAR T=0.6MM	0
6	SHIM B DRIVEN BEVEL GEAR T=0.65MM	0
6	SHIM C DRIVEN BEVEL GEAR T=0.7MM	0
6	SHIM D DRIVEN BEVEL GEAR T=0.75MM	0
6	SHIM E DRIVEN BEVEL GEAR T=0.8MM	0
6	SHIM F DRIVEN BEVEL GEAR T=0.85MM	0
6	SHIM G DRIVEN BEVEL GEAR T=0.9MM	0
6	SHIM M DRIVEN BEVEL GEAR T=1.2MM	0
6	SHIM N DRIVEN BEVEL GEAR T=1.25MM	0
7	SHAFT SECONDARY DRIVEN - REAR	1
8	C-RING-DRIVEN BEARING	1
9	BEARINGNEEDLE ROLLER-W/CUTOUT	1
10	GEAR SECONDARY DRIVEN	1
11	WASHER22.2X35.8X2.5	1
12	NUT SEC DRIVEN GEAR22MM	1
13	PLUG SECONDARY DRIVEN	1
14	NUT HEX-COLLLARD (M20X1.5)	1
15	WASHER THRUST 20MM	1
16	GEAR SECONDARY DRIVE	1
17	SHIM DRIVEN BEVEL GEAR T=0.60MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.65MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.70MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.75MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.80MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.90MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.95MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.00MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.05MM	0
17	SHIM DRIVEN BEVEL GEAR T=0.85MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.15MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.20MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.25MM	0
17	SHIM DRIVEN BEVEL GEAR T=1.10MM	0
