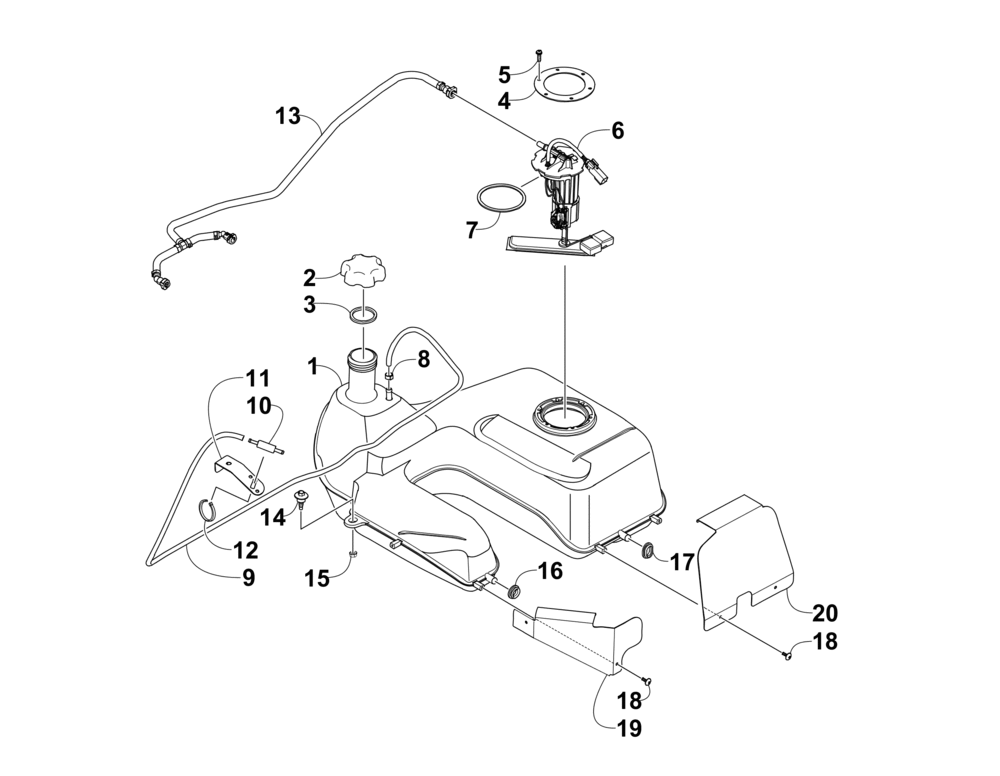

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANKFUEL-ASSEMBLY (SERVICE PARTS) (inc. 2-5) | 1 | |
| 2 | CAPFUEL TANK (inc. 3) | 1 | |
| 3 | SEALGAS CAP | 1 | |
| 4 | MOUNTFUEL PUMP | 1 | |
| 5 | SCREWTSPH-THRD FORM M5X0.8X20MM SEMS (6 per pack) | 6 | |
| 6 | FUEL PUMP KIT (inc. 7-8) | 1 | |
| 7 | SEALFUEL-PUMP | 1 | |
| 8 | CLAMPSNAP-10 MM | 1 | |
| 9 | HOSEFUEL-25 FT (0419-272 CTL) | 0 | |
| 10 | FILTERFUEL-INLINE (2 per pack) | 1 | |
| 11 | BRACKETFUEL FILTER | 1 | |
| 12 | TIECABLE-8.5/7.5/7.4 (10 per pack) | 0 | |
| 13 | HOSEFUEL-ASSEMBLY | 1 | |
| 14 | SCREWFUEL TANK (4 per pack) | 2 | |
| 15 | NUTHEX M6 Z&Y-SEMS (W/WASHER) (5 per pack) | 1 | |
| 16 | GROMMET FUEL TANK | 1 | |
| 17 | GROMMET FUEL TANK | 1 | |
| 18 | SCREWSELF TAP-TSTH 10-12X1/2 WO/GP (10 per pack) | 4 | |
| 19 | SHIELDFUEL TANK-FRONT | 1 | |
| 20 | SHIELDFUEL TANK-REAR | 1 |
