Arctic Cat ATV 700 H1 EFI MUD PRO ORANGE-BLACK ATV 700 H1 EFI MUD PRO ORANGE-BLACK SECONDARY TRANSMISSION ASSEMBLY (UP TO ENGINE SERIAL NO. 0264069)

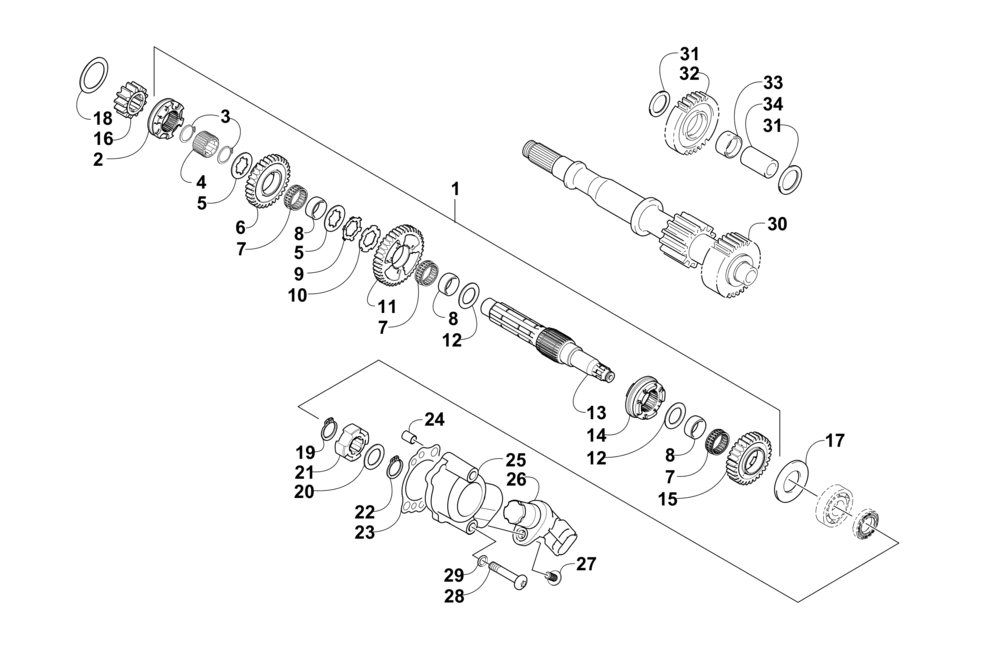

SECONDARY TRANSMISSION ASSEMBLY (UP TO ENGINE SERIAL NO. 0264069)
№ Наименование Примечание Кол-во
1 COUNTERSHAFT ASSY (NFG) (inc. 5-18) 1
2 DOG REVERSE GEAR 1
3 RING EXTERNAL RETAINING - DSH-25 2
4 INSERTGEAR 1
5 WASHER SECONDARY TRANSMISSION 2
6 GEAR REVERSE DRIVEN 1
7 BEARING 3
8 BUSHING 3
9 WASHER SECONDARY TRANSMISSION 1
10 WASHER LOCK SECONDARY TRANSMISSION 1
11 GEARDRIVEN-LOW (40T) 1
12 SHIMDRIVE GEAR SPACER 2
13 COUNTERSHAFT 1
14 GEAR DOG SLIDING 1
15 GEARDRIVEN-HIGH (30T) 1
16 GEARSPUR-DRIVE-NO.2 (13T CUT) 1
17 WASHER STEEL 20 x 40 x 1 1
18 WASHERTHRUST SECONDARY TRANSMISSION 1
19 RING EXTERNAL RETAINING - DSH-17 1
20 WASHER THRUST 1
21 TRIGGER SPEEDO SENSOR 1
22 RINGEXTERNAL RETAINING - DSH-13 1
23 GASKETODOMETER DRIVE 1
24 PIN SOLID DOWEL (6 X12) 2
25 HOUSING SPEEDO SENSOR 1
26 SENSORSPEEDO- MX 1
27 SCREWMACH-TSPNH M6X1.0X20 CL8.8 BLK 1
28 SCREWMACH-TSPNH M6X1.0X45 CL8.8 BLK (10 per pack) 2
29 SEALFASTENER 2
30 DRIVESHAFT 1
31 WASHERTHRUST SECONDARY TRANSMISSION 2
32 GEAR REVERSE IDLE 1
33 BUSHING REVERSE IDLE GEAR 1
34 SHAFT REVERSE IDLE 1
