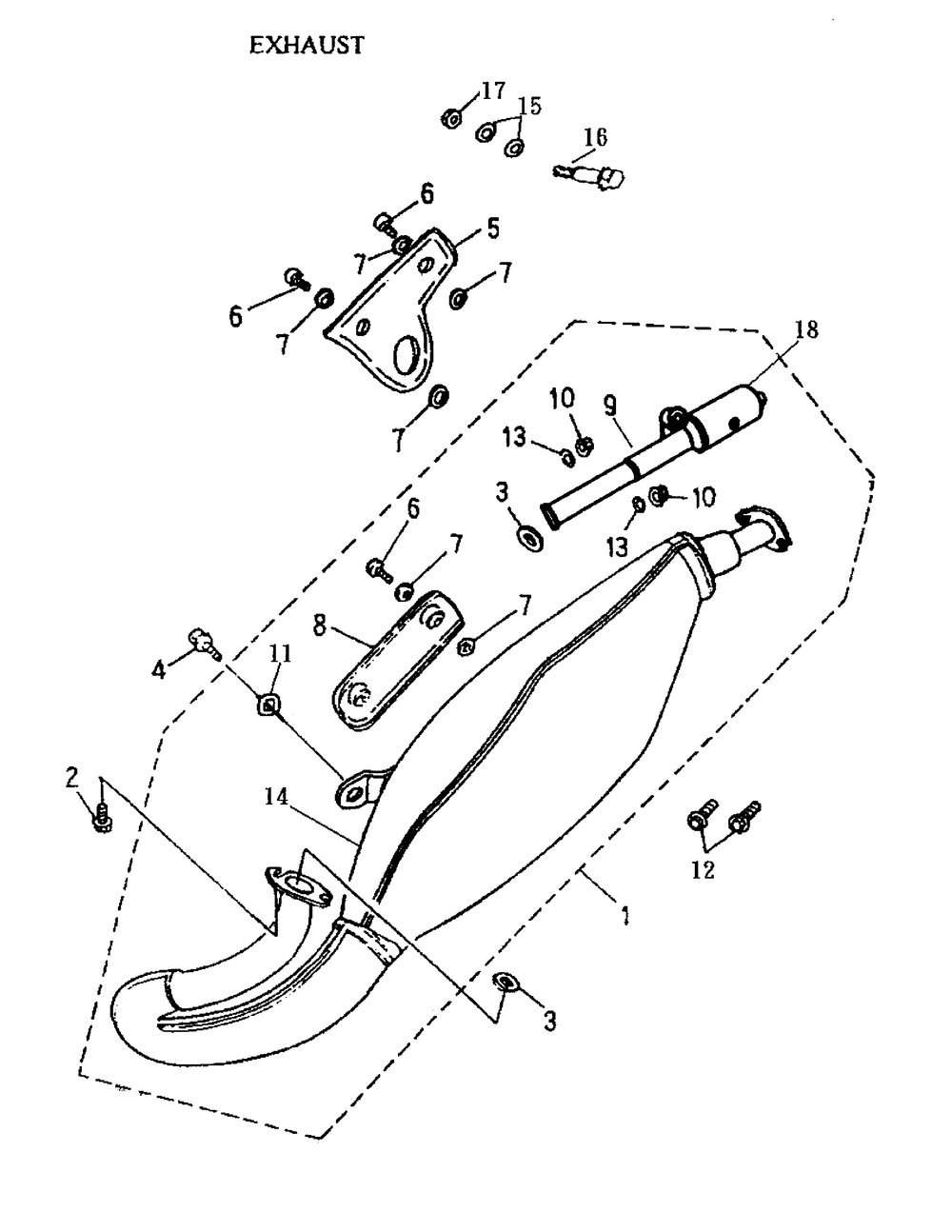

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | EXHAUST PIPE ASSY. | 1 | |
| 2 | HEXAGONAL HEAD PHILLIPS BOLT M6X18 | 2 | |
| 3 | EXHAUST PIPE GASKET | 2 | |
| 4 | HEXAGONAL WASHER FACE BOLT M8X25 | 1 | |
| 5 | INSOLATOR | 1 | |
| 6 | HEXAGONAL WASHER FACE BOLT M6X12 | 4 | |
| 7 | MUFFLER SHROUD PACKING | 8 | |
| 8 | MUFFLER SHROUD | 1 | |
| 9 | TAIL OF MUFFLER | 1 | |
| 10 | Hex. Flanged Elastic Nut M6 | 2 | |
| 11 | SPRING WASHER | 1 | |
| 12 | HEXAGONAL WASHER FACE BOLT M6X25 | 2 | |
| 13 | PLAIN WASHER 6 X 14 X 2 | 2 | |
| 14 | EXHAUST PIPE FRONT | 1 | |
| 15 | PLAIN WASHER | 2 | |
| 16 | HEXAGONAL WASHER FACE BOLT M10X48 | 1 | |
| 17 | NYLON NUT M10 | 1 | |
| 18 | SPARK ARRESTER | 1 |
