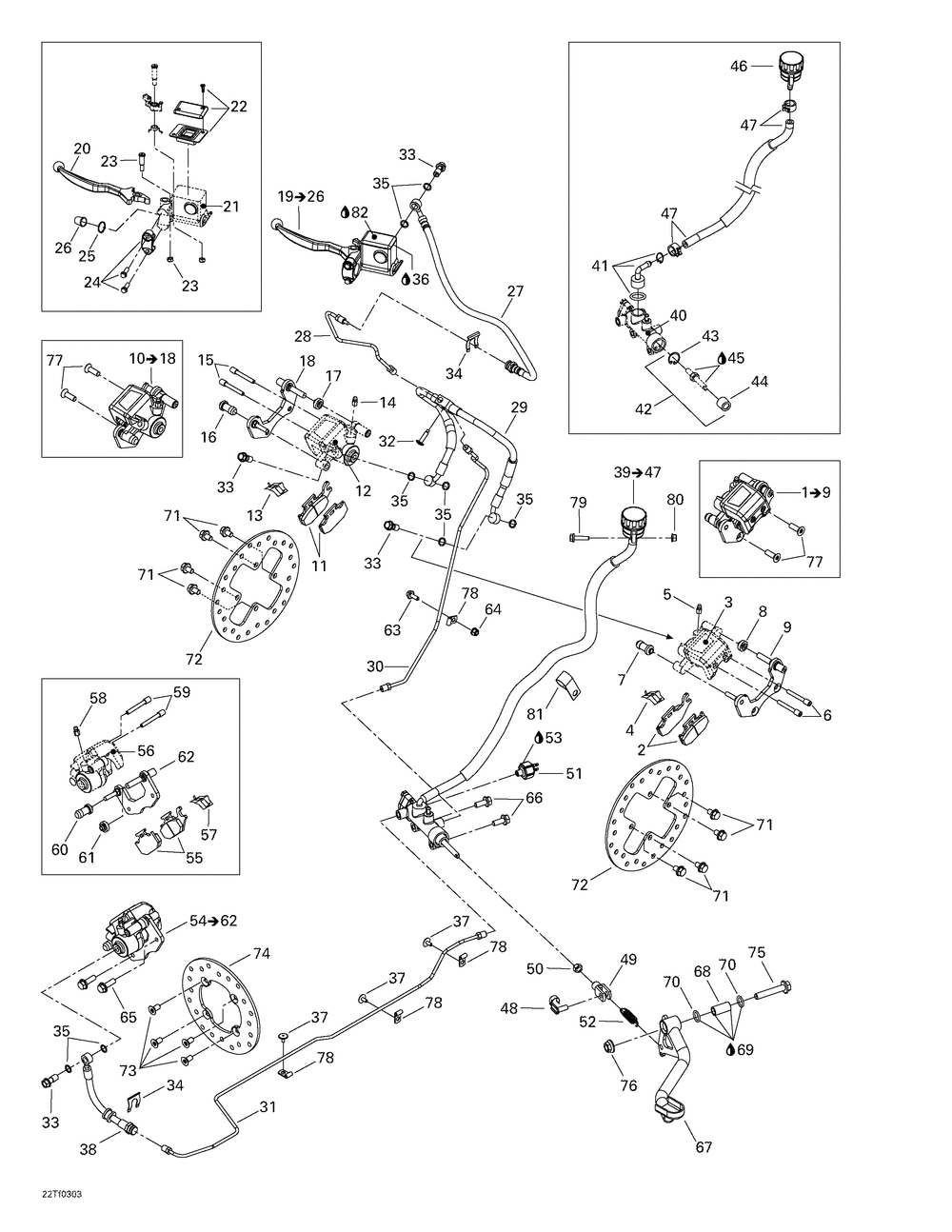

Can-Am Outlander 400 Outlander 400 06- Hydraulic Brake
06- Hydraulic Brake
№ Наименование Примечание Кол-во
LIQUIDE FREIN *BRAKE FLUID (12.000 per pack) 0
1 RH CALIPER Includes 1 - 9. 1
2 BRAKE PAD KIT 1
4 RESSORT *SPRING 2
5 Bleeding Screw 2
6 Pin Set (2) 2
7 COMPRESSION BOOT 2
8 COMPRESSION BOOT 2
9 LH CALIPER SUPPORT 1
10 LH CALIPER Includes 10 - 18. 1
11 BRAKE PAD KIT 1
19 FRONT MASTER CYLINDER Includes 19 to 27 1
20 LEVER ARM 1
21 PISTON KIT 1
22 CAP SET 1
23 BRAKE LEVER BOLT KIT 1
24 BRACKET KIT 1
25 CIRCLIP (5.000 per pack) 1
26 COMPRESSION BOOT 1
27 BOYAU DE FREIN *BRAKE LINE 1
28 TUBE VERTICAL *TUBE-VERTICAL 1
29 BOYAU DE FREIN *BRAKE LINE 1
30 TUBE D UNOIN *TUBE-UNION 1
31 TUBE RIGIDE *TUBE-RIGID 1
32 TORX SCREW M6 X 25 (2.000 per pack) 1
33 BANJO BOLT (10.000 per pack) 4
34 ATTACHE BOYAU *HOSE-RETAINER 2
35 Washer 8
36 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
37 Pop Rivet 3/16" 3
38 BOYAU DE FREIN *BRAKE LINE 1
39 REAR MASTER CYLINDER Includes 37 to 45 1
40 PISTON SET 1
41 PUSHER BRACKET HOSE CONNECTOR 1
42 REAR MASTER CYLINDER ASS Y Includes 37 To 44 1
43 CIRCLIP (5.000 per pack) 1
44 COMPRESSION BOOT 1
46 OIL TANK BRAKE FLUID RESERVOIR 1
47 OIL HOUSING HOSE 1
48 PIN KIT 1
49 Yoke 1
50 Hex. Nut M8 1
51 INTERRUPTEUR *BRAKE SWITCH 1
52 RESSORT PEDALE *SPRING PEDAL BR. 1
53 LOCTITE PIPE SEALANT 250 ML 0
54 REAR CALIPER Includes 48 - 56 1
55 BRAKE PAD KIT 1
56 PISTON SET 1
62 LH CALIPER SUPPORT 1
63 Hex. Flanged Screw M6 X 16 1
64 Hex. Flanged Elastic Nut M6 1
65 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 2
66 Hex. Flanged Screw M8 X 20, Scotch Grip 2
67 BRAKE PEDAL 1
68 SPACER 1
69 SYNTHETIC GREASE 400 G 0
70 O-RING (10.000 per pack) 2
71 Hex. Flanged Screw M8 X 12, Scotch Grip 8
72 DISK BRAKE 2
73 Torx Screw M8 X 16, Scotch Grip 4
74 DISK BRAKE 1
75 HEX. FLANGED SCREW M10 X 55 (5.000 per pack) 1
76 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 1
78 ATTACHE COLLIER*OPEN CLAMP (5.000 per pack) 4
79 Hex. Flanged Screw M6 X 25 1
