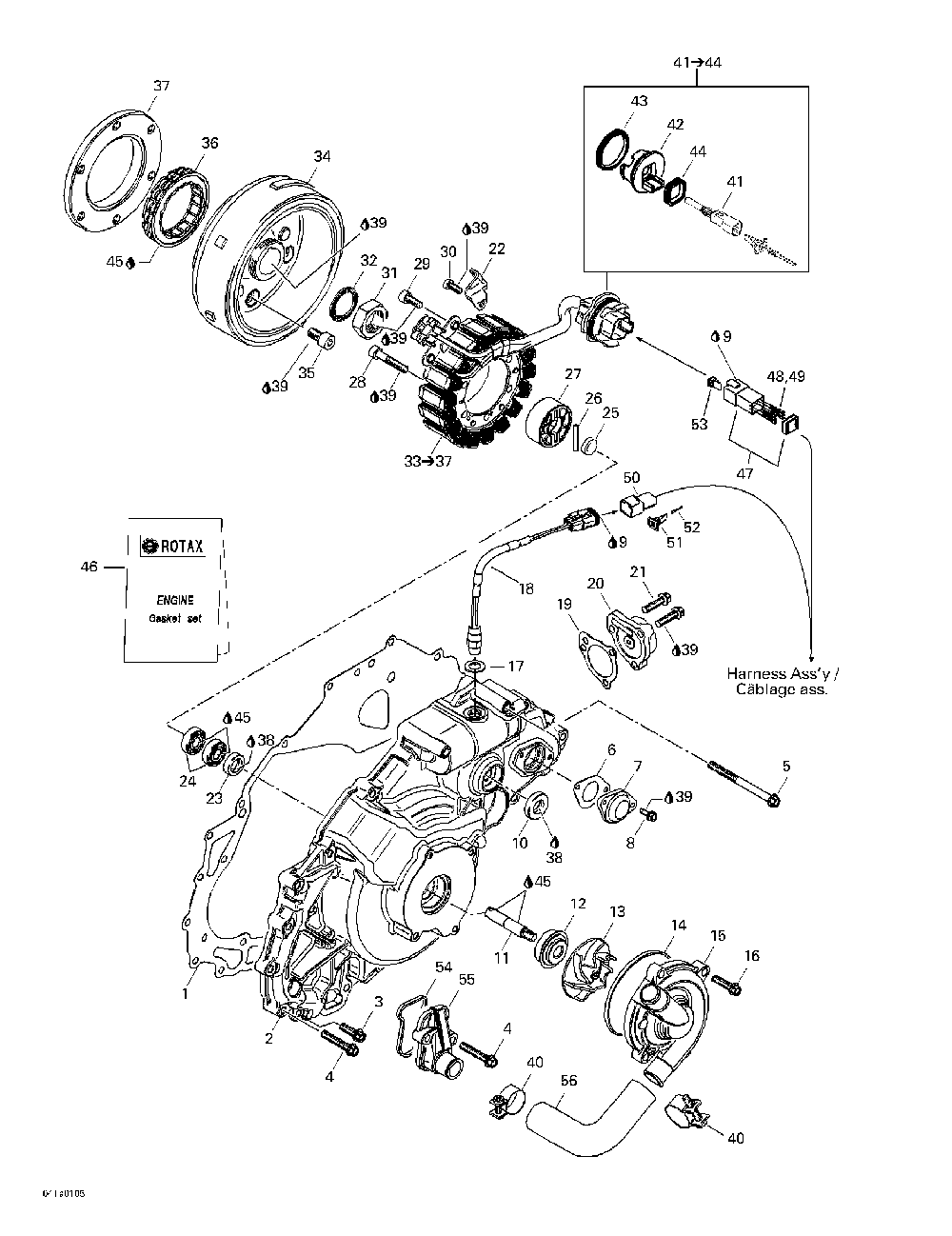

03- Ignition And Water Pump

№	Наименование	Кол-во
1	JOINT ETANCHE *GASKET-IGNIT.COVER	1
2	COUVERCLE IGNIT*COVER-IGNITION	1
3	HEX. FLANGED SCREW M6 X 20	1
4	HEX. FLANGED SCREW M6 X 35	16
5	VIS HEX.FLASQUE*SCREW-HEX.FLAN	2
6	JOINT ETANCHE *GASKET	1
7	COUVERCLE *COVER-PLUG	1
8	SOCKET HEAD SCREW M4 X 12 (5.000 per pack)	2
9	DIELECTRIC GREASE 150 G	0
10	OIL SEAL	1
11	WATER PUMP SHAFT	1
12	ROTARY SEAL	1
13	WATER IMPELLER	1
14	RUBBER RING	1
15	WATER PUMP HOUSING	1
16	HEX. SCREW M6 X 25	4
17	ANNEAU ETANCHE *RING-GASKET	1
18	INTER.A BILLE *SWITCH-BALL	1
19	JOINT *GASKET-COVER HYDRAULIC	1
20	HYDRAULIC COVER	1
22	CABLE CLAMP	1
23	OIL SEAL	1
24	BALL BEARING	2
25	DISTANCE SLEEVE	1
26	NEEDLE PIN	1
27	PAWL	1
29	HEX. FLANGED SCREW M6 X 16	2
30	HEX. FLANGED SCREW M5 X 11 MX Z x 440 LC. (10.000 per pack)	1
31	HEX. NUT M22	1
32	SERRATED WASHER 22 MM	1
33	BOBINE GENERATR*STATOR/TRIGGER ASSY. Includes 33 - 37.	1
35	SOCKET HEAD SCREW M8 X 16 (10.000 per pack)	6
36	SPRAG CLUTCH	1
37	CLUTCH SPRAG HOUSING	1
38	DOW CORNING 111*DOW CORNING 111	0
39	LOCTITE 243 10 ML	0
40	BRIDE SERRAGE *CLAMP-HOSE 27MM	2
41	BLOC 6 CIRC.FEM*HOUSING-TAB	1
41	RACCORD *CONNECTOR Includes 48 to 52	1
42	RACCORD *CONNECTOR	1
43	JOINT ETANCHE *GASKET	1
44	JOINT ETANCHE *GASKET	1
46	ENS.JOINT ETANC*SET-GASKET	0
47	MALE CONNECTOR 6 CIRCUITS	1
48	Female Terminal	3
49	FEMALE TERMINAL	3
52	MALE TERMINAL (10.000 per pack)	2
53	MALE LOCK 6 CIRCUITS (5.000 per pack)	1
54	SEALING RING	1
55	INLET FITTING	1
56	PROFILED TUBE	1
