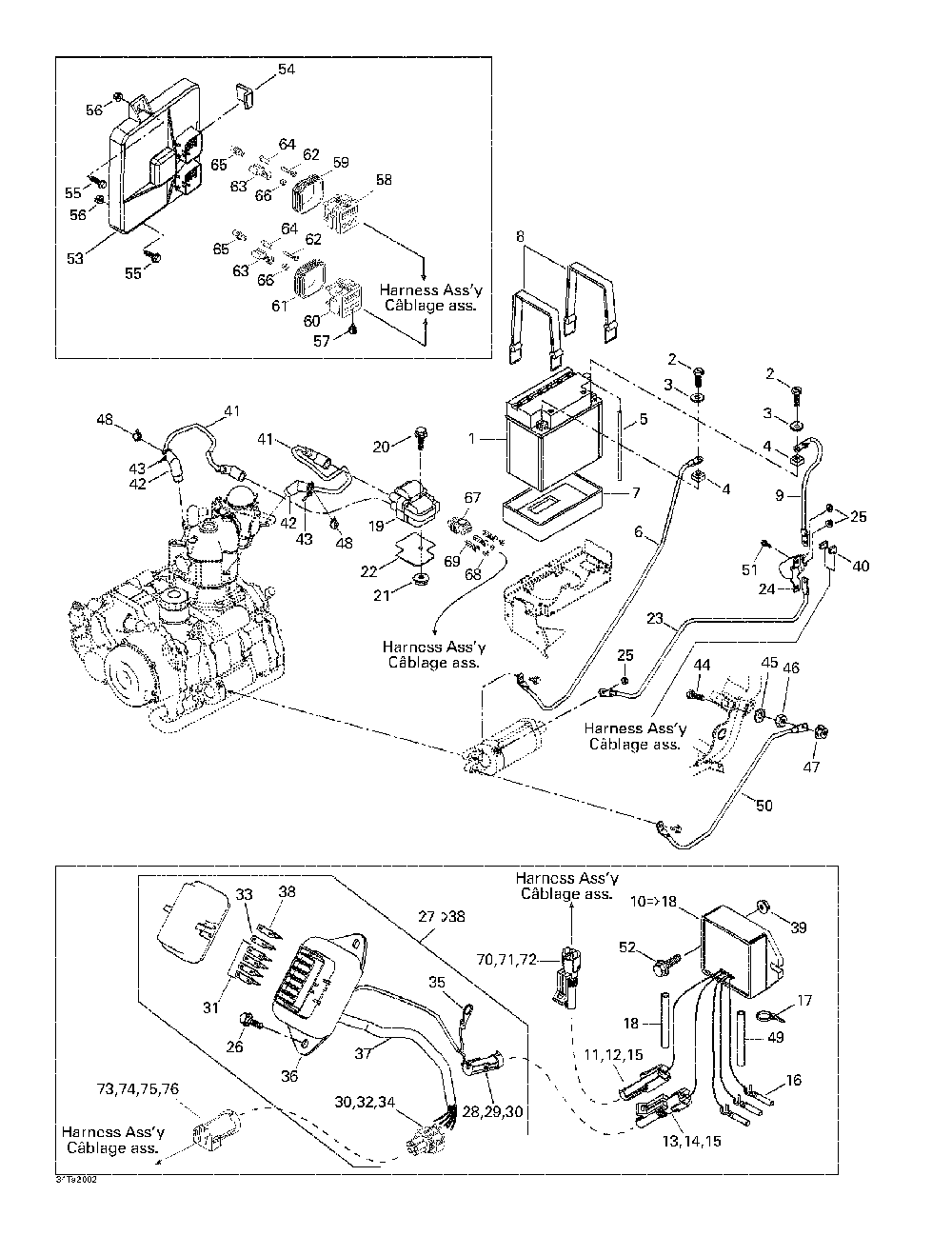

10- Battery And Electrical Accessories

Can-Am Traxter, 7407/7408 Traxter, 7407/7408 10- Battery And Electrical Accessories

№	Наименование	Кол-во
	WIRE SEAL (10.000 per pack)	0
1	BATTERIE YB16CLB *BATTERY (DRY)	1
2	HEX. SCREW M6 X 16 (10.000 per pack)	2
3	FLAT WASHER 6 MM (5.000 per pack)	2
4	HEX. NUT M6 (10.000 per pack)	2
5	POLYURETHANE HOSE 5.2 MM (30.000 per pack)	1
6	CABLE MASSE *CABLE-GROUND	1
7	LOWER BATTERY PAD	1
8	RETAINER STRAP	2
10	VOLT REGULATOR ASS Y Includes 18 to 26	1
11	Male Terminal	0
12	BLOC 1 CIRC.FEM*HOUSING-TAB	1
13	FEMALE TERMINAL (5.000 per pack)	0
14	MALE HOUSING 1 CIRCUIT	1
15	Wire Seal	0
16	FEMALE TERMINAL	0
17	Tie-Rap 94 mm	0
18	LOW TEMPERATURE VINYL TUBING No DPM	0
19	IGNITION COIL	1
20	FLANGED HEX. SCREW M6 X 45 (25.000 per pack)	1
21	Hex. Flanged Elastic Nut M6	1
22	INSULATOR PAD	1
23	STARTER POSITIVE CABLE	1
24	STARTER RELAY ELECTRIC STARTER	1
25	Hex. Elastic Stop Nut M6	3
26	HEX. FLANGED SCREW M6 X 16 (10.000 per pack)	2
27	FUSE HOLDER ASS Y Includes 27 - 38.	1
28	Male Terminal	0
31	FUSE 15 AMPERES (5.000 per pack)	4
32	FEMALE TERMINAL	0
33	FUSE 20 AMPERES (5.000 per pack)	1
34	BLOC 5 CIRC.FEM*HOUSING-TAB	1
35	OPEN BARREL (10.000 per pack)	0
36	FUSE HOLDER ASS Y	1
37	Tubing 6 mm (3.000 per pack)	0
38	FUSE 30 AMPERES (5.000 per pack)	1
40	FEMALE TERMINAL (10.000 per pack)	0
41	ENS FIL BOUGIE *WIRE-SPARK KIT Includes 54 to 57	2
42	SPARK PLUG CONNECTOR	2
44	HEX. SCREW M6 X 25 (10.000 per pack)	1
45	EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack)	1
46	Hex. Nut M6	1
48	DIELECTRIC GREASE 150 G	0
52	Hex. Flanged Screw M6 X 20	2
53	MODULE *MODULE	1
54	MODULE PROTECTOR SE5	1
57	(ORMD) DEOXIT AEROSOL *	0
58	MALE TERMINAL HOUSING 26 CIRCUITS	1
59	WIRE SEAL	0
60	MALE TERMINAL HOUSING 26 CIRCUITS	1
62	FEMALE TERMINAL (5.000 per pack)	0
63	FEMALE TERMINAL (5.000 per pack)	0
64	BOUCHON *PLUG	0
65	SEALING CAP (10.000 per pack)	0
66	WIRE SEAL (5.000 per pack)	0
67	MALE HOUSING 3 CIRCUITS	1
68	Wire Seal	0
69	FEMALE TERMINAL (10.000 per pack)	0
73	MALE HOUSING 5 CIRCUITS	1
