Can-Am Traxter, 7415/7416 Traxter, 7415/7416 05- Drive System Rear

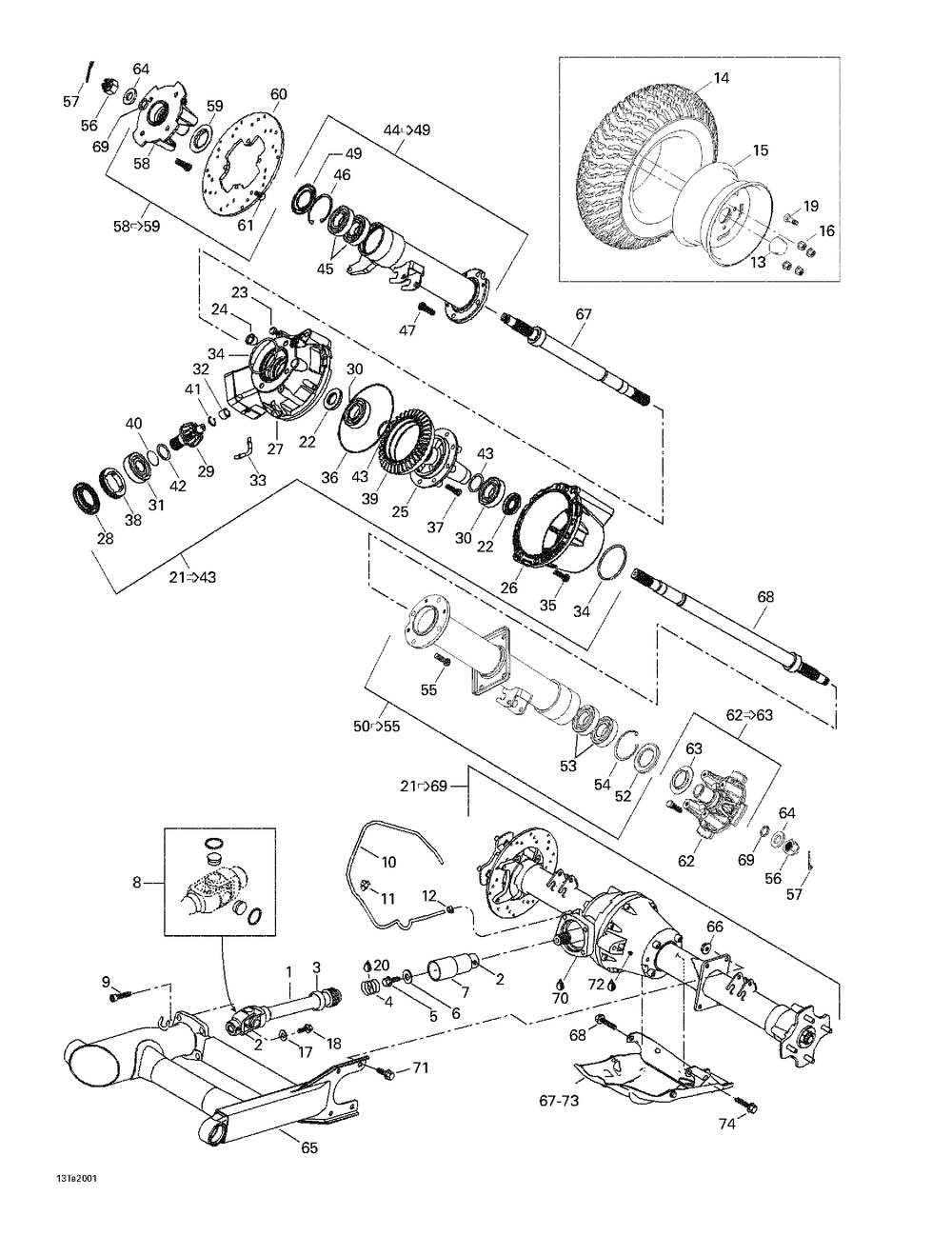

05- Drive System Rear
№ Наименование Примечание Кол-во
BOUCHON NIVEAU *PLUG-FILL LEVEL 1
1 FRONT BUSHING SHAFT KIT Includes 1 - 4. 1
2 WEAR RING 2
3 ANNEAU ETANCHE *RING-SEALING 1
4 RESSORT BLOCAGE*SPRING-LOCK 1
5 FLANGED SCREW M10 X 16 SCOTCH GRIP (3.000 per pack) 1
6 FLAT WASHER M10 (10.000 per pack) 1
8 ENS. CROIX*U-JOINT CROSS KIT Traxter 500 CVT 1
9 SCREW-SOCKET DIN.912 S.GRIP (10.000 per pack) 4
11 CLIP (10.000 per pack) 1
12 Spring Clamp 1
13 WHEEL CAP XT CAMO 2
14 PNEU ARRIERE *REAR TIRE 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). 2
15 REAR RIM 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). 2
16 HEX. NUT 8
17 RONDELLE *WASHER (10.000 per pack) 1
18 HEX. FLANGED SCREW M8 X 16 SCOTCH GRIP (10.000 per pack) 1
19 RIM VALVE WITH CAP 2
20 GRAISSE *GREASE 0
21 AXE RIGIDE *AXLE-RIGID ASS Y Includes 21 - 47. 1
21 DIFFERENTIEL C*CENTER DIFFERENTIAL Includes 21 - 43. 1
22 OIL SEAL (2.000 per pack) 2
23 BOUCHON NIVEAU *PLUG-FILL LEVEL 7400/7401. 1
24 BOUCHON VIDANGE*PLUG-DRAIN 1
25 ADAPT. ENTRAIN.*SPOOL PROPUL. 1
26 COUVERCLE ARR. *COVER-REAR 1
27 COUVERCLE ARR. *COVER-REAR 1
28 OIL SEAL 1
29 ENGRENAGE 10 D *GEAR-10 TH. 1
30 BALL BEARING 2
31 ROULEMENT BILLE*BALL BEARING 1
32 ROULEMENT AIGUI*NEEDLE BEARING 1
33 SOUPAPE VENTIL *VALVE-VENT 1
34 JOINT TORIQUE *O-RING 2
35 VIS *SCREW 8
36 ANNEAU ETANCHE *SEAL 1
37 VIS COURONNE *SCREW-RING GEAR 8
38 ECROU *NUT 1
39 GEAR 36 TEETH 1
40 JOINT TORIQUE *O-RING 1
41 ANNEAU RETENUE *RING-RETAINING 1
42 PINION GEAR SHIM .022" 1
43 DIFFERENTIAL SHIM SPOOL KIT 2
44 TORX SCREW M10 X 30 Includes 44 - 49. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). 1
45 BALL BEARING 2
46 ANNEAU RETENUE *RING-RETAINING 1
47 VIS TUBE D AXE *SCREW-AXLE TUBE 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). 4
48 TUBE AXE DR.ASS*TUBE-AXLE RH. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge). 1
49 OIL SEAL 1
50 ANNEAU RETENUE *RING-RETAINING 1
51 TUBE AXE GAUCHE*TUBE-AXLE LH. 1
56 HEX. CASTELLATED NUT M18 (5.000 per pack) 2
57 COTTER PIN (5.000 per pack) 2
58 MOYEU DE ROUE *WHEEL HUB Includes 37 - 39. 1
59 WEAR RING 1
60 DISQUE DE FREIN*BRAKE-DISC 1
61 SCREW-SOCKET CTSK.DIN.7991 S.GRIP 4
64 RONDELLE *WASHER (10.000 per pack) 2
65 ENS. BRAS OSCI*SWING ARM KIT Includes 1 - 3. 1
66 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 4
67 ARBRE DR.ASS. *AXLE-R.H.ASS Y 1
68 ARBRE GA. ASS. *AXLE-L.H.ASS Y 1
69 O-RING (5.000 per pack) 2
71 Hex. Flanged Screw M10 X 25 4
72 HUILE DE POMPE *OIL-PUMP (12.000 per pack) 0
73 PROT.DIFF.ARR. *PROTECT DIFF. 1
74 FLANGED SCREW M8 X 10 SCOTCH GRIP (5.000 per pack) 4
