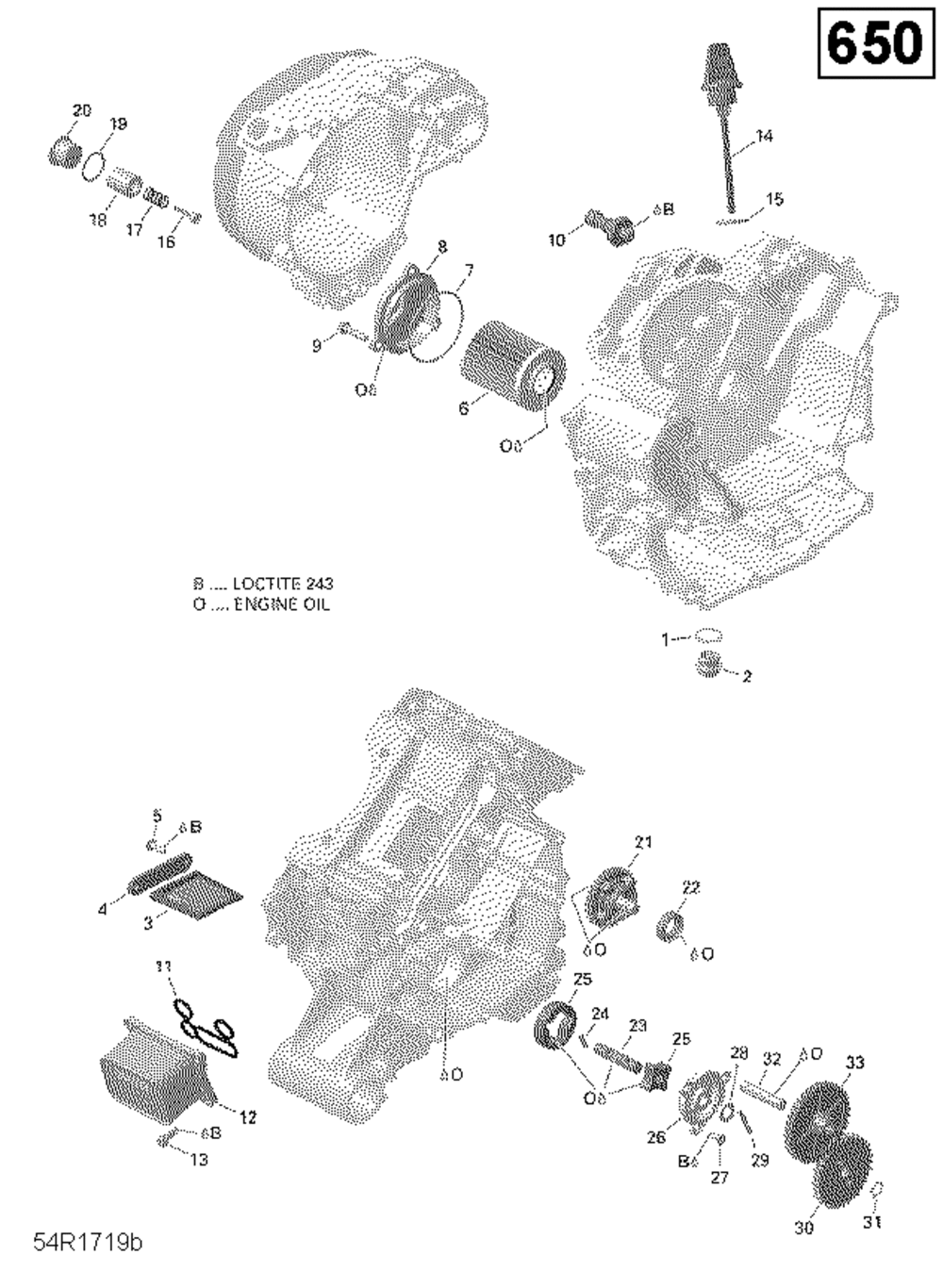

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | O-Ring | 1 | |
| 2 | Drain Plug M18 X 1.5 | 1 | |
| 3 | OIL SIEVE | 1 | |
| 4 | COVER SIEVE | 1 | |
| 5 | TAPPING SCREW M5 X 16 (10.000 per pack) | 2 | |
| 6 | Фильтр масляный | 1 | |
| 7 | O-Ring | 1 | |
| 8 | Oil Filter Cover | 1 | |
| 9 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 3 | |
| 10 | OIL PRESSURE SWITCH | 1 | |
| 11 | OIL SEAL | 1 | |
| 12 | OIL RADIATOR | 1 | |
| 13 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 4 | |
| 14 | OIL DIPSTICK | 1 | |
| 15 | O-Ring | 1 | |
| 16 | PRESSURE RELIEF VALVE | 1 | |
| 17 | COMPRESSION SPRING | 1 | |
| 18 | HOUSING VALVE | 1 | |
| 19 | ANNEAU ETANCHE *GASKET RING | 1 | |
| 20 | SCREW PLUG | 1 | |
| 21>22 | IDLE GEAR ASS Y 28 TEETH Includes 11 to 14 | 1 | |
| 22 | OIL SEAL | 1 | |
| 23 | OIL PUMP SHAFT | 1 | |
| 25 | Oil Pump Rotor | 3 | |
| 26 | OIL PUMP COVER | 1 | |
| 27 | TORX SCREW M5 X 16 | 3 | |
| 28 | THRUST WASHER | 1 | |
| 29 | Needle Pin | 1 | |
| 30 | OIL PUMP GEAR 33 TEETH | 1 | |
| 31 | Circlip | 1 | |
| 32 | Location Pin | 1 | |
| 33 | IDLE GEAR 38 TEETH | 1 |
