10- Electrical Harness - Main 710005005 Europe

Корзина пуста
Can-Am Outlander - Outlander MAX 650-850-1000 Outlander - Outlander MAX 650-850-1000 10- Electrical Harness - Main 710005005 Europe

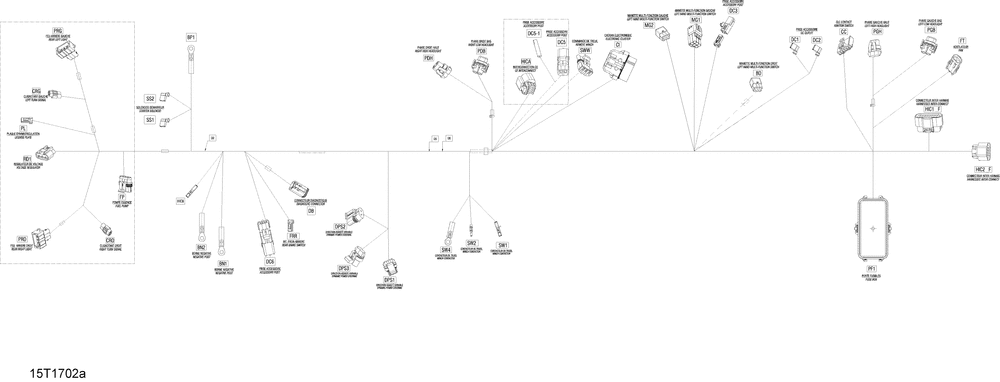

10- Electrical Harness - Main 710005005 Europe
№ Наименование Примечание Кол-во
HARNESS 1
BD FEMALE TERMINAL (10.000 per pack) 1
BD Cap 1
BD FEMALE HOUSING 6 CIRCUITS 1
BD WIRE SEAL (10.000 per pack) 1
BN1 TERMINAL 1
BN2 OPEN BARREL (10.000 per pack) 1
CC FEMALE TERMINAL 1
CC LOCK 1
CC MALE HOUSING 6 CIRCUITS 1
CC VERROU *LOCK-TAB 1
CI Female Housing 24 Circuits 1
CI Retainer Block 1
CI LOGEMENT FEMEL.*HOUSING-FEMALE (10.000 per pack) 1
CI LOCK 1
CI Plug 1
CI TERMINAL 1
CRD Wire Seal 1
CRD Female Terminal 1
D5 Diode 1
DB Housing 6 Circuits 1
DB Sealing Cap 1
DB Male Wedge 6 Circuits 1
DC3 FEMALE HOUSING 2 CIRCUITS 1
DC5 Female Housing, 2 Circuits 1
DC5 MALE CONNECTOR 2 CIRCUITS 1
DC5 Wire Seal (20 Gauge) (Purple) (Packard) 1
DC5 Female Terminal 1
DC5 Male Housing, 2 Circuits 1
DC5 CLIP 1
DC5_1 FEMALE TERMINAL (5.000 per pack) 1
DC5_1 Insulated Sheath 1
DC6 Female Terminal 1
DC_1 Female Terminal 1
DC_1 Female Terminal 1
DC_2 Female Terminal 1
DC_2 Female Terminal 1
DPS1 Cap 1
DPS1 Housing 1
DPS1 Lock 1
DPS1 Wire Seal 1
DPS1 Female Terminal 1
DPS1 Cap 1
DPS2 FUSE HOLDER CAP (5.000 per pack) 1
DPS2 FUSE HOLDER 1
DPS2 FEMALE TERMINAL (10.000 per pack) 1
DPS3 LOGEMENT *HOUSING 1
DPS3 PLUG 1
DPS3 LOCK 1
F10 Little Fuse, 5 Amperes 1
F11 LITTLE FUSE 30 AMPERES 1
F12 Little Fuse, 20 Amperes 1
F3 FUSE 1
F9 FUSE 25 AMPS 1
FL-1 FIL FUSIBLE *FUSE WIRE VOIR 715002536 1
FP Wire Seal 1
FP Female Terminal 1
FP Female Housing 4 Circuits 1
FP Wire Seal 1
FP Female Terminal 1
FT Female Terminal 1
FT Clip Bracket Connector (edge) 1
HIC1_F Wire Seal 1
HIC1_F Male Terminal 1
HIC1_F LOCK 1
HIC1_F Housing 1
HIC1_F Seal 1
HIC1_F Seal Wire 1
HIC2_F Terminal 1
HIC2_F Terminal 1
HIC2_F Housing 1
MG1 JOINT *SEAL (10.000 per pack) 1
MG1 MALE TERMINAL HOUSING 6 CIRCUITS 1
MG2 MALE TERMINAL (10.000 per pack) 1
PDB Wire Seal 1
PDB LOGEMENT *HOUSING 1
PDH Terminal 1
PDH Lock 1
PDH Housing 1
PF1 Wire Seal 1
PF1 FOAM 1
PF1 JOINT DE FIL *SEAL 1
PF1 FUSE BOX BASE ASS 1
PF1 FEMALE TERMINAL 1
PF1 FEMALE TERMINAL 1
PF1 CAP 1
PF1 DECAL FUS. RELA*LOGO FUSE REL 1
PF2 FUSE HOLDER (2.000 per pack) 1
PRD TERMINAL 1
PRD CONNECTEUR *HOUSING 1
R1 Relay, 30 AMP 1
R2 Relay 1
RD1 HOUSING 3 CIRCUITS 1
RD1 CAP 1
RD1 JOINT *SEAL 1
RD1 TERMINAL 1
SS1 FEMALE TERMINAL (10.000 per pack) 1
SW2 Insulated Sheath 1
SW2 Female Terminal 1
SW4 OPEN BARREL (10.000 per pack) 1
SWW MALE HOUSING 3 CIRCUITS 1
