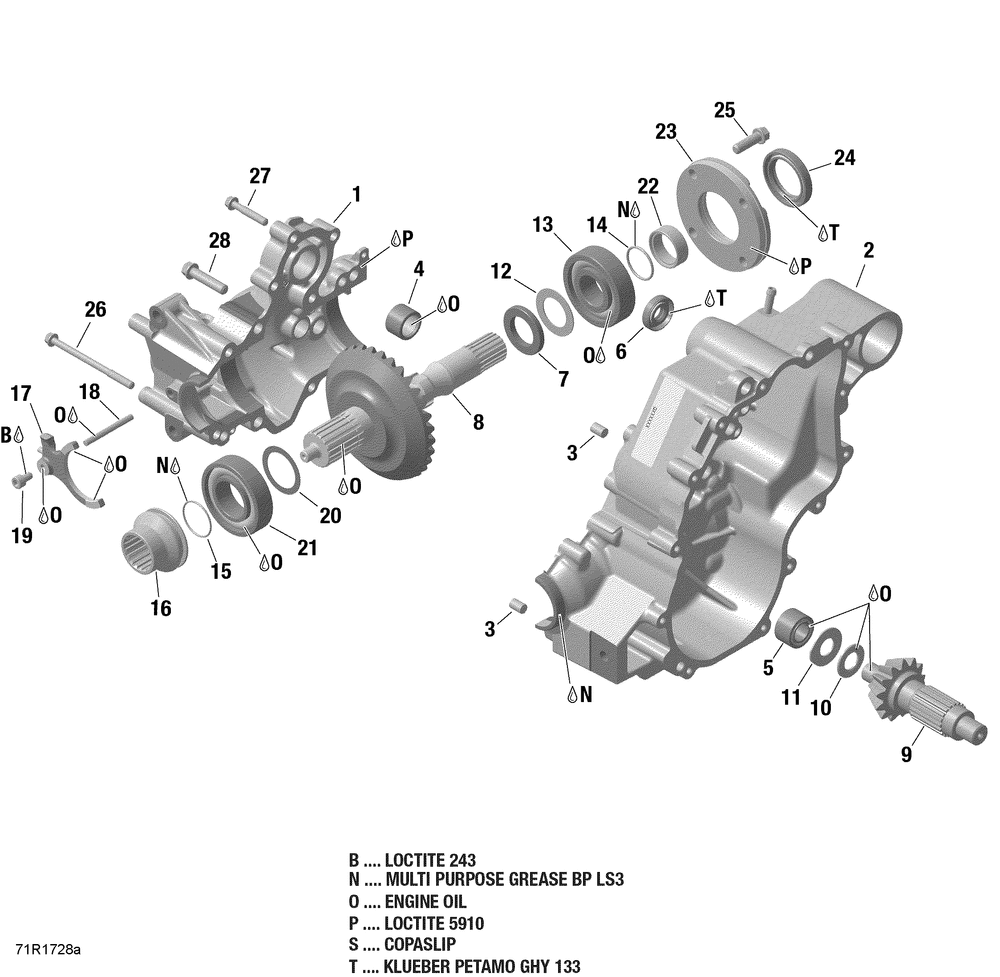

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1>6 | GEAR HOUSING ASS Y | 1 | |
| 3 | Center Pin 8 X 12 | 2 | |
| 4 | ROULEMENT AIGUI*BEARING-NEEDLE | 1 | |
| 5 | ROULEMENT AIGUI*BEARING-NEEDLE | 1 | |
| 6 | OIL SEAL | 1 | |
| 7 | DISTANCE RING | 1 | |
| 8>9 | ARBRE ENTRAINE.*DRIVE ASSEMBLY | 1 | |
| 10 | AXIAL NEEDLE BEARING | 1 | |
| 11 | THRUST WASHER SET MAG SIDE | 1 | |
| 12 | WASHER THRUST SET | 1 | |
| 13 | BALL BEARING | 1 | |
| 14 | O-RING | 1 | |
| 15 | O-RING | 1 | |
| 16 | SHIFTING SLEEVE KIT | 1 | |
| 17 | SHIFT FORK | 1 | |
| 18 | NEEDLE PIN | 1 | |
| 19 | SET SCREW M6 X 8 | 1 | |
| 20 | SHIM 0.5 | 1 | |
| 21 | BALL BEARING | 1 | |
| 22 | DISTANCE RING | 1 | |
| 23 | BEARING COVER | 1 | |
| 24 | Oil Seal | 1 | |
| 25 | FLANGED TORX SCREW M8 X 25 Tightening Torque 23 Nm +/- 12% | 4 | |
| 26 | FLANGED TORX SCREW M6 X 85 | 2 | |
| 27 | Flanged Torx Screw M6 X 35 | 5 | |
| 28 | Flanged Torx Screw M8 X 35 | 4 |
