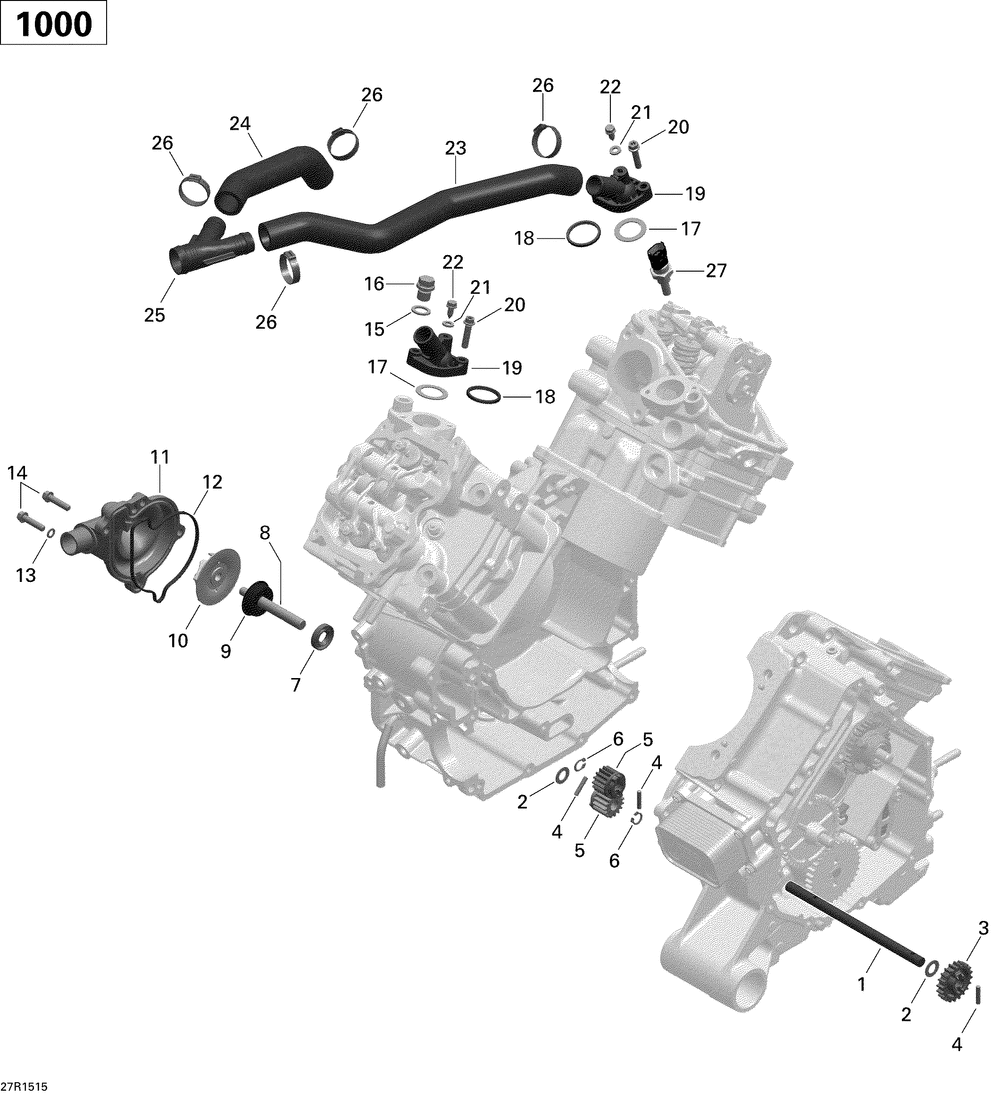

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | INTERMEDIATE SHAFT | 1 | |
| 2 | THRUST WASHER | 2 | |
| 3 | WATER PUMP GEAR | 1 | |
| 4 | NEEDLE PIN | 3 | |
| 5 | PUMP GEAR 15 TEETH | 2 | |
| 6 | Circlip | 2 | |
| 7 | OIL SEAL | 1 | |
| 8 | WATER PUMP SHAFT ASS Y | 1 | |
| 9 | ROTARY SEAL | 1 | |
| 10 | WATER IMPELLER | 1 | |
| 11 | WATER PUMP HOUSING | 1 | |
| 12 | GASKET | 1 | |
| 13 | Seal Washer | 1 | |
| 14 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 4 | |
| 15 | Copper Washer | 1 | |
| 16 | PLUG SCREW M12 X 1.5 | 1 | |
| 17 | SPACER ASS Y Includes 40 to 41 | 2 | |
| 18 | THERMOSTAT GASKET | 2 | |
| 19 | THERMOSTAT COVER | 2 | |
| 21 | ANNEAU ETANCHE *GASKET RING | 2 | |
| 22 | SCREW M5 X 16 | 2 | |
| 23 | REAR HEAD HOSE | 1 | |
| 24 | FRONT HEAD HOSE | 1 | |
| 25 | Y-FITTING | 1 | |
| 26 | CLAMP | 4 | |
| 27 | Temperature Sensor | 1 |
