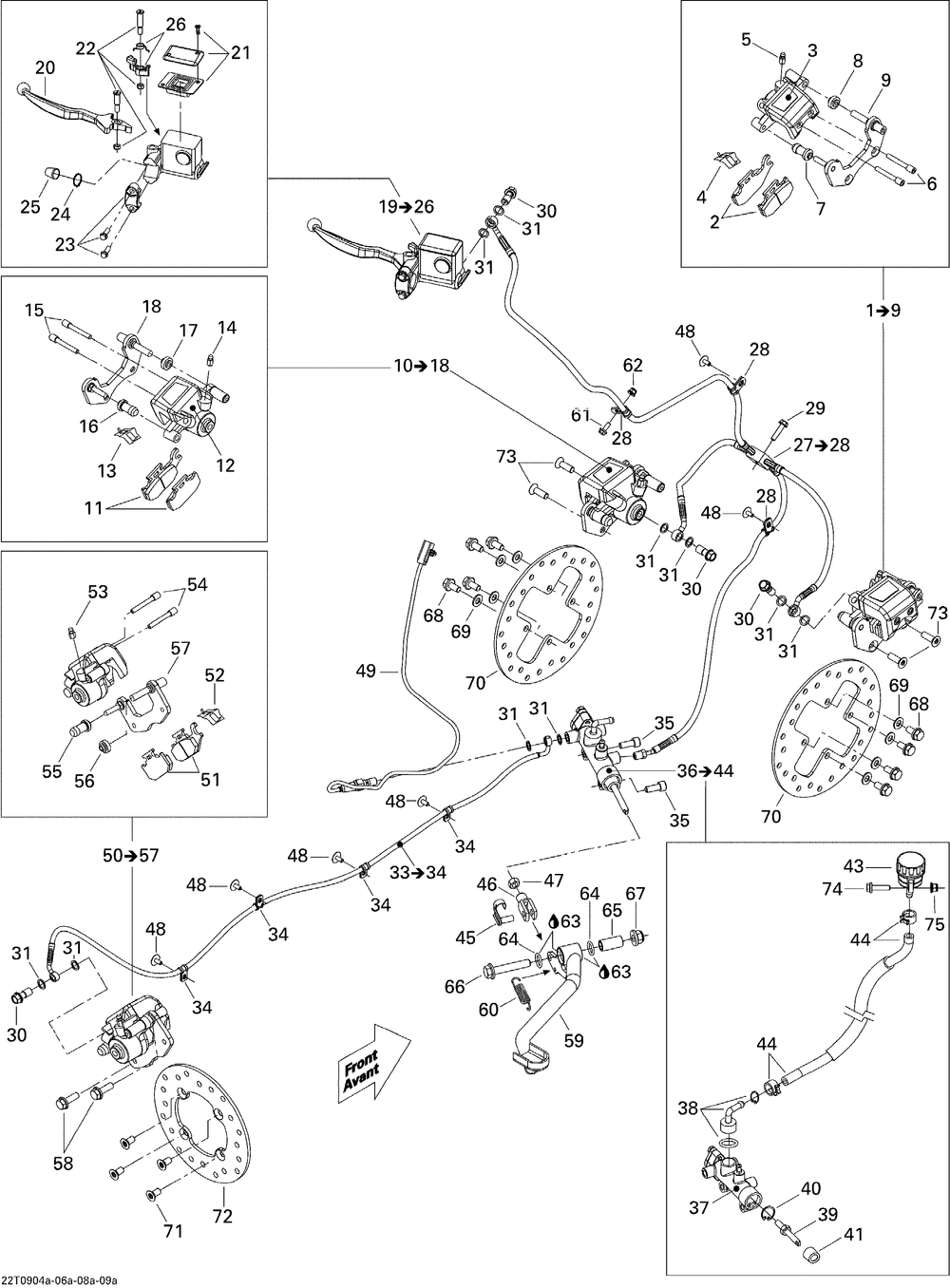

06- Hydraulic Brakes

Корзина пуста
Наименование Примечание Кол-во
1 RH CALIPER 1
2 BRAKE PAD KIT 1
3 PISTON SET 1
4 RESSORT *SPRING 1
5 Bleeding Screw 1
6 Pin Set (2) 1
7 COMPRESSION BOOT 1
8 COMPRESSION BOOT 1
10 LH CALIPER 1
11 BRAKE PAD KIT 1
18 LH CALIPER SUPPORT 1
19 FRONT MASTER CYLINDER Includes 19 to 26 1
20 LEVER ARM 1
21 CAP SET 1
22 BRAKE LEVER BOLT KIT 1
23 BRACKET KIT 1
24 CIRCLIP (5.000 per pack) 1
25 COMPRESSION BOOT 1
26 PARKING KIT BRAKE LEVER LOCK 1
27 BOYAU DE FREIN *BRAKE LINE 1
28 CLAMP 3
29 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 1
30 Banjo Bolt (M10 x 1.25 thread) 4
31 COPPER WASHER (10.000 per pack) 10
33 BRAKE LINE 1
35 SOCKET HEAD SCREW M8 X 20 SCOTCH GRIP Engine 450 2
36 MASTER CYLINDER Includes 36 to 44 XT 1
37 PISTON SET 1
38 PUSHER BRACKET HOSE CONNECTOR 1
40 CIRCLIP (5.000 per pack) 1
41 COMPRESSION BOOT 1
43 OIL TANK BRAKE FLUID RESERVOIR 1
44 OIL HOUSING HOSE 1
45 PIN KIT 1
46 Yoke 1
47 Hex. Nut M8 1
48 Pop Rivet 3/16" 6
49 BRAKE SWITCH 1
50 REAR CALIPER 1
51 LH BRAKE PAD KIT 1
57 LH CALIPER SUPPORT 1
58 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 2
59 BRAKE PEDAL BLACK 1
60 RESSORT PEDALE *SPRING PEDAL BR. 1
61 Hex. Flanged Screw M6 X 16 1
62 Hex. Flanged Elastic Nut M6 1
63 SYNTHETIC GREASE 400 G 0
64 O-RING (10.000 per pack) 2
65 SPACER 1
66 HEX. FLANGED SCREW M10 X 55 (5.000 per pack) 1
67 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 1
68 HEX. FLANGED SCREW M8 X 16 SCOTCH GRIP (10.000 per pack) 8
69 CONICAL SPRING WASHER M8 (10.000 per pack) 8
70 DISK BRAKE 2
71 Torx Screw M8 X 16, Scotch Grip 4
72 DISK BRAKE 1
73 TORX SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 4
74 Hex. Flanged Screw M6 X 25 1
