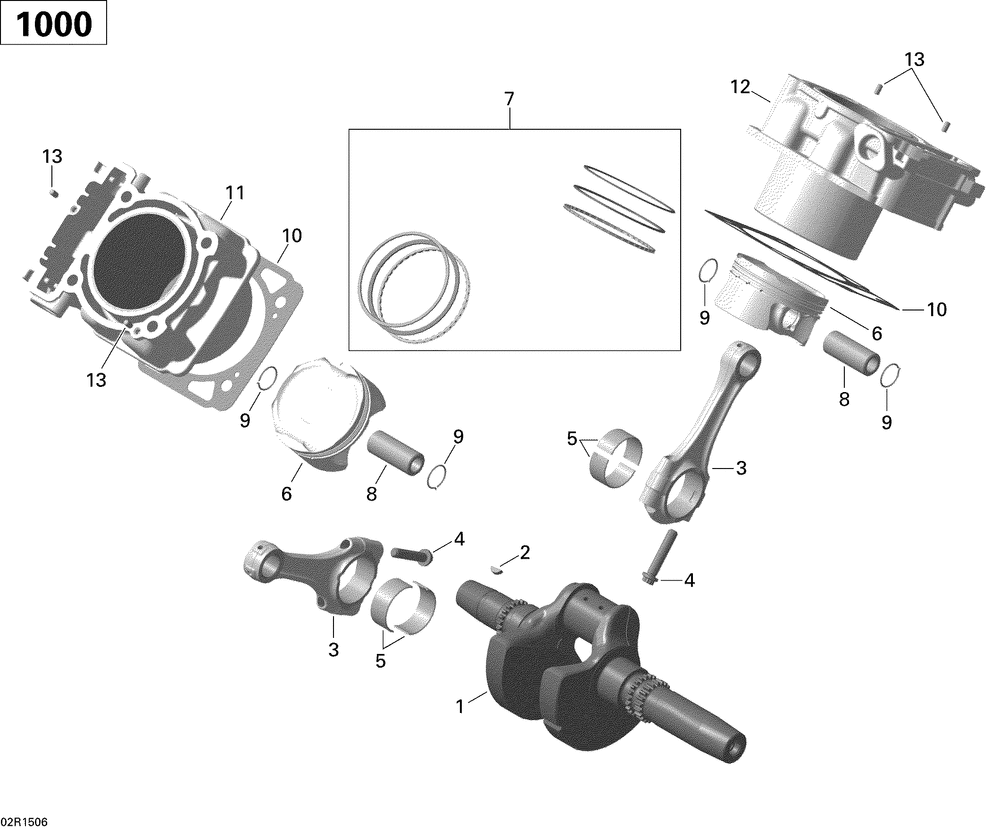

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKSHAFT | 1 | |
| 2 | Woodruff Key 4 X 5 | 1 | |
| 3 | CONNECTING ROD ASStahos_Y Includes 3 to 4 | 2 | |
| 4 | CONNECTING ROD SCREW M9 X 1 | 4 | |
| 5 | Plain Bearing | 4 | |
| 6 | PISTON ASS Y 90.955 MM Includes 6 to 7 | 2 | |
| 7 | PISTON RING SET | 2 | |
| 8 | PISTON PIN | 2 | |
| 9 | Piston Circlip | 4 | |
| 10 | JOINT ETANCHE*GASKET ARAMID | 2 | |
| 11 | CYLINDER WITH SLEEVE FRONT | 1 | |
| 12 | CYLINDER WITH SLEEVE REAR | 1 | |
| 13 | Drive Pin 5 X 10 | 4 |
