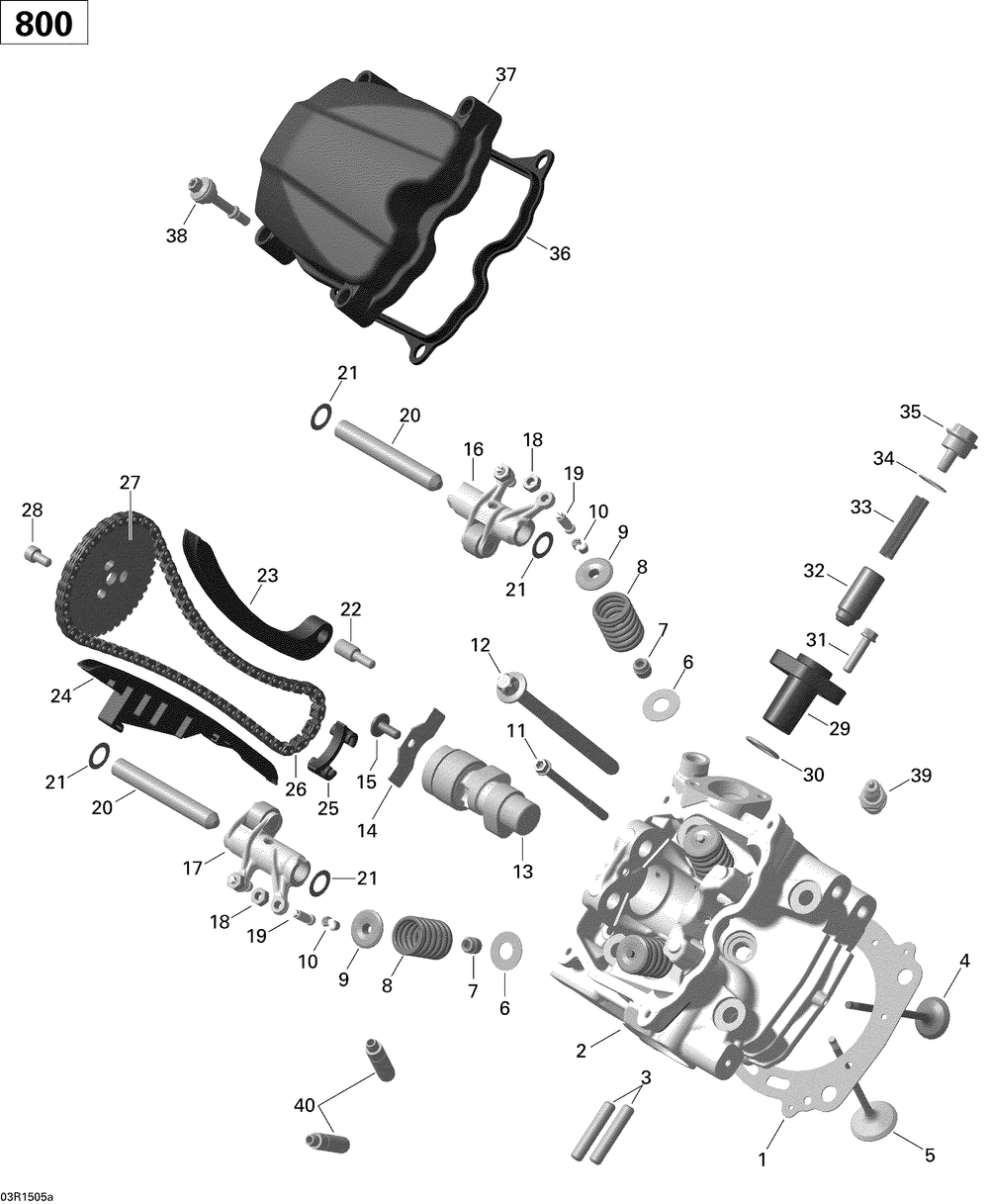

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CYLINDER HEAD GASKET | 1 | |
| 2 | CYLINDER FRONT ASS Y | 1 | |
| 3 | STUD M8 X 26 | 2 | |
| 4 | EXHAUST VALVE 27 MM | 2 | |
| 5 | INTAKE VALVE 31 MM | 2 | |
| 6 | THRUST WASHER | 4 | |
| 7 | VALVE STEM SEAL | 4 | |
| 8 | VALVE SPRING | 4 | |
| 9 | VALVE SPRING RETAINER | 4 | |
| 10 | COTTER VALVE | 8 | |
| 11 | FLANGED TORX SCREW M6 X 85 | 2 | |
| 12 | TORX SCREW M10 X 140 | 4 | |
| 13 | CAMSHAFT | 1 | |
| 14 | HOLDING STRIP | 1 | |
| 15 | Torx Screw M6 X 16 | 1 | |
| 16 | ROCKER ARM INLET | 1 | |
| 17 | ROCKER ARM EXHAUST | 1 | |
| 18 | HEX. NUT M6 | 4 | |
| 19 | ADJUSTMENT SCREW M6 X 0.75 | 4 | |
| 20 | PIN tahos_12 SMALL M6 X 90 | 2 | |
| 21 | SHIM | 4 | |
| 22 | BEARING SCREW M6 | 1 | |
| 23 | CHAIN TENSION GUIDE | 1 | |
| 24 | CHAIN GUIDE | 1 | |
| 25 | CHAIN GUIDE | 1 | |
| 26 | SILENT CHAIN | 1 | |
| 27 | CAMSHAFT SPROCKET 42 TEETH | 1 | |
| 28 | SCREW M6 X 12 | 3 | |
| 29 | CHAIN TENSIONER HOUSING | 1 | |
| 30 | O-RING (5.000 per pack) | 1 | |
| 31 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 2 | |
| 32 | CHAIN TENSIONER PLUNGER | 1 | |
| 33 | SPRING | 1 | |
| 34 | O-RING | 1 | |
| 35 | PLUG SCREW | 1 | |
| 36 | GASKET | 1 | |
| 37 | VALVE COVER | 1 | |
| 38 | HEX. DISTANCE SCREW M6 X 30.5 | 4 | |
| 39 | SPARK PLUG NGK DCP-R8E (10.000 per pack) | 1 | |
| 40 | VALVE GUIDE | 4 |
