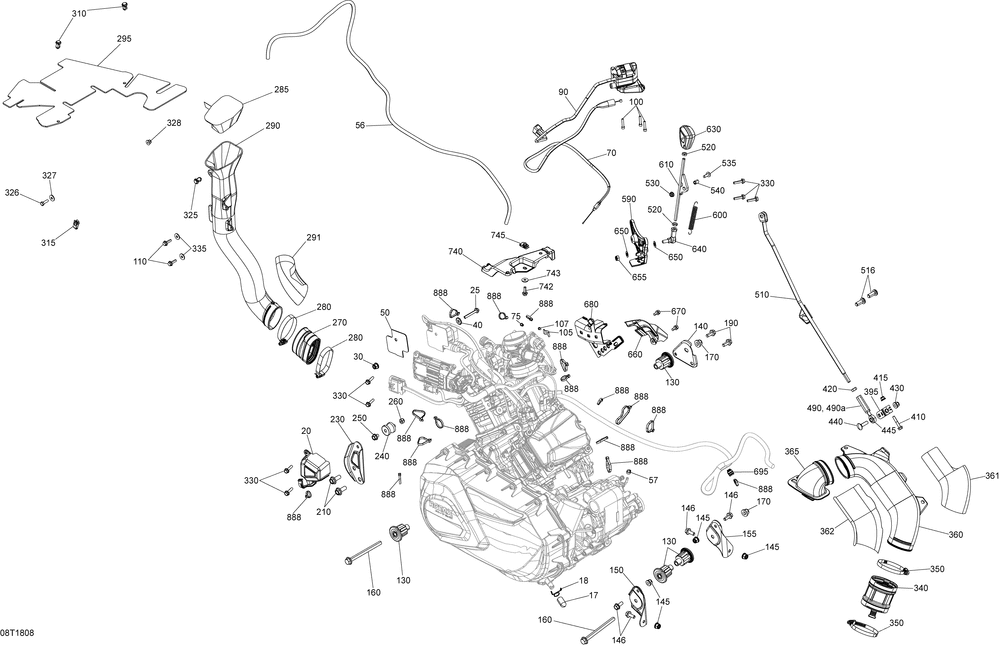

01- Engine Renegade 1000R

Корзина пуста
Наименование Примечание Кол-во
17 PLUG 1
18 RETAINER CLIP 1
20 COUVERCLE M3C *COVER M3C CON. Except Package XMR 1
25 HEX. FLANGED SCREW M6 X 50 Model-550F (3.000 per pack) 1
27 TUBING 25 MM 0
30 Hex. Flanged Elastic Nut M6 1
40 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
50 INSULATOR PAD 1
56 Hose, Polyurethane 0
57 OETIKER CLAMP 1
70 THROTTLE CABLE 1
75 CABLE GUIDE 1
90 THROTTLE HANDLE 1
100 SOCKET HEAD SCREW M5 X 25 3
110 Hex. Flanged Screw M6 X 20, Scotch Grip 2
130 DAMPER 4
140 RH FRONT ENGINE BRACKET 1
145 Hex. Elastic Flanged Nut M8 4
146 Hex. Flanged Screw M8 X 20 4
150 LH REAR ENGINE BRACKET Package PRO - Engine 1000R Package XMR 1
155 RH REAR ENGINE BRACKET Package PRO - Engine 1000R Package XMR 1
160 HEX. FLANGED SCREW M10 X 125 2
170 Flanged Elastic Nut M10 2
190 Hex. Flanged Screw M8 X 20, Scotch Grip 2
210 Hex. Flanged Screw M10 X 25 2
230 UPPER ENGINE BRACKET BLACK Engine 1000 and 1000R 1
240 ISOLATEUR *ISOLATOR 1
250 FLANGED SCREW M8 X 10 SCOTCH GRIP (5.000 per pack) 1
260 Hex. Elastic Stop Nut M8 1
270 FLEXIBLE ADAPTOR 1
280 NORMA CLAMP 2
285 FILTRE CVT *FILTER CVT Package PRO 1
290 JVT AIR INLET 1
291 HEAT SHIELD 1
295 UPPER WATER DEFLECTOR 1
310 Tuflok Plastic Rivet 2
315 Panel Nut M6 X 1.0 1
326 HEX. SCREW M6 X 20 (10.000 per pack) 1
327 Flat Washer M6, Stainless 1
330 Screw PT K60 X 30 4
331 Flanged Screw M6 X 20 Scotch Grip 3
340 CVT AIR OUTLET ADAPTOR 1
350 NORMA CLAMP 2
360 AIR OUTLET 1
361 HEAT SHIELD 1
362 HEAT SHIELD 1
365 AIR OUTLET Except Package XMR 1
395 LEVER 1
410 Hex. Flanged Screw M6 X 35 1
420 HEX. NUT M8 FILETS GA 1
430 Hex. Flanged Elastic Nut M8 1
440 CARRIAGE BOLT M8 X 30 (10.000 per pack) 1
490>490a BALL JOINT ASS Y 1
490a Hex. Jam Nut M8 1
510 SHIFTER ROD 1
516 SCREW-SOCKET BN.HD.ISO.7380 2
530 Hex. Flanged Nut M6 1
535 Torx Screw M6 X 20, Scotch Grip 1
540 BUSHING 1
590 SHIFT ARM BASE 1
595 HEX. FLANGED SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 3
600 SPRING 1
610 SHIFT ARM Except Europe Model 1
630 LEVER BUTTON 1
640 RH BALL JOINT 1
650 RONDELLE *WASHER (25.000 per pack) 2
660 COVER OPS 1
670 Hex. Flanged Screw M6 X 12 2
680 CABLE SUPPORT Except Engine 1000R Package XMR 1
695 Tie-Rap Clip 1
740 AIR OUTLET SUPPORT 1
742 Hex. Flanged Screw M6 X 20 1
743 Flat Washer 6 mm 1
888 Tie-Rap 180 mm 2
888 Tie-Rap 142 mm 1
