Can-Am Outlander 1000R EFI Outlander 1000R EFI 08- Drive System Rear Outlander G2 Package XMR

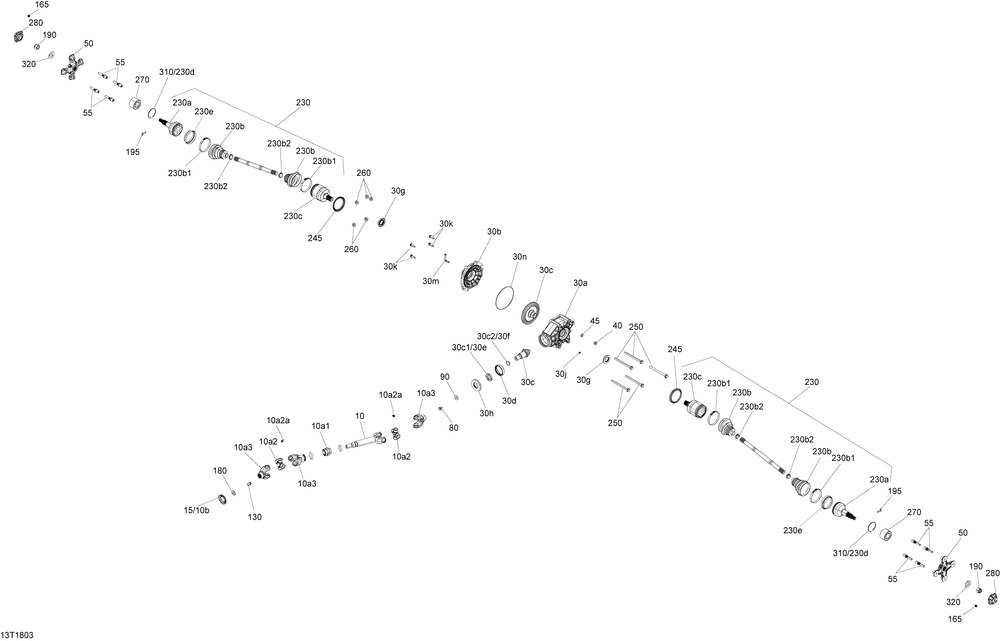

08- Drive System Rear Outlander G2 Package XMR
№ Наименование Примечание Кол-во
10 SHAFT ASS Y KIT Engine 1000R EFI Package XMR 1
10 SHAFT ASS Y KIT Engine 850 EFI Package XMR 1
10>10b SHAFT ASS Y KIT Engine 570 EFI Includes 10 to 10d 1
10a RUBBER BOOT 1
10b ENS. CROIX*UNIVERSAL JOINT CROSS Outlander Except Package PRO 2
10c GREASE FITTING Package PRO 1
10d YOKE Package XMR 850 PRO 1
10e PROTECTOR 1
30>30n FINAL DRIVE UNIT Engine 850 1000R Package XMR 1
30a REAR COVER Engine 850 1000R Package XMR 1
30b REAR PINION COVER Engine 850 1000R Package XMR 1
30c ENS ENGRENAGE 10/36D *GEAR-10/36 TOO KIT Engine 850 1000R Package XMR 1
30c1 ECROU *NUT Engine 1000R Package XMR 1
30c2 O-RING Engine 1000R Package XMR 1
30d ECROU *NUT Engine 1000R Package XMR 1
30g OIL SEAL 2
30h OIL SEAL Engine 850 1000R Package XMR 1
30j PLUG DRAIN 1
30k VIS *SCREW 4
30m BREATHER TUBE 1
30n O-RING Engine 1000R Package XMR 1
40 Fill Level Plug 1
45 Copper Washer 1
50 WHEEL HUB 2
55 WHEEL STUD 8
80 SCREW-HEX.FLANGE M10 X 16 1
90 FLAT WASHER M10 (10.000 per pack) 1
130 HEX FLANGED SCREW M12 X 16 (4.000 per pack) 1
165 Valve Cap 2
180 CONICAL SPRING WASHER M12 500 F. (5.000 per pack) 1
190 HEX. CASTELLATED NUT M18 (5.000 per pack) 2
195 GOUPILLE FENDUE*COTTER PIN 2
230>230e LH CV JOINT ASS Y Package XMR 1
230>230e RH CV JOINT ASS Y Package XMR 1
230a CV JOINT 1
230b ENS.SOUFFLET *KIT-BOOT 2
230b1 OETIKER CLAMP 82.1 MM 1
230b2 OETIKER CLAMP 27.3 MM 1
230c PLUNGING JOINT 1
230d CIRCLIP 1
230e JOINT PROTECTOR Package XMR 1
245 WEAR RING 2
250 HEX. FLANGED SCREW M10 X 135 5
260 Flanged Elastic Nut M10 5
270 Cone Bearing 2
280 WHEEL CAP Package XMR 850 XMR 1000 2
310 Circlip 2
320 CONICAL SPRING WASHER M18 (5.000 per pack) 2
