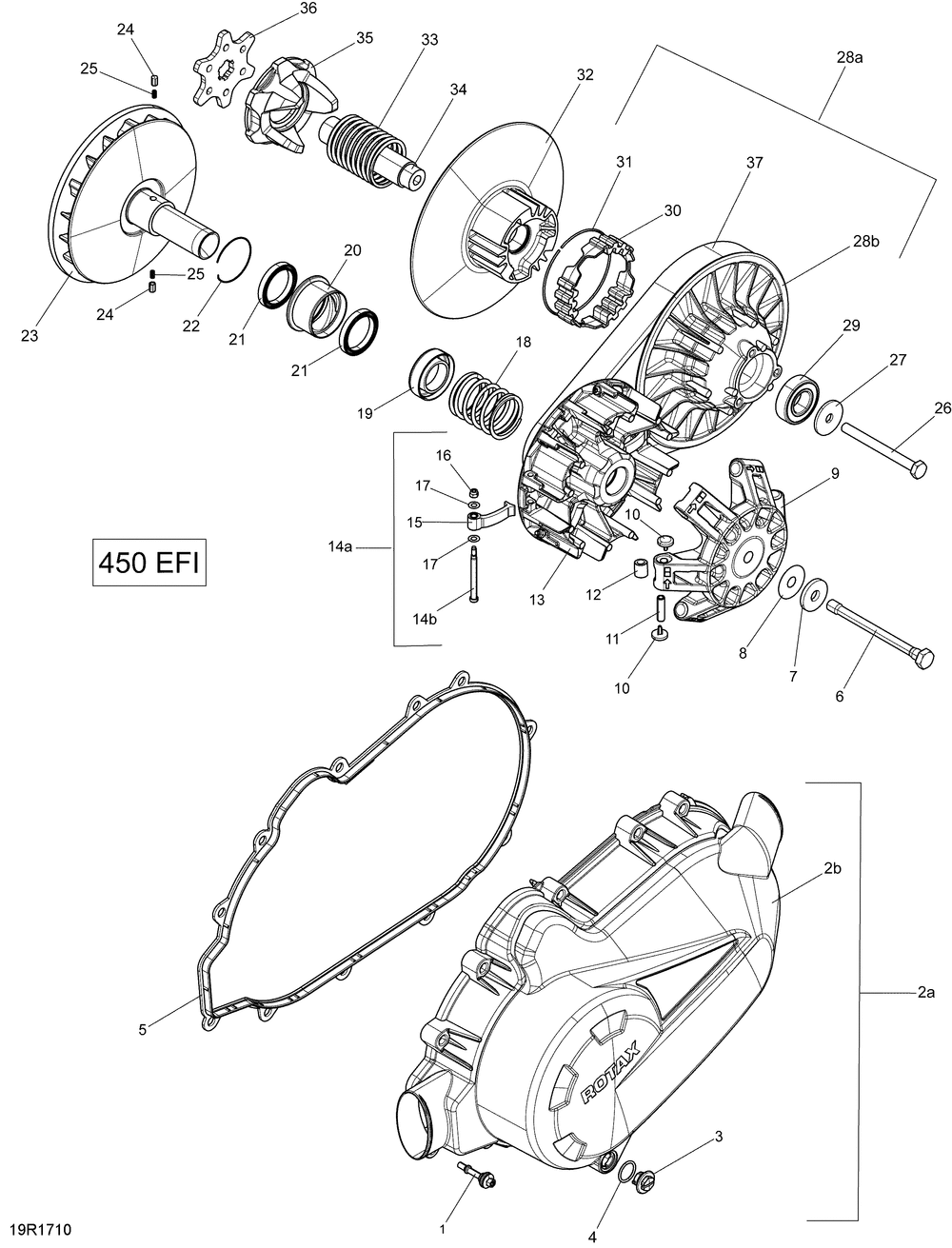

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HEX. DISTANCE SCREW M6 X 30.5 | 11 | |
| 2a | CVT COVER ASS Y Includes 2a to 4 | 1 | |
| 3 | BOUCHON*BAYONET CAP | 1 | |
| 4 | O-RING | 1 | |
| 5 | CVT COVER GASKET | 1 | |
| 6 | HEX. SCREW M12 X 140 | 1 | |
| 7 | RONDELLE RESSOR*WASHER-SPRING | 1 | |
| 8 | THRUST WASHER | 1 | |
| 9 | GOVERNOR CUP ASS Y Includes 9 to 12 | 1 | |
| 10 | Slider Shoe Set | 1 | |
| 11 | Roller Axle | 4 | |
| 12 | ROLLER (6.000 per pack) | 4 | |
| 13 | FLASQUE COULI. *HALF-OUTHER ASSY | 1 | |
| 14a | CENTRIFUGAL LEVER SET Includes 14a to 17 | 1 | |
| 18 | COMPRESSION SPRING | 1 | |
| 19 | SPRING SEAT | 1 | |
| 20 | CLUTCH | 1 | |
| 21 | BALL BEARING | 2 | |
| 22 | RETAINING RING | 1 | |
| 23 | INNER HALF ASS Y | 1 | |
| 24 | SPRING SLEEVE | 2 | |
| 25 | COMPRESSION SPRING (2.000 per pack) | 2 | |
| 26 | HEX. SCREW M10 X 110 | 1 | |
| 27 | THRUST WASHER | 1 | |
| 28a | OUTER HALF PULLEY ASS Y Includes 32 to 35 | 1 | |
| 29 | BALL BEARING | 1 | |
| 30 | TORQUE GEAR | 1 | |
| 31 | RETAINING RING | 1 | |
| 32 | INNER HALF ASS Y | 1 | |
| 33 | COMPRESSION SPRING DRIVEN PULLEY | 1 | |
| 34 | DRIVEN PULLEY SHAFT | 1 | |
| 35 | CAM | 1 | |
| 36 | CAM PLATE | 1 | |
| 37 | V BELT | 1 |
