Can-Am Renegade 570 EFI Renegade 570 EFI 01- Cooling System Renegade - All Models

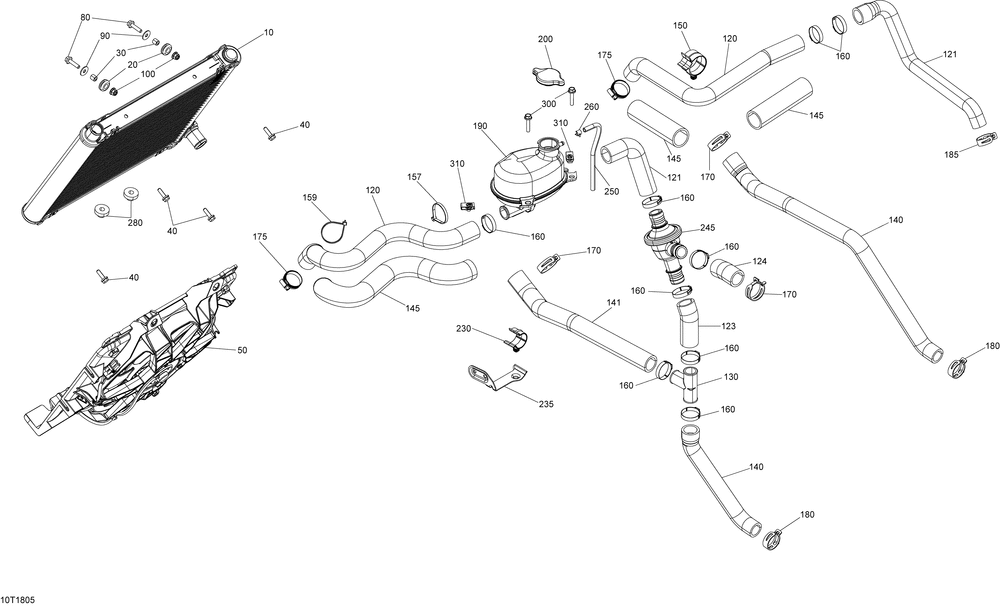

01- Cooling System Renegade - All Models
№ Наименование Примечание Кол-во
10 RADIATOR 1
20 Grommet 2
30 Bushing 2
40 Hex. Flanged Screw M6 X 20 4
50 VENTILATEUR *FAN ASSEMBLY Engine 1000 - 1000R 1
50 VENTILATEUR *FAN ASSEMBLY Engine 570 650 850 1
80 Hex. Flanged Screw M6 X 25 2
90 Flat Washer 2
100 FLANGED ELASTIC NUT M6 (8.000 per pack) 2
120 BOYAU ENTRÉE *HOSE-INTLET 1
120 RADIATOR INLET HOSE 1
121 THERMOSTAT INLET HOSE Engine 850-1000R 1
121 ENGINE OUTLET HOSE Engine 570 650 1
123 HOSE-RAD Engine 850-1000R 1
124 HOSE-RAD Engine 850-1000R 1
130 T-Fitting 1
140 HOSE-OUTLET Engine 850-1000R 1
140 RADIATOR OUTLET HOSE Engine 570 1
141 RADIATOR OUTLET HOSE Engine 850-1000R 1
145 TUBING 35 MM 0
150 Retainer 1
158 Tie-Rap 180 mm 1
160 OETIKER CLAMP 6
170 NORMA SPRING CLAMP 0
175 NORMA CLAMP 1
180 NORMA SPRING CLAMP 1
185 NORMA SPRING CLAMP 1
190 COOLANT TANK 1
200 BOUCHON RADIAT.*CAP-PRESSURE 1
230 Retainer 1
235 HOSE SUPPORT 1
245 THERMOSTAT Engine 850 1000 - 1000R 1
250 Hose, Polyurethane 0
260 Spring Clamp 1
280 Grommet 2
300 Hex. Flanged Screw M6 X 30, Scotch Grip 2
310 Panel Nut M6 X 1.0 2
