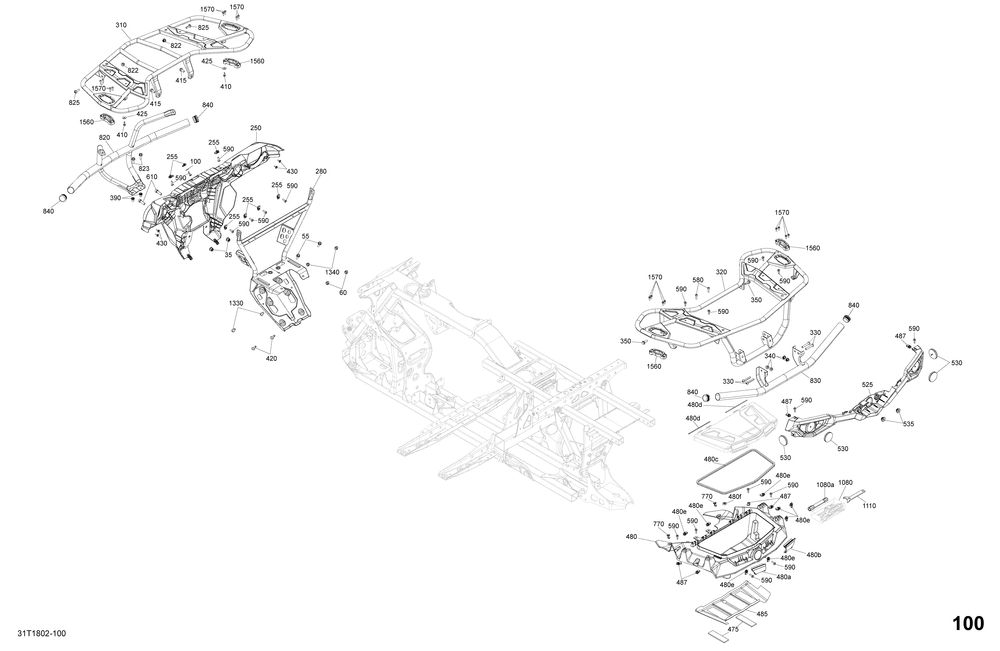

09- Body And Accessories G2 450-570 Front Rear Body Parts

Can-Am 2- Outlander 570 EFI 2- Outlander 570 EFI 09- Body And Accessories G2 450-570 Front Rear Body Parts - Package Hunter

№	Наименование	Кол-во
35	HEX. FLANGED ELASTIC NUT M10 (4.000 per pack)	2
55	HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP (10.000 per pack)	2
60	Hex. Flanged Elastic Nut M8	4
100	Flat Washer 6 mm	1
250	FRONT FACIA Except Europe Model	1
255	Panel Nut M6 X 1.0	7
280	STRUCTURE PEINT*PAINT STRUCT.	1
310	BLACK FRONT LUGGAGE RACK Except Package XMR	1
320	REAR LUGGAGE RACK KIT Model North America	1
320	REAR LUGGAGE RACK ASS Y Except Model North America	1
330	TORX TRUSS M/S M8 X 50 (2.000 per pack)	2
340	Elastic Flange Nut M8	2
350	HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP	2
390	Insert Half Hex Body M8 x 1.25	2
410	Hex. Flanged Screw M6 X 12	2
415	Hex. Flanged Screw M8 X 20, Scotch Grip	2
425	Flat Washer, Stainless	2
430	Screw M4 X 16	4
475	RUBBER PAD	2
480>480f	REAR BOX ASS Y Includes 480 to 480f	1
480a	LH BOX REAR LATCH	1
480b	RH BOX REAR LATCH	1
480c	NEOPRENE SEAL MAX Model	0
480d	RETAINING ROD	2
480f	CAP (10.000 per pack)	1
485	PARE CHALEUR *HEAT SHIELD	1
525	Крепление задних фонарей [ORG]	1
530	Red Reflector	4
535	RUBBER GROMMET	2
580	Torx Truss Screw M6 X 25	2
590	Torx Screw M6 X 20	19
610	SOCKET SCREW M10 X 30 (2.000 per pack)	2
770	Tuflok Plastic Rivet	2
820	FRONT BUMPER XT Model XT Hunter	1
825	SCREW-PAN HD.TORX M8X25	2
830	REAR BUMPER XT Model XT Hunter	1
840	CAPUCHON *CAP Package XMR	4
1080>1080a	TOOL KIT	1
1080a	WRENCH-SOCKET 14/16MM	1
1110	ADJUSTEMENT WRENCH	1
1330	SCREW-PAN HD.TORX BLACK M8X20	2
1560	ENS. BASE *LINQ BASE KIT	4
1570	Torx Screw K50 X 16	16
