07- Steering G2 Outlander - All Models Except Package STD XTP XMR

Корзина пуста
Can-Am 2- Outlander 650 EFI 2- Outlander 650 EFI 07- Steering G2 Outlander - All Models Except Package STD XTP XMR

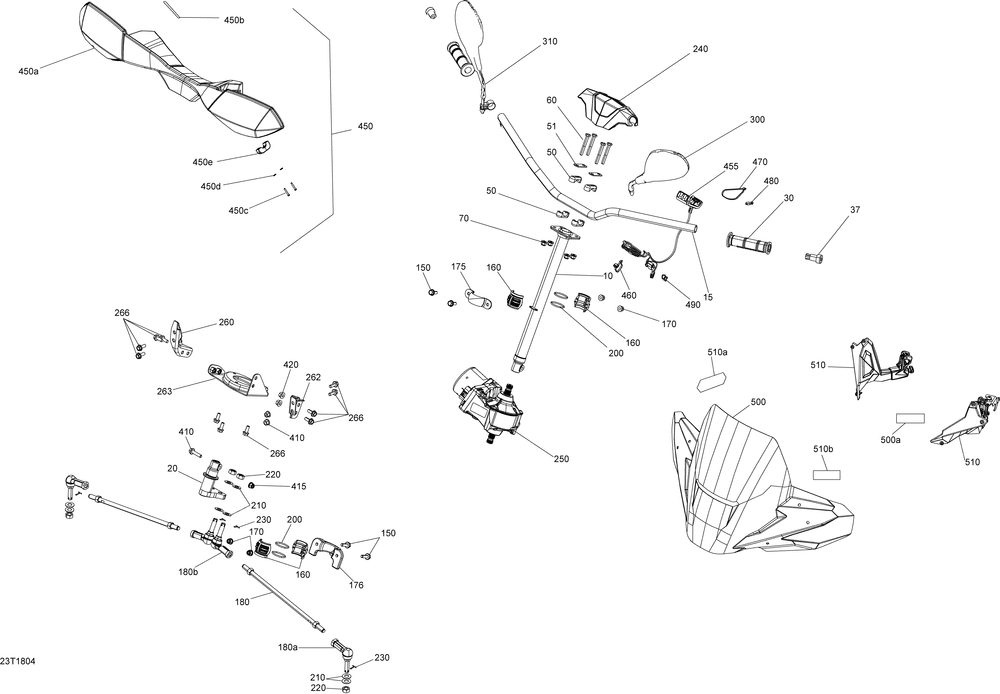

07- Steering G2 Outlander - All Models Except Package STD XTP XMR
№ Наименование Примечание Кол-во
10 TUBE-MAIN Model With DPS 1
15 GUIDON NOIR *BAR-HANDLE Package PRO-XT-STD-DPS-LTD 1
20 PITMAN ARM Model With DPS Except XMR 1
30 HANDLE GRIP GREY Package LTD 2
30 HANDLE GRIP Except Package LTD 2
30 HEATED HAND GRIP WITH CONNECTOR Package Winter 2
37 EMBOUT GUIDON *END-PIECE Package PRO - STD - LTD - XT 2
50 STEERING SUPP. 4
51 RENFORT *STIFFENER 2
60 HEX. SCREW M8 X 60 Except Package XMR Engine 1000R (4.000 per pack) 4
70 Hex. Elastic Flanged Nut M8 4
150 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 2
160 SPHERICAL HALF BUSHING 4
170 Hex. Flanged Elastic Nut M8 4
175 UPPER COLUMN ATTACHMENT 1
176 COLUMN ATTACHMENT 1
180>180b TIE-ROD ASS Y Except Model XMR Includes 180 to 180a 1
180a BALL JOINT LH THREADS 1
180b BALL JOINT 1
200 O-RING 4
210 Flat Washer 8
220 NUT M12 4
230 COTTER PIN (50.000 per pack) 4
240 STEERING COVER Package STD DPS PRO 1
250 POWER STEERING 1
260 POWER STEERING MODULE BRACKET 1
262 BRACKET RH Model With DPS 1
263 BRACKET-STEERI Model With DPS 1
266 Hex. Flanged Screw M8 X 20, Scotch Grip 11
300 LH MIRROR Europe Model 1
310 RH MIRROR Europe Model 1
410 FLANGED HEX. SCREW M8 X 35 2
420 Hex. Flanged Nut M8 4
450>450e HANDLE GUARD ASS Y XT Package XT 1
450>450j HANDLE GUARD ASS Y LTD Package LTD 1
450a HANDLE BAR PROTECTOR Package XT-LTD 1
450b DPS DECAL Package XT - LTD 1
450c HEX. FLANGED SCREW K40 X 25 Package XT -LTD (5.000 per pack) 4
450d Flat Washer 4
450e U-CLAMP 2
450f RUBBER BUMPER Package LTD 2
450g TORX-TRUSS M/S M4 X 20 4
450h Flat Washer 4 mm Stainless 4
450j Elastic Stop Nut M4 4
455 GPS SUPPORT Package LTD 1
460 Locking Tie Rap 1
470 Tie-Rap 350 mm 1
480 Tie-Rap 180 mm 1
490 Tie-Rap 173 mm 1
500a ETIQUETTE AVERT*LABEL-WARNING Package Winter 1
510>510b HARDWARE KIT Package Winter Includes 500 to 500b 1
510a CAN-AM DECAL Package Winter 1
510b ETIQUETTE AVERT*LABEL-WARNING Package Winter 1
