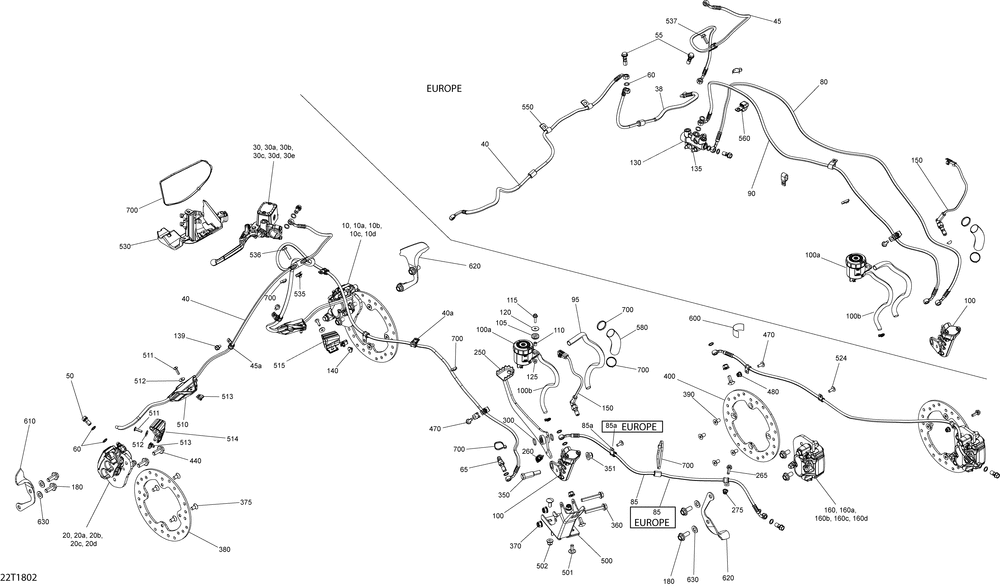

06- Brakes G2 Outlander - All Models

Корзина пуста
Наименование Примечание Кол-во
10>10d RH FRONT CALIPER ASS Y 1
10>10d LH FRONT CALIPER ASS Y 1
10>10d RH FRONT CALIPER ASS Y Model XMR Includes 10 to 10d 1
10>10d LH FRONT CALIPER ASS Y Model XMR Includes 10 to 10d 1
10a LH BRAKE PAD KIT 1
10a RH BRAKE PAD KIT 1
10a KIT PAD-BRAKE METALLIC RH Model XMR 1
10a KIT PAD-BRAKE METALLIC LH Model XMR 1
10b PIN SET 2
10c BLEEDING SCREW 2
10d RESSORT *SPRING 2
30>30c1 MAITRE CYLINDRE*MASTER CYLIND. Includes 30 to 30e 1
30a LEVER SET 1
30b1 HEX FLANGED SCREW M6 X 25 2
30b>30b1 CLAMP AND SCREW KIT Includes 8 To 9 1
30c1 Screw M4 X 20 2
30c>30c1 Cap Set 1
38 RH BRAKE LINE Model Europe T3 1
40 LH BRAKE LINE Model Europe T3 1
40>40a BRAKE LINE Outlander Max Except Europe 1
40a CLAMP 4
45>45a BOYAU DE FREIN *BRAKE LINE Model-Europe 1
50 Banjo Bolt (M10 x 1.25 thread) 0
55 BANJO BOLT Model-Europe 2
60 Copper Washer 0
65 BLEEDING SCREW 1
80 OUTLET HOSE MASTER CYLINDER Model Europe T3 1
85>85a BOYAU DE FREIN *BRAKE LINE Outlander Max Europe T3 Includes 85 to 85a 1
85>85a BOYAU DE FREIN *BRAKE LINE Outlander Max Except Europe Includes 85 to 85a 1
85>85a BOYAU DE FREIN *BRAKE LINE 1
85>85a BOYAU DE FREIN *BRAKE LINE 1
85a HOSE CLIP Not Shown 0
90 INLET HOSE MASTER CYLINDER Model-Europe 1
100>100b REAR MASTER CYLINDER Model-North America International 1
100>100b REAR CYLINDER MASTER ASS Y Model-Europe 1
100a OIL TANK 1
100b HOUSING OIL HOSE 1
105 GROMMET (5.000 per pack) 1
110 BUSHING 1
115 FLANGED HEX. SCREW M5 X 20 1
120 Flat Washer 1
130 SPLITTER Model-Europe 1
135 HEX FLANGED SCREW M6 X 50 Model Europe T3 1
139 Hex Flanged Screw M6 X 16 2
140 Pop Rivet 3/16" 1
150 BRAKE SWITCH Model-Europe 1
150 BRAKE SWITCH Model-North America International 1
160>160d RH REAR CALIPER ASS Y Includes 175 to 175d Model XMR 1
160>160d RH REAR CALIPER ASS Y 1
180 HEX. FLANGED SCREW M10 X 25 2
250 BRAKE PEDAL 1
260 BRAKE PEDAL SPRING 1
265 Hex. Flanged Screw M6 X 20 1
275 Hex. Flanged Elastic Nut M6 1
300 O-RING 2
350 SHOULDER SCREW M10 1
351 Flanged Elastic Nut M10 1
360 HEX. FLANGED SCREW M8 X 55 (2.000 per pack) 2
370 Hex. Flanged Elastic Nut M8 2
375 Torx Screw M8 X 16, Scotch Grip 8
380 DISC BRAKE 2
440 HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack) 4
500 BRACKET BRAKE PEDAL 1
501 CARRIAGE BOLT M8 X 20 3
510 FRONT HOSE PROTECTOR 2
511 Torx Screw M5 X 20 4
512 WASHER M5 (10.000 per pack) 4
513 PANEL NUT M5 X 0.8 (10.000 per pack) 4
514 LH HOSE BRACKET 1
515 RH HOSE BRACKET 1
524 TORX-TRUSS M/SM6 X 16 1
525 Pop Rivet 3/16" 1
530 FRONT HOSE BRACKET 1
535 Panel Nut M6 X 1.0 1
536 Hex. Flanged Screw M6 X 30, Scotch Grip 1
550 CLAMP Model-Europe 2
560 Clamp 3
580 TUBING 25 MM 1
600 HEAT SHIELD 1
610 LH DEFLECTOR Package-XMR 650-850 1
620 RH DEFLECTOR Package-XMR 650-850 2
630 Flat Washer 10 mm 6
715 TIE-RAP 627 MM Model-North America (4.000 per pack) 1
