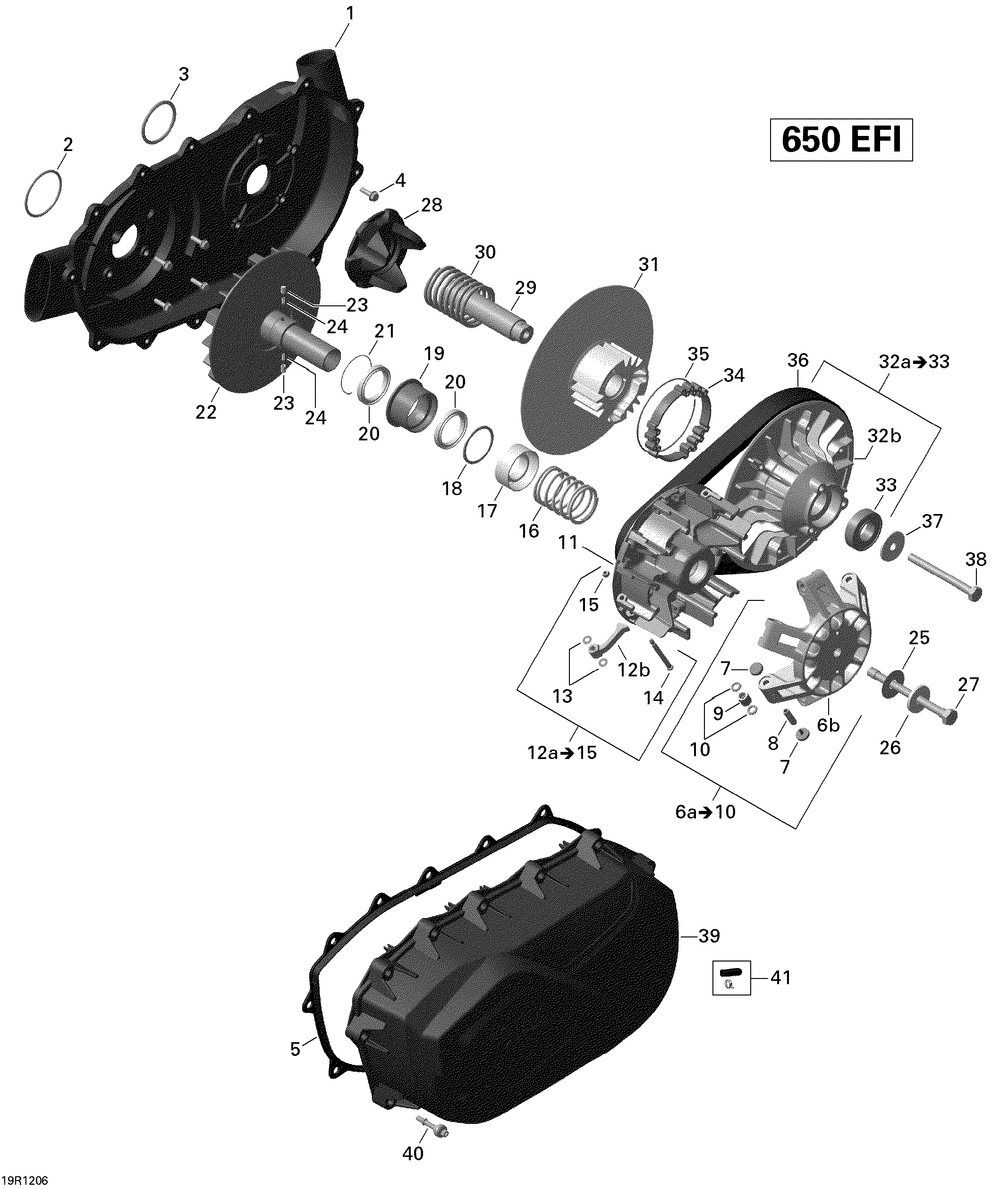

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CVT AIR GUIDE | 1 | |
| 2 | O-RING | 1 | |
| 3 | O-RING | 1 | |
| 4 | HEX.SCREW M6 X 20 | 8 | |
| 5 | JOINT ETANCHE * GASKET | 1 | |
| 6a | GOVERNOR CUP ASS Y Includes 6a to 10 | 1 | |
| 7 | Slider Shoe Set | 1 | |
| 8 | ROLLER AXLE (6.000 per pack) | 6 | |
| 9 | ROLLER (6.000 per pack) | 6 | |
| 11 | Outher Haft | 1 | |
| 12a | CENTRIFUGAL LEVER SET | 1 | |
| 16 | COMPRESSION SPRING DRIVE PULLEY | 1 | |
| 17 | SPRING SEAT | 1 | |
| 18 | FRICTION WASHER | 1 | |
| 19 | DRIVE PULLEY CLUTCH | 1 | |
| 20 | BALL BEARING | 2 | |
| 21 | RETAINING RING | 1 | |
| 22 | INNER HALF | 1 | |
| 23 | SPRING SLEEVE | 2 | |
| 24 | SPRING | 2 | |
| 25 | THRUST WASHER | 1 | |
| 26 | RONDELLE RESSOR*WASHER-SPRING | 1 | |
| 27 | HEX. SCREW M12 X 140 | 1 | |
| 28 | DRIVEN PULLEY CAM | 1 | |
| 29 | DRIVEN PULLEY SHAFT | 1 | |
| 30 | COMPRESSION SPRING | 1 | |
| 31 | INNER HALF ASS Y | 1 | |
| 32a | OUTER HALF PULLEY ASS Y (Includes 37a to 42 ) | 1 | |
| 33 | BALL BEARING | 1 | |
| 34 | TORQUE GEAR | 1 | |
| 35 | RETAINING RING | 1 | |
| 36 | Ремень приводной | 1 | |
| 37 | THRUST WASHER | 1 | |
| 38 | Hex. Screw M10 X 110 | 1 | |
| 39 | VARIATOR COVER | 1 | |
| 40 | TORX SCREW M6 X 30.5 | 7 | |
| 41 | DRAIN PLUG KIT | 1 |
