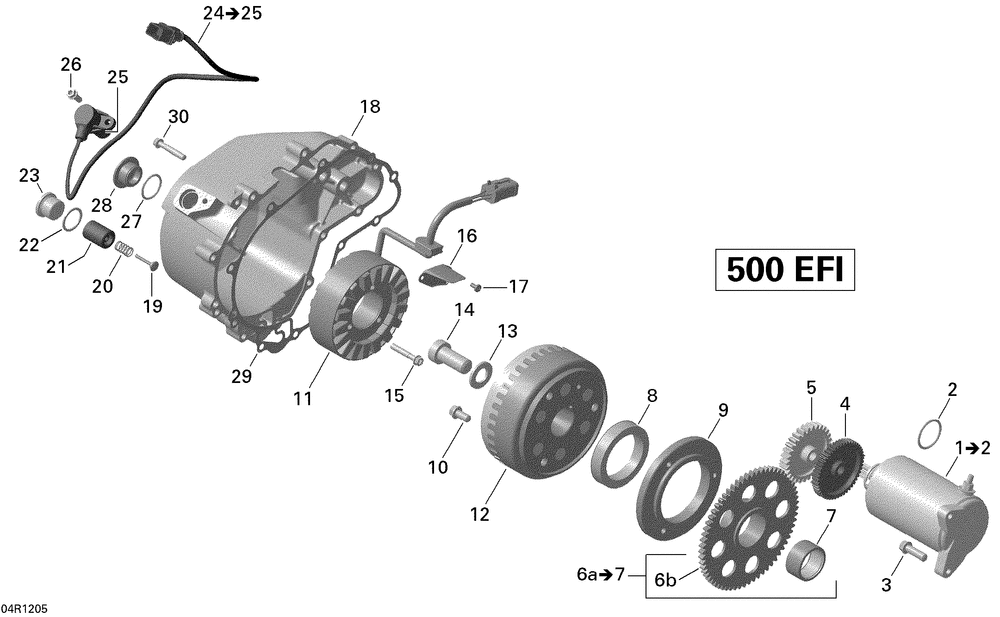

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | STARTER ASS Y | 1 | |
| 2 | O-Ring | 1 | |
| 3 | FLANGED TORX SCREW M8 X 25 Tightening Torque 23 Nm +/- 12% | 1 | |
| 4 | Double Gear | 1 | |
| 5 | GEAR 30 TEETH | 1 | |
| 6a | FREE WHEEL GEAR 64 TEETH | 1 | |
| 8 | SPRAG CLUTCH | 1 | |
| 9 | SPRAG CLUTCH HOUSING | 1 | |
| 10 | Flanged Torx Screw M8 X 16 | 3 | |
| 11 | STATOR PLATE | 1 | |
| 12 | FLYWHEEL Except DPS Package | 1 | |
| 13 | Shim | 1 | |
| 14 | SOCKET HEAD SCREW M16 X 35 | 1 | |
| 15 | FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack) | 3 | |
| 16 | CABLE INNER COVER | 1 | |
| 17 | TAPPING SCREW M4 X 8 | 2 | |
| 18 | COUVERCLE *IGNITION COVER | 1 | |
| 19 | PRESSURE RELIEF VALVE | 1 | |
| 20 | COMPRESSION SPRING | 1 | |
| 21 | HOUSING VALVE | 1 | |
| 22 | ANNEAU ETANCHE *GASKET RING | 1 | |
| 23 | SCREW PLUG | 1 | |
| 24 | Crankshaft Position Sensor Ass'y | 1 | |
| 25 | O-Ring | 1 | |
| 26 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 1 | |
| 27 | O-Ring | 1 | |
| 28 | SCREW PLUG | 1 | |
| 29 | GASKET | 1 |
