| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| C | LOCTITE 648 10 ML | 0 | |
| N | GRAISSE *GREASE | 0 | |

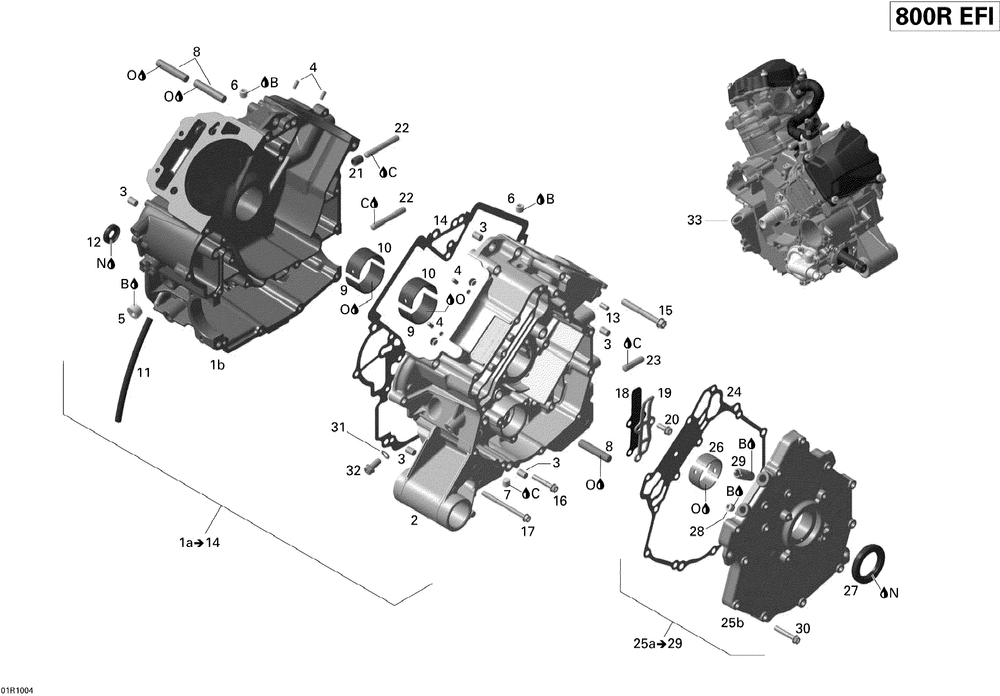

| 1a | CRANKCASE ASS Y Includes 1a to 13 | 1 | |
| 3 | Center Pin 8 X 12 | 5 | |
| 4 | Drive Pin 5 X 10 | 4 | |
| 5 | Plug Screw M18 X 1.5 | 1 | |
| 6 | Plug Screw M10 X 1 | 2 | |
| 7 | Plug Screw M12 X 1.5 | 1 | |
| 8 | LOCATION PIN | 3 | |
| 9 | PLAIN BEARING | 2 | |
| 10 | PLAIN BEARING | 2 | |
| 11 | POLYURETHANE HOSE 5.2 MM (30.000 per pack) | 1 | |
| 12 | OIL SEAL | 1 | |
| 13 | NEEDLE PIN | 1 | |
| 14 | JOINT ETANCHE *GASKET | 1 | |
| 15 | Torx Screw M6 X 16 | 4 | |
| 16 | FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack) | 1 | |
| 17 | FLANGED TORX SCREW M6 X 75 | 12 | |
| 18 | VALVE PLATE | 1 | |
| 19 | REED VALVE STOP | 1 | |
| 20 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 3 | |
| 21 | Dowel Pin 10 X 13 | 1 | |
| 22 | STUD | 2 | |
| 23 | STUD | 1 | |
| 24 | GASKET | 1 | |
| 25a | PTO COVER ASS Y Includes 25a to 29 | 1 | |
| 26 | BEARING SLEEVE | 2 | |
| 27 | OIL SEAL | 1 | |
| 29 | HOSE NIPPLE | 1 | |
| 31 | Sealing Ring | 1 | |
| 32 | Flanged Torx Screw M8 X 16 | 1 | |
| 33 | LONG BLOCK 800R EFI With DPS | 1 |
