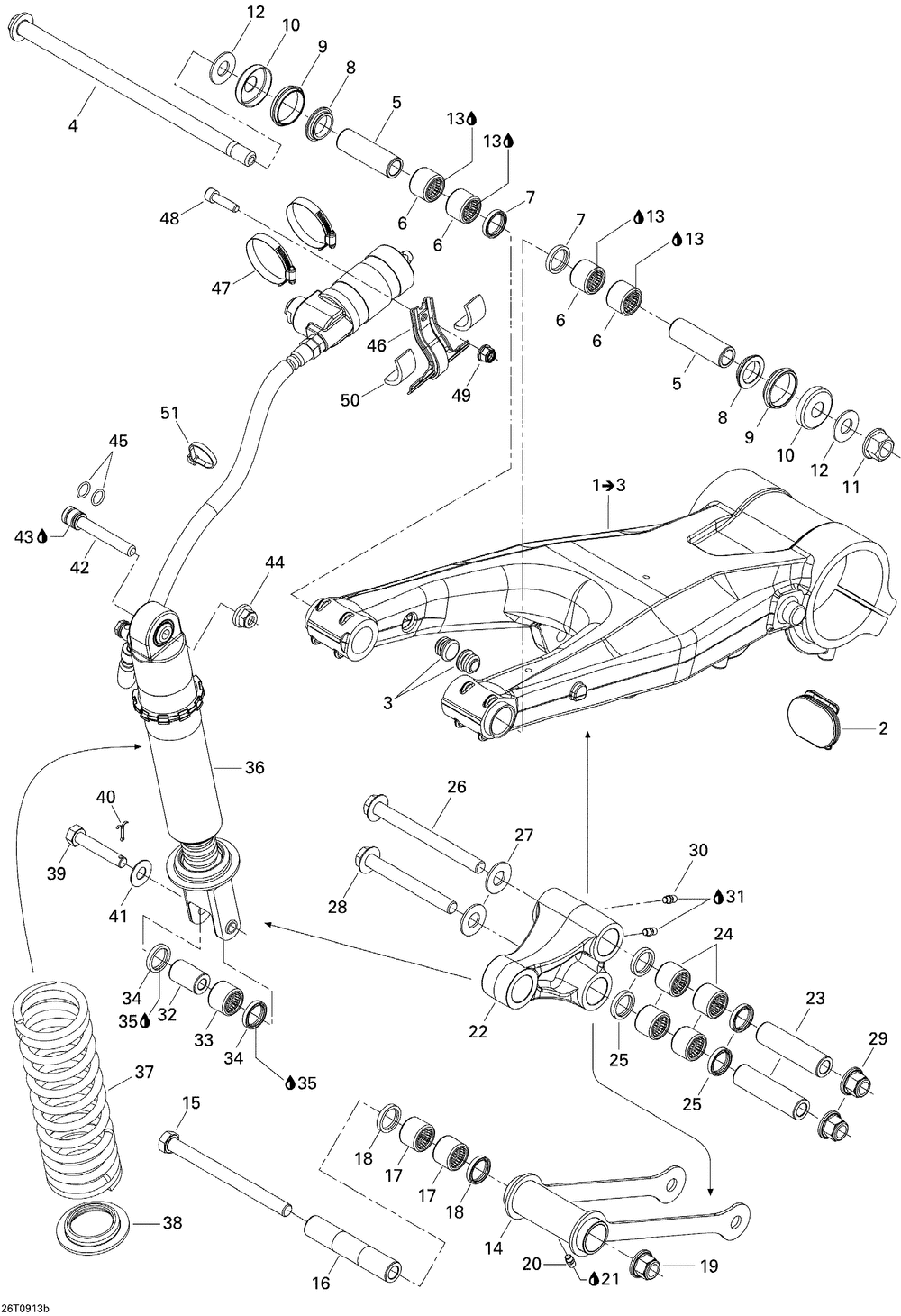

08- Rear Suspension Xmx

№	Наименование	Кол-во
1	SWING ARM ASS Y Includes 1 to 3	1
2	SWING ARM CAP	1
3	CAP FAN (5.000 per pack)	2
4	HEX. SCREW M14 X 287	1
5	BUSHING	2
6	BEARING	4
7	JOINT *SEAL	2
8	SPACER	2
9	JOINT *SEAL	2
10	SEAL CAP	2
11	NUT-STOP ELASTIC DIN.985 (2.000 per pack)	1
12	FLAT WASHER (5.000 per pack)	3
13	SYNTHETIC GREASE 400 G	0
14	LEVER	1
15	HEXAGONAL SCREW M12 X 145	1
16	BUSHING	1
19	FLANGE ELASTIC NUT	1
20	GREASE FITTING	1
22	SECONDARY LEVER	1
23	BUSHING	2
26	SCREW-HEX.CAP-ISO.4014 S.GRIP	1
27	Flat Washer	2
28	HEXAGONAL SCREW M12 X 105	1
32	BUSHING	1
36a	REAR SHOCK (Includes 35 to 36 )	1
36b	Spring Stopper	1
36c	SHOCK OIL 1 LITER	1
36d	PISTON ET TIGE *PISTON & ROD (Includes 37 to 39 )	1
36e	CIRCLIP EN C	1
39	BOLT M10	1
40	COTTER PIN	1
41	FLAT WASHER	1
42	VIS *SCREW	1
43	DIELECTRIC GREASE 150 G	0
44	Flanged Elastic Nut M10	1
45	O-RING (5.000 per pack)	2
46	SUPPORT	1
47	TRIDON GEAR CLAMP (5.000 per pack)	2
48	SOCKET HEAD SCREW M8 X 30 Tightening Torque 21-22 Nm (10.000 per pack)	1
49	Hex. Flanged Elastic Nut M8	1
50	TAMPON *PAD	2
51	Tie-Rap 180 mm	1
