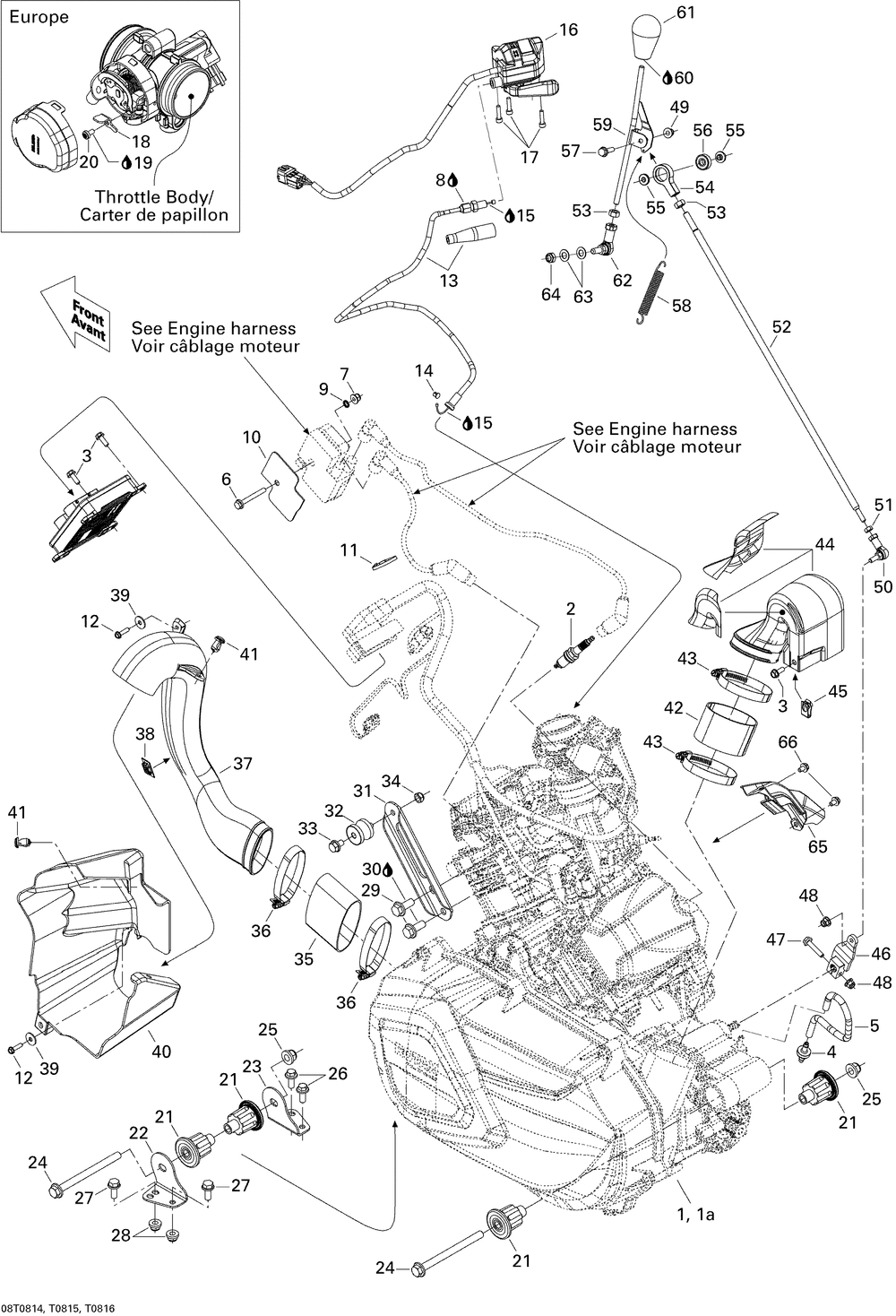

01- Engine And Engine Support
№ Наименование Примечание Кол-во
1a LONG BLOCK 500 EFI 1
2 SPARK PLUG NGK DCP-R8E (10.000 per pack) 1
3 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 3
4 CHECK VALVE 1
5 HOSE 6 MM (15.000 per pack) 1
6 HEX. FLANGED SCREW M6 X 50 Model-550F (3.000 per pack) 1
7 Hex. Flanged Elastic Nut M6 1
8 DIELECTRIC GREASE 150 G 0
9 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
10 INSULATOR PAD 1
11 Tie-Rap 180 mm 1
12 SCREW-FORMING HEX.HD.FL.DIN.7500D 600 H.O. SDI (5.000 per pack) 2
13 THROTTLE CABLE 1
14 CABLE GUIDE 1
15 CABLE LUBRICANT 400 G 0
16 THROTTLE HANDLE 1
17 SOCKET HEAD SCREW M5 X 25 3
19 LOCTITE 243 10 ML 0
20 TORX SCREW M4 X 8 Europe Model 1
21 DAMPER 4
22 ENGINE BRACKET 1
23 ENGINE BRACKET 1
24 HEX. FLANGED SCREW M10 X 125 2
25 Hex. Flanged Elastic Nut M10 2
26 Hex. Flanged Screw M8 X 20, Scotch Grip 2
27 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 2
28 Hex. Flanged Elastic Nut M8 2
29 Hex. Flanged Screw M10 X 25 2
31 UPPER ENGINE BRACKET BLACK 1
32 ISOLATEUR *ISOLATOR 1
33 Hex. Flanged Screw M8 X 12, Scotch Grip 1
34 Hex. Elastic Stop Nut M8 1
35 FLEXIBLE ADAPTOR 1
36 NORMA CLAMP 2
37 AIR INLET 1
38 TIE-RAP MOUNT 1
39 FLAT WASHER (10.000 per pack) 2
40 WATER DEFLECTOR 1
41 Tuflok Plastic Rivet 2
42 ADAPTATEUR FLEX*ADAPTOR 1
43 NORMA CLAMP 2
44 AIR OUTLET ASS Y 1
45 Panel Nut M6 X 1.0 1
46 LEVER 1
47 HEX. FLANGED SCREW M6 X 30 (5.000 per pack) 1
49 Hex. Flanged Nut M6 1
50 LH BALL JOINT 1
51 LH HEX. NUT M6 (5.000 per pack) 1
52 THREADED ROD 1
53 Hex. Nut M8 2
54 PIVOT 1
55 ENTRETOISE *SPACER 2
56 BALL BEARING 1
57 Hex. Flanged Screw M6 X 25 1
58 SPRING 1
59 LEVER ARM 1
61 LEVER BUTTON 1
62 RH BALL JOINT 1
63 RONDELLE *WASHER (25.000 per pack) 2
65 COVER OPS 1
66 Hex. Flanged Screw M6 X 12 2
