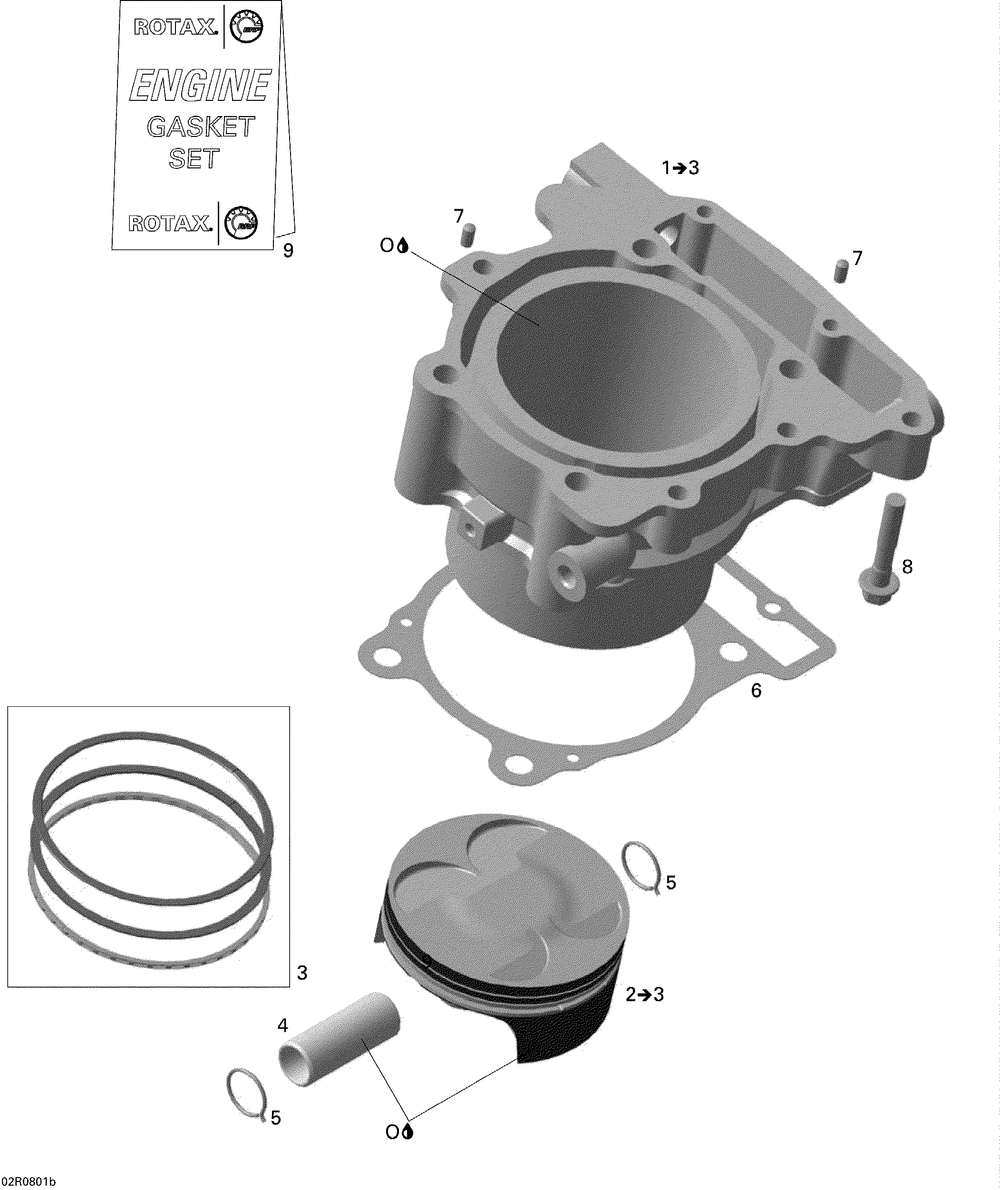

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CYLINDER AND PISTON ASS Y Includes 1 to 3 | 1 | |
| 2 | PISTON ASS Y 96.95 MM (Includes 2 to 3 ) | 1 | |
| 2 | PISTON ASS Y 96.96 MM (Includes 2 to 3 ) | 1 | |
| 3 | PISTON RING SET | 1 | |
| 4 | PISTON PIN | 1 | |
| 5 | Piston Circlip | 2 | |
| 6 | Cylinder Gasket | 1 | |
| 7 | Drive Pin 5 X 10 | 2 | |
| 8 | Hex. Flanged Screw M8 X 45 | 4 | |
| 9 | ENS.JOINT ETANC*SET-GASKET | 1 |
