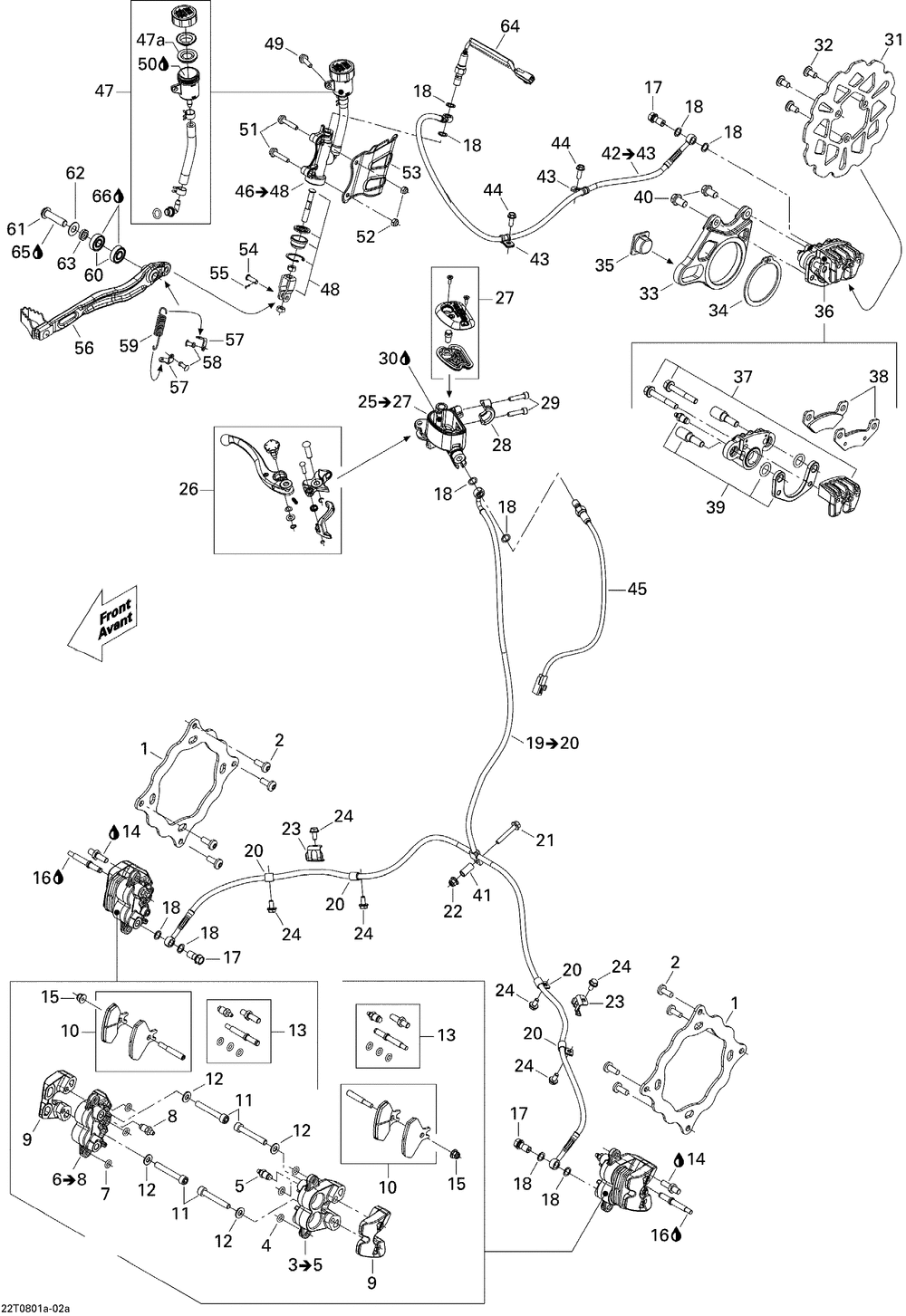

Can-Am DS 450 DS 450 06- Hydraulic Brakes
06- Hydraulic Brakes
№ Наименование Примечание Кол-во
1 FRONT BRAKE DISC 2
2 TORX SCREW M8 X 20 SCOTCH GRIP (10.000 per pack) 8
3 LH FRONT CALIPER ASS Y (Includes 3 to 4 ) 1
6 RH FRONT CALIPER ASS Y (Includes 6 to 7 ) 1
9 OUTER CALIPER 2
10 FRONT BRAKE PAD KIT 2
11 SOCKET HEAD SCREW M8 X 55 4
12 FLAT WASHER M8 Not Shown 4
13 PIN SLIDE KIT 2
14 LOCTITE 243 10 ML 0
15 FLANGED ELASTIC NUT M6 (8.000 per pack) 2
17 BANJO BOLT 3
18 COPPER WASHER (10.000 per pack) 10
19 FRONT LEVER BRAKE HOSE ASS Y Includes 19 to 20 1
20 CLAMP 4
21 HEX. FLANGED SCREW M6 X 40 1
23 HOSE HOLDER 2
24 HEX. FLANGED SCREW M6 X 12 SCOTCH GRIP 6
25 CYLINDER MASTER ASS Y (Includes 26 to 28 ) 1
26 BRAKE LEVER KIT 1
27 ENS.CAPUCHON *BOOT-KIT 1
28 BLOC SERRAGE *CLAMP 1
29 SOCKET HEAD SCREW M6 X 25 2
30 LIQUIDE FREIN *BRAKE FLUID (12.000 per pack) 0
31 REAR DISC BRAKE 1
32 SHOULDER SCREW M8 (4.000 per pack) 3
33 REAR CALIPER SUPPORT 1
34 CIRCLIP *SNAP RING 1
35 GUIDE REAR CALIPER 1
36 REAR CALIPER ASS Y 1
37 ENSEMBLE ETRIER*CALIPER KIT 1
38 BRAKE PAD KIT 1
39 BRACKET KIT 1
40 HEX. FLANGED SCREW M8 X 20 SCOTCH GRIP (5.000 per pack) 2
41 SPACER 1
42 BOYAU DE FREIN *BRAKE LINE Includes 42 to 43 1
44 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
45 BRAKE SWITCH 1
46 REAR MASTER CYLINDER Includes 46 to 48 1
47 RESERVOIR SET 1
47a DIAPHRAGME *DIAPHRAGM 1
48 ROD SET 1
49 Hex. Flanged Screw M6 X 20 1
51 Hex. Flanged Screw M6 X 30, Scotch Grip 2
52 Elastic Stop Nut M6 2
53 HOSE PROTECTOR 1
54 CLEVIS PIN 1
55 COTTER PIN (10.000 per pack) 1
56 BRAKE PEDAL 1
57 FIXATION PLATE 2
58 POP RIVET 3/16tahos_ (50.000 per pack) 2
59 BRAKE PEDAL SPRING 1
60 Bearing 2
61 SOCKET HEAD SCREW M10 X 40 1
62 RONDELLE *WASHER 1
63 Bushing 1
64 BRAKE SWITCH 1
66 LOCTITE 609 10 ML 0
