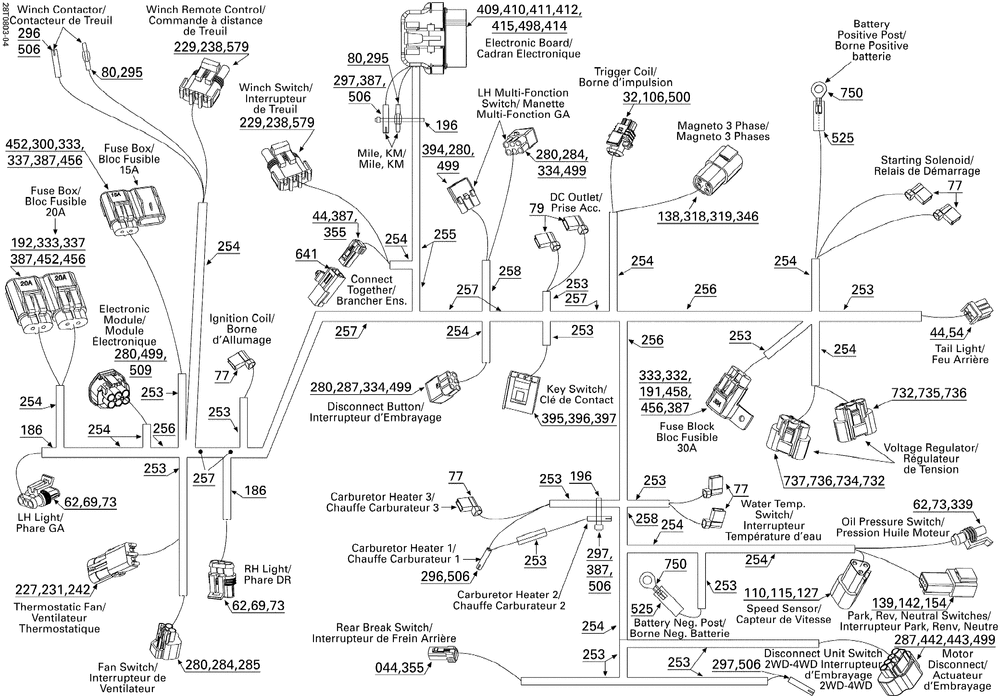

Can-Am Outlander MAX 400 XT Outlander MAX 400 XT 10- Main Harness
10- Main Harness
№ Наименование Примечание Кол-во
1 CABLAGE ASS. *HARNESS-ASSY. Includes 1 to 750 1
32 FEMALE TERMINAL (10.000 per pack) 0
44 Female Terminal 0
54 Female Housing, 3 Circuits 0
62 Female Terminal 0
69 Female Housing, 3 Circuits 0
73 Wire Seal 0
77 FEMALE TERMINAL (10.000 per pack) 0
79 FEMALE TERMINAL (10.000 per pack) 0
80 Male Terminal 0
106 MALE HOUSING 2 CIRCUITS 0
110 MALE TERMINAL (10.000 per pack) 0
115 MALE HOUSING 0
127 Male Lock, 3 Circuits 0
138 Sealing Cap 0
139 MALE TERMINAL (10.000 per pack) 0
142 MALE HOUSING 3 CIRCUITS 0
154 MALE LOCK 3 CIRCUITS 0
186 Vinyl Tubing, Low Temperature  (3.000 per pack) 0
191 FUSE 30 AMPERES (5.000 per pack) 0
192 FUSE 20 AMPERES (5.000 per pack) 0
196 Tie-Rap 142 mm 0
227 Male Terminal 0
229 FEMALE TERMINAL (5.000 per pack) 0
231 Female Housing, 2 Circuits 0
238 MALE HOUSING 3 CIRCUITS 0
242 Wire Seal 0
253 Tubing 6 mm  (3.000 per pack) 0
254 Tubing 9 mm (10.000 per pack) 0
255 Tubing 13 mm  (10.000 per pack) 0
256 Tubing 16 mm 0
257 TUBING 19 MM (10.000 per pack) 0
258 TUBING 10 MM 0
280 FEMALE TERMINAL (10.000 per pack) 0
284 JOINT *SEAL (10.000 per pack) 0
285 BLOC 2 CIRC.FEM*HOUSING-TAB 0
287 Cap 0
295 Insulated Sheath 0
296 INSULATED SHEATH 0
297 Insulated Sheath 0
300 FUSE 15 AMPERES (5.000 per pack) 0
318 BLOC 4 CIRC.FEM*HOUSING-TAB 0
319 MALE TERMINAL 0
332 FUSE HOLDER CAP (5.000 per pack) 0
333 FUSE HOLDER (2.000 per pack) 0
334 FEMALE HOUSING 6 CIRCUITS 0
337 FEMALE TERMINAL (10.000 per pack) 0
339 MALE HOUSING 1 CIRCUIT (5.000 per pack) 0
346 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 0
355 FEMALE HOUSING 2 CIRCUITS 0
387 DIELECTRIC GREASE 150 G 0
394 FEMALE TERMINAL HOUSING 3 CIRCUITS 0
395 FEMALE TERMINAL 0
396 FEMALE TERMINAL HOUSING 4 CIRCUITS 0
397 LOCK 4 CIRCUITS 0
409 Plug 0
410 Female Housing 24 Circuits 0
411 Retainer Block 0
412 Wire Seal 0
414 LOCK 0
415 Female Terminal 0
442 MALE HOUSING 4 CIRCUITS 0
443 Female Terminal 0
452 HOUSING COVER 0
456 CUSHION (5.000 per pack) 0
458 FEMALE TERMINAL 0
498 Female Housing 0
499 WIRE SEAL (10.000 per pack) 0
500 WIRE SEAL (25.000 per pack) 0
506 Female Terminal 0
509 FEMALE TERMINAL HOUSING 6 CIRCUITS 0
525 SHRINK TUBING 0
579 Wire Seal 0
641 Male Housing, 2 Circuits 0
732 Female Terminal 0
734 HOUSING 3 CIRCUITS 0
735 HOUSING 3 CIRCUITS 0
736 Seal 0
737 CAP 0
750 TERMINAL 0
