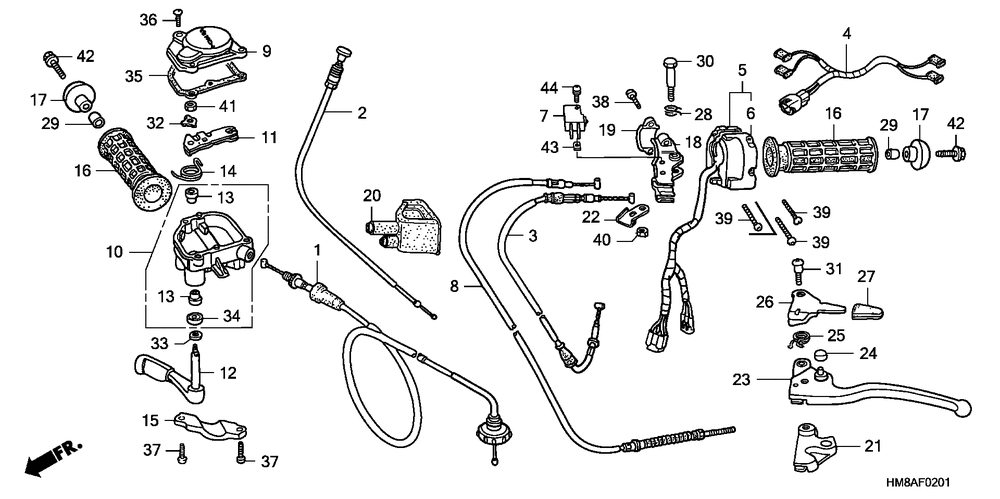

Honda TRX250TM TRX250TM HANDLE LEVER@SWITCH@CABLE ("05)
HANDLE LEVER@SWITCH@CABLE (
№ Наименование Примечание Кол-во
001 CABLE SET THROTTLE 1
002 CABLE CHOKE 1
003 CABLE 1
004 SUB-WIRE FR. 1
005 SWITCH ASSY. 0
006 COVER SWITCH 1
007 SWITCH, FR. STOP 1
007 SWITCH ASSY. FR. STOP (OMRON) 0
008 CABLE HAND BRAKE 1
009 COVER THROTTLE CASE 1
010 CASE THROTTLE LEVER 1
011 ARM THROTTLE 1
012 LEVER THROTTLE 1
012 LEVER THROTTLE 1
013 BUSH THROTTLE PIVOT 2
014 SPRING 1
015 HLDR THROTTLE CASE 1
016 GRIP HANDLE 2
017 GUARD HANDLE END 2
018 BRACKET BRAKE LEVER 1
019 HLDR, LEVER BRACKET 1
020 COVER L. HANDLE 1
021 ARM 1
022 HOLDER 1
023 LEVER RR. BRAKE 1
024 CAP REVERSE PIN 1
025 SPRING 1
026 LEVER 1
027 CAP PARKING LEVER 1
028 SPRING LEVER RETURN 1
029 COLLAR 2
030 BOLT 1
031 SCREW 1
032 WASHER LOCK (6MM) 1
033 WASHER (9X20) 1
034 DUST SEAL (9X16X5) 1
035 GSKT THROTTLE CASE 1
036 SCREW, PAN (4X16) 3
037 SCREW, PAN (5X14) 2
038 SCREW, PAN (5X18) 2
039 SCREW, PAN (5X25) 2
040 NUT, HEX. (6MM) 1
041 NUT, HEX. (6MM) 1
042 BOLT, FLANGE (6X25) 2
043 COLLAR STOP SWITCH 1
044 SCREW-WASHER (4X20) 1
