Honda TRX300FW TRX300FW FW FRONT FINAL GEAR

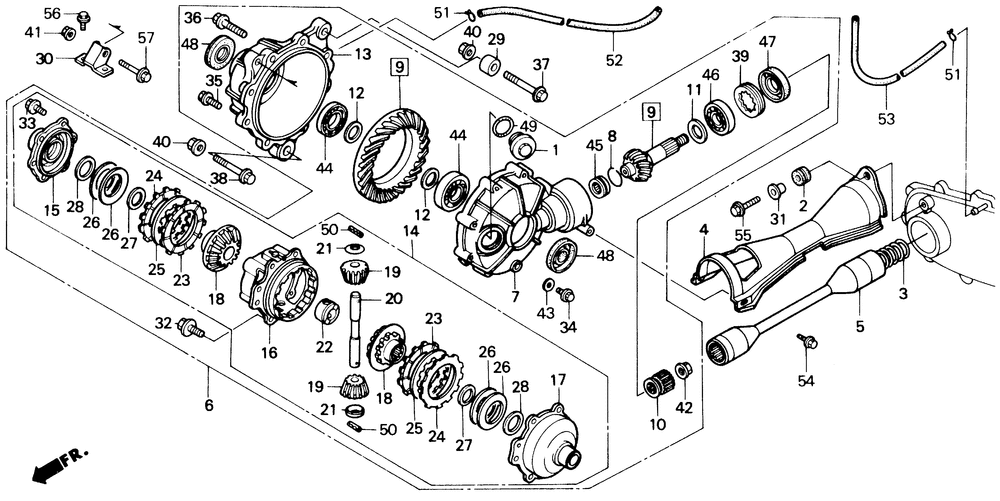

FW FRONT FINAL GEAR
№ Наименование Примечание Кол-во
001 CAP VALVE ADJ. 0
001 CAP, VALVE ADJ. 0
002 RUBBER 0
003 SPRING 0
004 COVER FR. 0
005 SHAFT FR. PROPELLER 0
006 GEAR FR. FINAL 1
006 GEAR FR. FINAL 1
006 GEAR FR. FINAL 1
006 GEAR FR. FINAL 0
006 GEAR FR. FINAL 0
007 CASE FR. FINAL GEAR 1
008 RING, STOPPER 0
009 GEAR SET FINAL 0
010 JOINT PINION 0
011 SHIM A (1.82) 0
011 SHIM B (1.88) 0
011 SHIM C (1.94) 0
011 SHIM D (2.00) 0
011 SHIM E (2.06) 0
011 SHIM F (2.12) 0
011 SHIM G (2.18) 0
012 SHIM A L. (0.70) 0
012 SHIM A (0.50) 0
012 SHIM B L. (0.75) 0
012 SHIM B (0.55) 0
012 SHIM C L. (0.80) 0
012 SHIM C (0.60) 0
012 SHIM D L. (0.85) 0
012 SHIM D (0.65) 0
012 SHIM E L. (0.90) 0
012 SHIM E (0.70) 0
012 SHIM F L. (0.95) 0
012 SHIM F (0.75) 0
012 SHIM G L. (1.00) 0
012 SHIM G (0.80) 0
012 SHIM H L. (1.05) 0
012 SHIM H (0.85) 0
012 SHIM I L. (1.10) 0
012 SHIM I (0.90) 0
012 SHIM J L. (1.15) 0
012 SHIM J (0.95) 0
012 SHIM K L. (1.20) 0
012 SHIM K, DIFFERENTIAL CASE (1.00) 0
012 SHIM L L. (1.25) 0
012 SHIM L (1.05) 0
012 SHIM M L. (1.30) 0
012 SHIM M (1.10) 0
012 SHIM N (1.15) 0
012 SHIM O (1.20) 0
012 SHIM P (1.25) 0
012 SHIM Q (1.30) 0
012 SHIM R (1.35) 0
012 SHIM S (1.40) 0
012 SHIM T (1.45) 0
012 SHIM U (1.50) 0
012 SHIM V (1.55) 0
012 SHIM W (1.60) 0
013 COVER FR. 0
014 DIFFERENTIAL ASSY. 1
014 DIFFERENTIAL ASSY. 1
015 CAP R. 1
016 CASE DIFFERENTIAL (SOURCE: VINTAGE PARTS INC.) 0
017 CAP L. 1
018 GEAR DIFFERENTIAL SIDE 0
019 PINION DIFFERENTIAL (10T) (SOURCE: VINTAGE PARTS INC.) 0
020 SHAFT DIFFERENTIAL PINION (NOT AVAILABLE) 0
021 WASHER DIFFERENTIAL PINION SIDE (SOURCE: VINTAGE PARTS INC.) 0
022 COLLAR DIFFERENTIAL CENTER (NOT AVAILABLE) 0
023 DISK A DIFFERENTIAL CLUTCH FRICTION 0
024 DISK B DIFFERENTIAL CLUTCH FRICTION 0
025 PLATE DIFFERENTIAL CLUTCH 0
026 SPRING 0
026 SPRING DIFFERENTIAL CLUTCH CONED 0
027 WASHER (32X26X0.6) (NOT AVAILABLE) 0
028 SEAT A DIFFERENTIAL CLUTCH SPRING (1.00) (SOURCE: VINTAGE PARTS INC.) 0
028 SEAT B DIFFERENTIAL CLUTCH SPRING (1.20) (SOURCE: VINTAGE PARTS INC.) 0
028 SEAT C DIFFERENTIAL CLUTCH SPRING (1.40) (SOURCE: VINTAGE PARTS INC.) 0
028 SEAT D DIFFERENTIAL CLUTCH SPRING (1.60) (SOURCE: VINTAGE PARTS INC.) 0
028 SEAT E DIFFERENTIAL CLUTCH SPRING (1.80) (SOURCE: VINTAGE PARTS INC.) 0
029 COLLAR FR. ENG HGR 0
030 BRKT FR. GEAR CASE 0
031 COLLAR, FR. FENDER 0
032 BOLT UBS (8X17) 0
033 BOLT TORX (8X14) 0
034 BOLT, SEALING (8MM) 0
035 BOLT, FLANGE (8X27) 0
036 BOLT, FLANGE (10X35) 0
037 BOLT, FLANGE (10X62) 0
038 BOLT FLANGE (10X48) 0
039 NUT LOCK (60MM) 0
040 NUT (10MM) 0
041 NUT FLG (M8X1.25) 0
042 NUT HEX. (16MM) 0
043 GASKET (8MM) 0
044 BEARING (28X52X12) 0
044 BEARING (29X52X12) 0
044 BEARING (29X52X12) 0
045 BEARING (13X25.5X13) 0
046 BEARING (22X56X16) 0
047 OIL SEAL (38X64X11) 0
048 OIL SEAL (22X48X7) 0
049 O-RING (30.8MM) 0
050 PIN, SPRING (4X22) 0
051 CLIP, TUBE (B7) 0
053 BULK HOSE, VACUUM (3.5X1000) (3.5X290) 0
054 BOLT, FLANGE (6X12) 0
055 BOLT, FLANGE (6X25) 0
056 BOLT, FLANGE (8X16) 0
057 BOLT, FLANGE (8X30) 0
