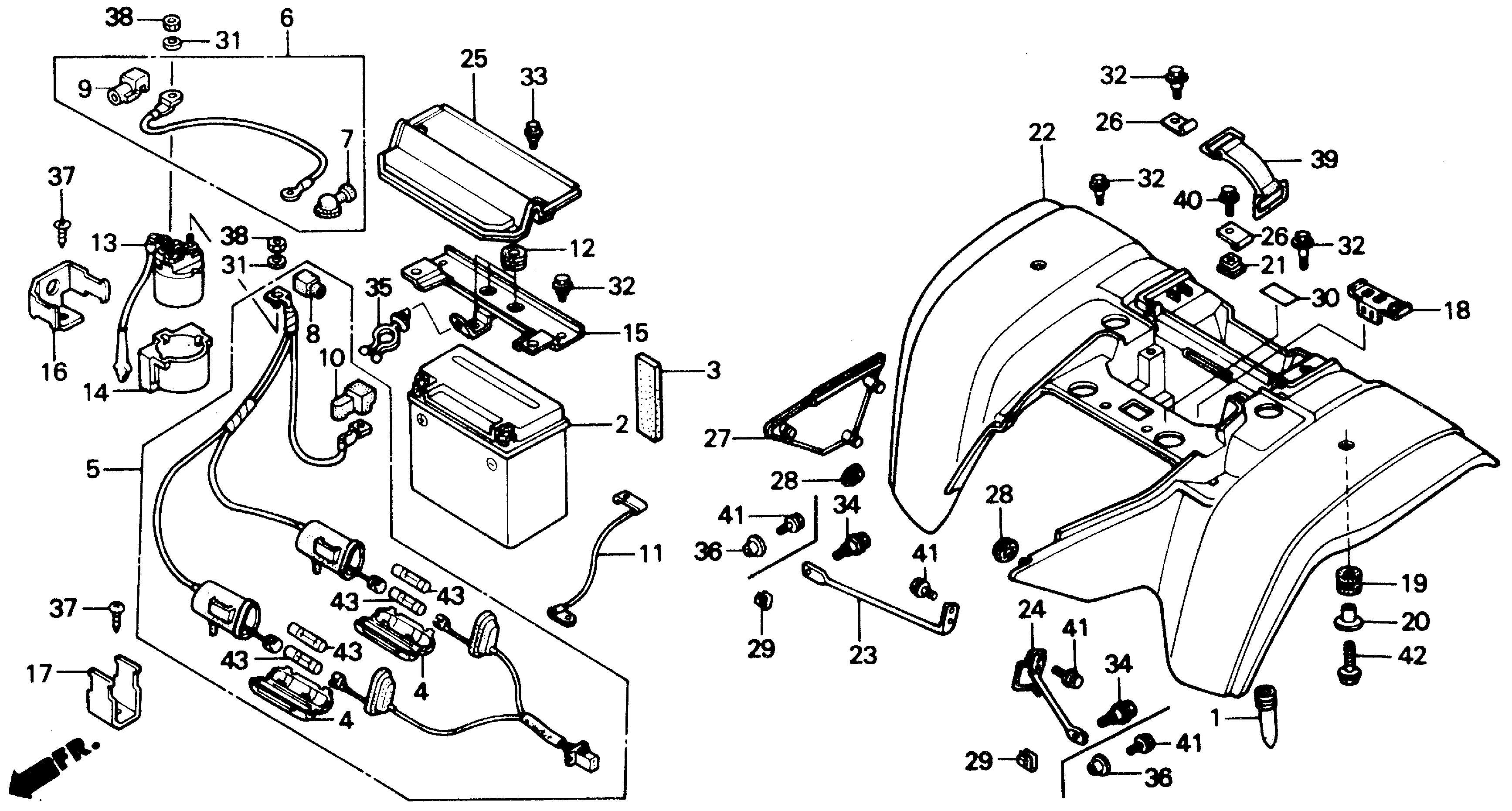

Honda TRX300FW TRX300FW REAR FENDER 88
REAR FENDER 88
№ Наименование Примечание Кол-во
1 TUBE, DRAIN 1
2 BATTERY (YTH14-12B) (YUASA) 1
2 BATTERY (YTX14-BS) 1
2 BATTERY (YTX14-BS) 1
2 BATTERY (YTX14-BS) 1
2 BATTERY (YTH14-12B) (YUASA) 1
3 RUBBER BATTERY (NOT AVAILABLE) 1
4 CASE FUSE (15A) 2
5 CABLE BATTERY RELAY 1
6 CABLE STARTER MOTOR 1
7 COVER TERMINAL 1
8 COVER 1
9 COVER B STARTER MAGNETIC (NOT AVAILABLE) 1
9 COVER A 1
10 COVER A 1
11 CABLE BATTERY GROUND 1
12 RUBBER 3
13 SW STARTER MAGNETIC 1
14 RUB, MAGNETIC SHOCK 1
15 PLATE BATTERY HOLDER (NOT AVAILABLE) 1
16 STAY 1
17 STAY FUSE 1
18 STAY CONNECTOR 1
19 RUBBER, FR. 2
20 COLLAR, FR. FENDER 2
20 COLLAR, FR. FENDER (WHITE) 2
20 COLLAR, FR. FENDER (BLACK) 2
21 NUT, SPECIAL (6MM) 1
22 FENDER RR. *NH180R* (WOL) (COSMIC GRAY) 1
23 STAY R. RR. FENDER (FR) 1
23 STAY R. RR. FENDER (FR) 1
24 STAY L. RR. FENDER (FR) 1
24 STAY L. RR. FENDER 1
25 COVER BATTERY BOX *R109* (PASSION RED) 1
25 COVER *R109* (PASSION RED) 1
26 HOOK TOOL SETTING 2
27 COVER R. SI *R109* (PASSION RED) (PASSION RED) 1
27 COVER R. SIDE *R109* (WOL) (PASSION RED) 1
27 COVER R. SIDE *NH180R* (WOL) (COSMIC GRAY) (SOURCE: VINTAGE PARTS INC.) 1
28 GROMMET, AIR CLEANER HOUSING 4
29 NUT (6MM) 2
30 MARK 1
31 WASHER SPRING (6MM) 2
32 BOLT, FLANGE (6X14) 6
33 BOLT, FLANGE (6MM) 2
34 BOLT, FLANGE (6X16) 2
35 CLAMP, HARNESS 1
36 WASHER, CHAIN CASE SETTING 2
37 SCREW, TAPPING (5X10) 2
38 NUT HEX. (6MM) 2
39 BAND B1, BATTERY 1
40 BOLT, FLANGE (6X10) 1
41 BOLT, FLANGE (6X16) 6
41 BOLT, FLANGE (6X16) 6
41 BOLT, FLANGE (6X14) 4
42 Болт 2
43 FUSE B (15A) 4
