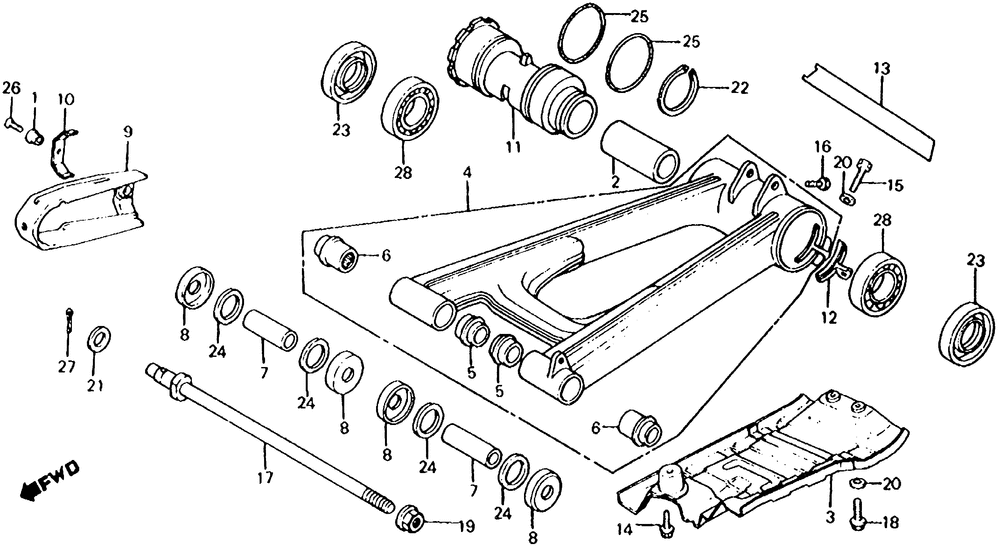

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | COLLAR | 0 | |
| 002 | COLLAR DISTANCE | 1 | |
| 003 | PLATE SKID | 0 | |
| 004 | SWINGARM ASSY. | 0 | |
| 005 | BUSH PIVOT THRUST A | 0 | |
| 006 | BUSH SWINGARM PIVOT | 0 | |
| 007 | COLLAR SWINGARM | 0 | |
| 008 | CAP, DUST SEAL | 4 | |
| 008 | CAP, DUST SEAL | 4 | |
| 009 | SLIDER CHAIN | 0 | |
| 010 | STAY CHAIN SLIDER | 0 | |
| 011 | HOLDER BEARING | 0 | |
| 012 | SEAL BEARING HOLDER | 0 | |
| 013 | EMBLEM SWINGARM | 1 | |
| 014 | BOLT-WASHER (6X16) | 0 | |
| 015 | BOLT STOPPER (8MM) | 1 | |
| 016 | BOLT SOCKET (8MM) | 0 | |
| 017 | BOLT A RR. | 0 | |
| 019 | NUT, U (14MM) | 1 | |
| 019 | NUT U (14MM) | 1 | |
| 021 | WASHER (16X25.5) | 0 | |
| 022 | CIRCLIP (OUTER) (70) | 1 | |
| 023 | DUST SEAL (42X62X7) | 2 | |
| 024 | DUST SEAL | 4 | |
| 024 | DUST SEAL | 4 | |
| 025 | O-RING | 0 | |
| 026 | SCREW, PAN (6X16) | 1 | |
| 027 | PIN, SPLIT (3.0X25) | 1 | |
| 027 | PIN SPLIT (3.0X45) | 1 | |
| 027 | PIN, SPLIT (3.0) | 1 | |
| 028 | BEARING (6007) | 2 |
