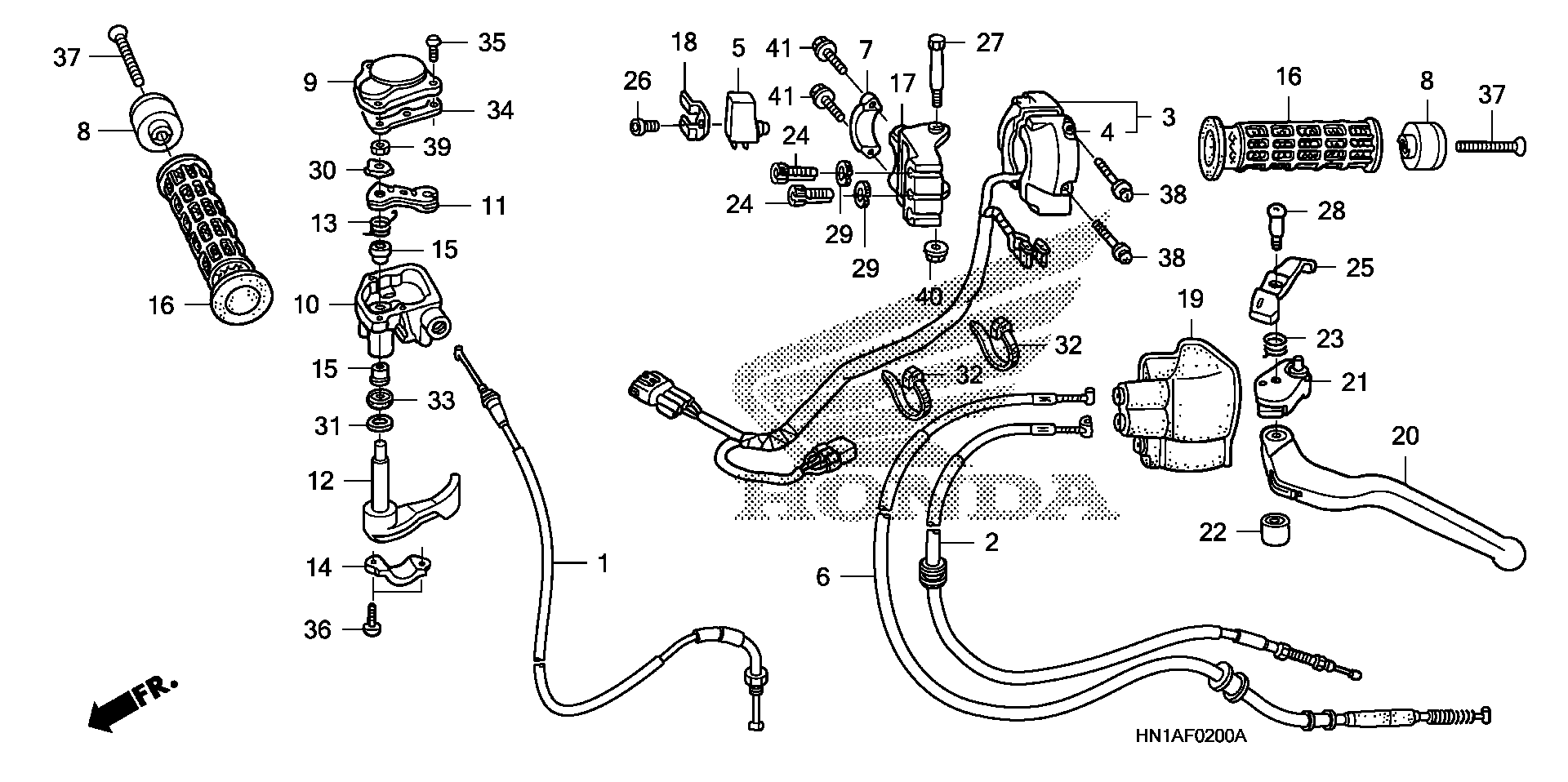

Honda TRX400X TRX400X HANDLE LEVER@SWITCH@CABLE (1)
HANDLE LEVER@SWITCH@CABLE (1)
№ Наименование Примечание Кол-во
1 CABLE THROTTLE 1
2 CABLE CLUTCH 1
3 SWITCH ASSY. LIGHTING & STARTER STOP 1
4 COVER SWITCH 1
5 SWITCH, FR. STOP 1
5 SWITCH ASSY. FR. STOP (OMRON) 1
6 CABLE PARKING BRAKE 1
7 HOLDER 1
8 WEIGHT HANDLEBAR 2
9 COVER THROTTLE CASE 1
10 CASE THROTTLE LEVER 1
11 ARM THROTTLE 1
12 LEVER THROTTLE 1
12 LEVER THROTTLE 1
13 SPRING 1
14 HLDR THROTTLE CASE 1
15 BUSH THROTTLE PIVOT 2
16 GRIP HANDLE 2
17 BRACKET L. HANDLE LEVER 1
18 PLATE CLUTCH SWITCH 1
19 CVR L. HANDLE LEVER 1
20 LEVER L. HANDLEBAR 1
21 ARM ASSY. PARKING 1
22 COLLAR HANDLE LEVER PIVOT 1
23 SPRING 1
24 BOLT, WIRE ADJUSTING 2
25 LEVER 1
26 BOLT SOCKET (5X12) 1
27 BOLT HANDLE LEVER PIVOT 1
28 SCREW 1
29 NUT, FIXING 2
30 WASHER LOCK (6MM) 1
31 WASHER (9X20) 1
32 BAND, WIRE 2
33 DUST SEAL (9X16X5) 1
34 GSKT THROTTLE CASE 1
35 SCREW, PAN (4X16) 3
36 SCREW, PAN (5X14) 2
37 SCREW, FLAT (6X40) 2
38 SCREW-WASHER (5X25) 2
38 SCREW-WASHER (5X25) 2
39 NUT, HEX. (6MM) 1
40 NUT, FLANGE (6MM) 1
41 BOLT, FLANGE (6X22) 2
