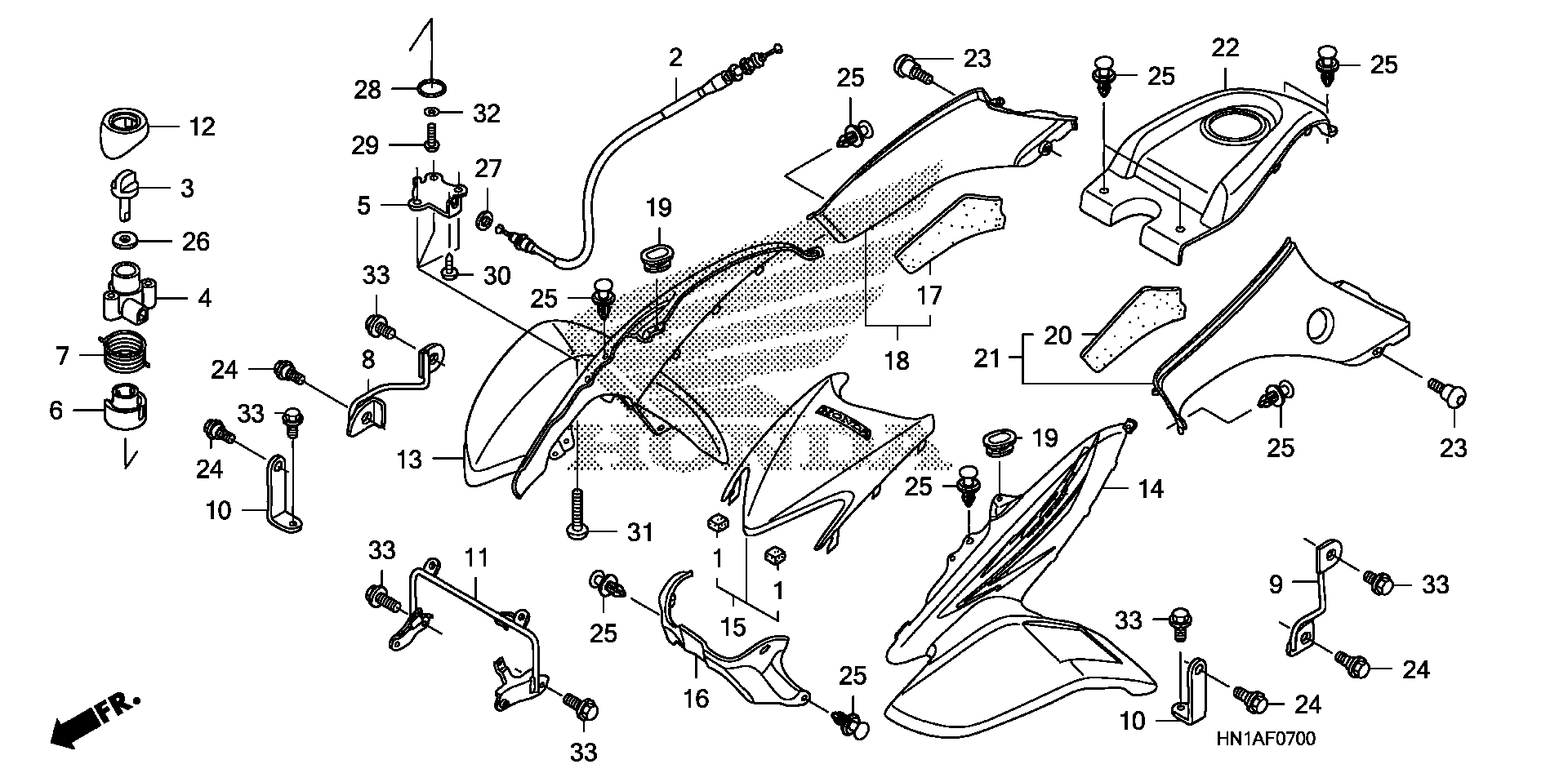

Honda TRX400X TRX400X FRONT FENDER@REVERSE ASSIST (1)
FRONT FENDER@REVERSE ASSIST (1)
№ Наименование Примечание Кол-во
1 RUBBER, RADIATOR SHROUD 2
2 CABLE REVERSE ASSIST 1
3 KNOB REVERSE ASSIST LEVER 1
4 CASE REVERSE ASSIST LEVER 1
5 COVER (LOWER) 1
6 DRUM 1
7 SPRING 1
8 STAY R. FR. FENDER SUPPORT 1
9 STAY L. FR. FENDER SUPPORT 1
10 STAY FR. FENDER 2
11 STAY FR. FENDER 1
12 HOLDER REVERSE ASSIST LEVER 1
13 FENDER SET R. FR. *R299R* (WL) (NITRO RED) 1
13 FENDER SET R. FR. *NH1* (WL) (BLACK) 1
14 FENDER SET L. FR. *NH1* (WL) (BLACK) 1
14 FENDER SET L. FR. *R299R* (WL) (NITRO RED) 1
15 COVER SET FR. CENTER *NH1* (WL) (BLACK) 1
16 COVER FR. (LOWER) *NH1* (BLACK) 1
17 MAT R. SIDE COVER 1
18 COVER ASSY. R. SIDE *NH1* (BLACK) 1
19 GROMMET, SIDE COVER 2
20 MAT L. SIDE COVER 1
21 COVER ASSY. L. SIDE *NH1* (BLACK) 1
22 COVER FUEL TANK TOP *NH1* (BLACK) 1
23 SCREW SPECIAL (6X8) 2
24 BOLT, FLANGE (6MM) 4
25 CLIP, SPLASH GUARD 10
26 OIL SEAL (6X11X4) 1
27 O-RING (7.7X1.9) (NOK) 1
28 O-RING (25.8X2.4) 1
29 SCREW PAN (3X10) 1
30 SCREW, TAP (3X10) 1
31 SCREW TAP (5X40) 3
32 WASHER, PLAIN (3MM) 1
33 BOLT, FLANGE (6X12) 6
