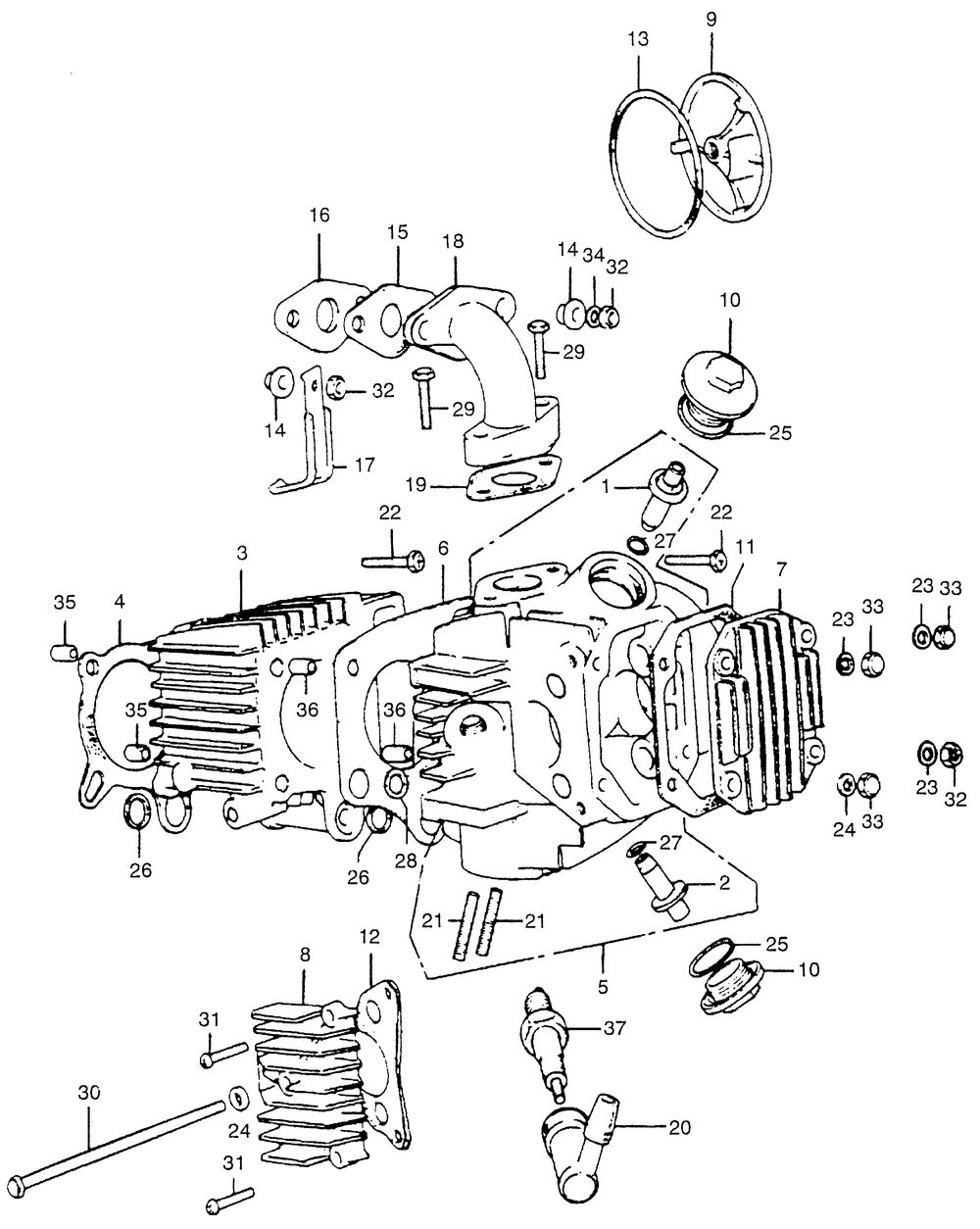

Honda ATC70K1 ATC70K1 CYLINDER@CYLINDER HEAD COVER@INLET PIPE
CYLINDER@CYLINDER HEAD COVER@INLET PIPE
№ Наименование Примечание Кол-во
001 GUIDE VALVE 1
001 GUIDE VALVE 1
002 GUIDE EX. VALVE 1
003 CYLINDER 1
003 CYLINDER 1
003 CYLINDER 1
003 CYLINDER 1
004 GASKET CYLINDER 1
004 GASKET CYLINDER 1
004 GASKET CYLINDER 0
004 GASKET CYLINDER 0
004 GASKET CYLINDER 1
005 CYLINDER HEAD 0
006 GASKET CYL HD 0
006 GASKET CYL HD 0
006 GASKET CYL HD 1
007 COVER, CYLINDER HEAD 1
008 CVR, R. CYL HD SIDE 1
009 CVR, L. CYL HD SIDE 1
010 CAP VALVE ADJ. 2
010 CAP, VALVE ADJ. 2
011 GASKET CYL HD CVR 1
011 GASKET, CYL HD CVR 1
011 GASKET CYL HD CVR 0
011 GASKET, CYL HD CVR 1
012 GASKET R. CYLINDER 0
012 GASKET R. CYLINDER 1
013 GASKET L. 0
013 GASKET L. 1
013 GASKET, L. 0
014 RING INSULATOR 0
015 GASKET INSULATOR 0
015 GASKET INSULATOR 1
016 INSULATOR CARB 1
017 CLAMP FUEL TUBE 0
018 PIPE INLET 0
019 GASKET IN. PIPE 0
019 GASKET IN. PIPE 1
019 GASKET, IN. PIPE 1
020 CAP ASSY. 0
020 CAP ASSY. 1
020 CAP ASSY. 0
020 CAP ASSY. 0
020 CAP ASSY. 1
021 BOLT STUD (6X32) 2
021 BOLT STUD (6X32) 2
022 BOLT (6MM) 2
023 WASHER (6MM) 3
024 WASHER A (6MM) 2
025 O-RING (30.8MM) 2
026 GSKT, RUBBER (16MM) 2
027 O-RING (9.5X1.6) 2
028 GASKET RUBBER (9MM) 1
029 BOLT, HEX. (6X25) 2
030 BOLT HEX. (6X112) 1
031 SCREW, PAN (6X20) 2
032 NUT, HEX. (6MM) 3
032 NUT, HEX. (6MM) 3
032 NUT, HEX. (6MM) 3
032 NUT, HEX. (6MM) 3
032 NUT, HEX. (6MM) 3
032 NUT, HEX. (6MM) 3
033 NUT CAP (6MM) 3
033 NUT, CAP (6MM) 3
033 NUT, CAP (6MM) 3
033 NUT, CAP (6MM) 3
034 WASHER, PLAIN (6MM) 1
034 WASHER, PLAIN (6MM) 1
035 PIN A, DOWEL (8X12) 2
036 PIN, DOWEL (8X14) 2
037 SPARK PLUG (U22FS) 1
037 SPARK PLUG (C-7HS) 1
037 Свеча зажигания 1
037 SPARK PLUG (C7HS) 1
