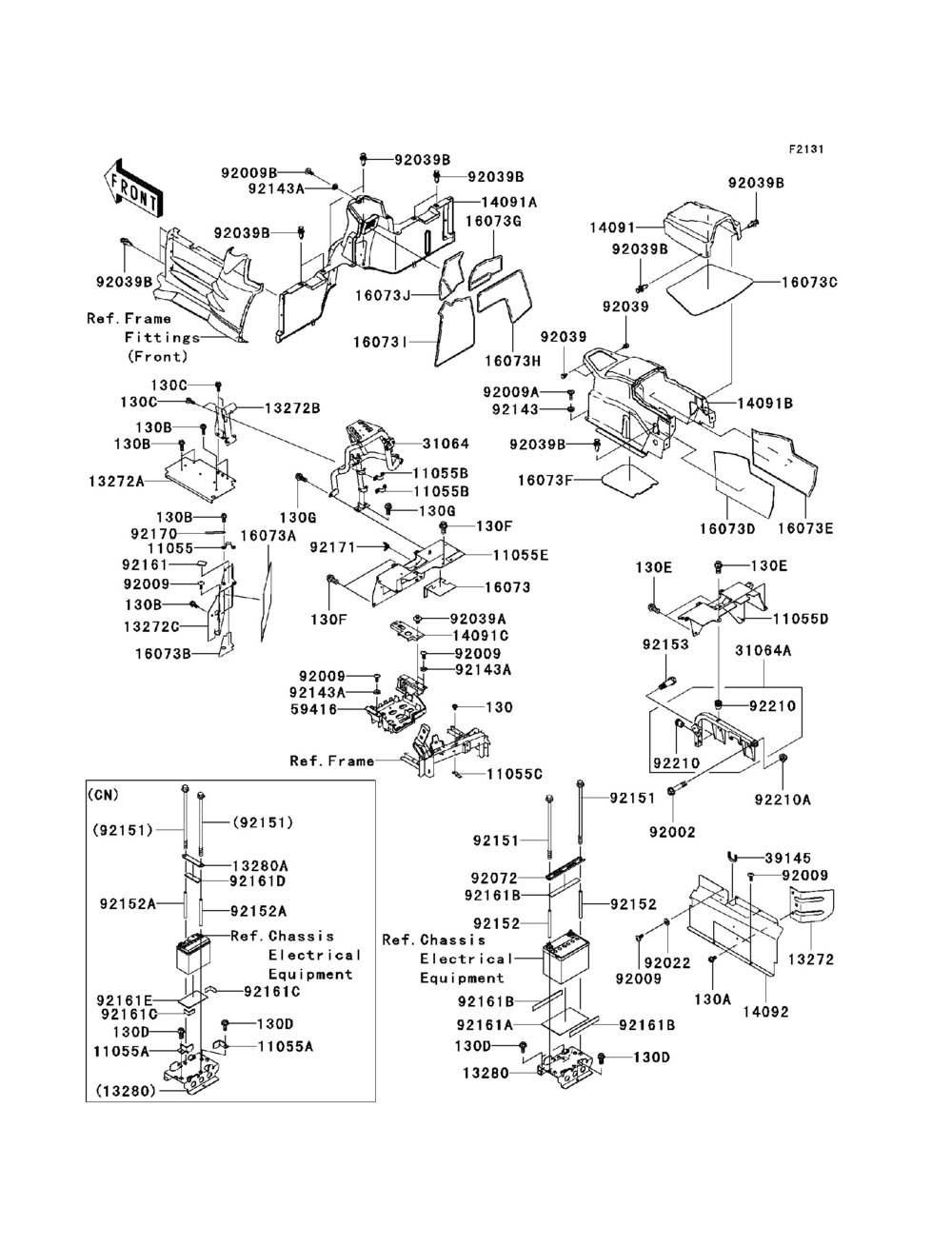

Frame Fittings(Rear)

Корзина пуста
Наименование Примечание Кол-во
130 BOLT-FLANGED5X10 CA 1
130A BOLT-FLANGED6X12 3
130B BOLT-FLANGED6X14 7
130C BOLT-FLANGED6X16 6
130D BOLT-FLANGED8X18 US 3
130E BOLT-FLANGED10X20 4
130F BOLT-FLANGED10X20 4
130G BOLT-FLANGED8X20 4
11055 BRACKET 1
11055A BRACKET 2
11055B BRACKET 2
11055C BRACKET 1
11055D BRACKETSEAT LOCK PLA 1
11055E BRACKETSEAT LOCK PLA 1
13272 PLATE 1
13272A PLATETUNNEL PLATE 1
13272B PLATE 1
13272C PLATEHEAT GUARD 1
13280 HOLDERBATTERY 1
13280A HOLDERBATTERY CN 1
14091 COVERCONSOLE CENTER 1
14091A COVERSEATF.BLACK 1
14091B COVERCONSOLE CENTER 1
14091C COVERELECTRIC 1
14092 COVERHEAT 1
16073 INSULATORSEAT BRACKE 1
16073A INSULATOREXHAUST PIP 1
16073B INSULATOREXHAUST PIP 1
16073C INSULATORA/CUPP 1
16073D INSULATORCONSOLELH 1
16073E INSULATORCONSOLERH 1
16073F INSULATORCONSOLEUPP 1
16073G INSULATORUPP 1
16073H INSULATORRH 1
16073I INSULATORLHUPP 1
16073J INSULATORLHLWR 1
31064 PIPE-COMPSHIFT 1
31064A PIPE-COMPSEAT RAIL 1
39145 TRIM 1
59416 CASE-ELECTRIC 1
92002 BOLTFLANGED10X46 1
92009 SCREWTAPPING6X16 9
92009A SCREW6X22BLACK 2
92009B SCREW 1
92022 WASHER6.5X16X1.0 3
92039 RIVET 3
92039A RIVET 1
92039B RIVET 16
92072 BANDBATTERYUPP US 1
92143 COLLAR 2
92143A COLLAR 4
92151 BOLT 2
92152 COLLAR10.22X12.7X158 US 2
92152A COLLAR10.2X12.7X150. CN 2
92153 BOLTFLANGED10X38 1
92161 DAMPER 1
92161A DAMPER 1
92161B DAMPER US 3
92161C DAMPER 2
92170 CLAMP 1
92171 CLAMP 1
92210 NUT10MM 2
92210A NUT 1
