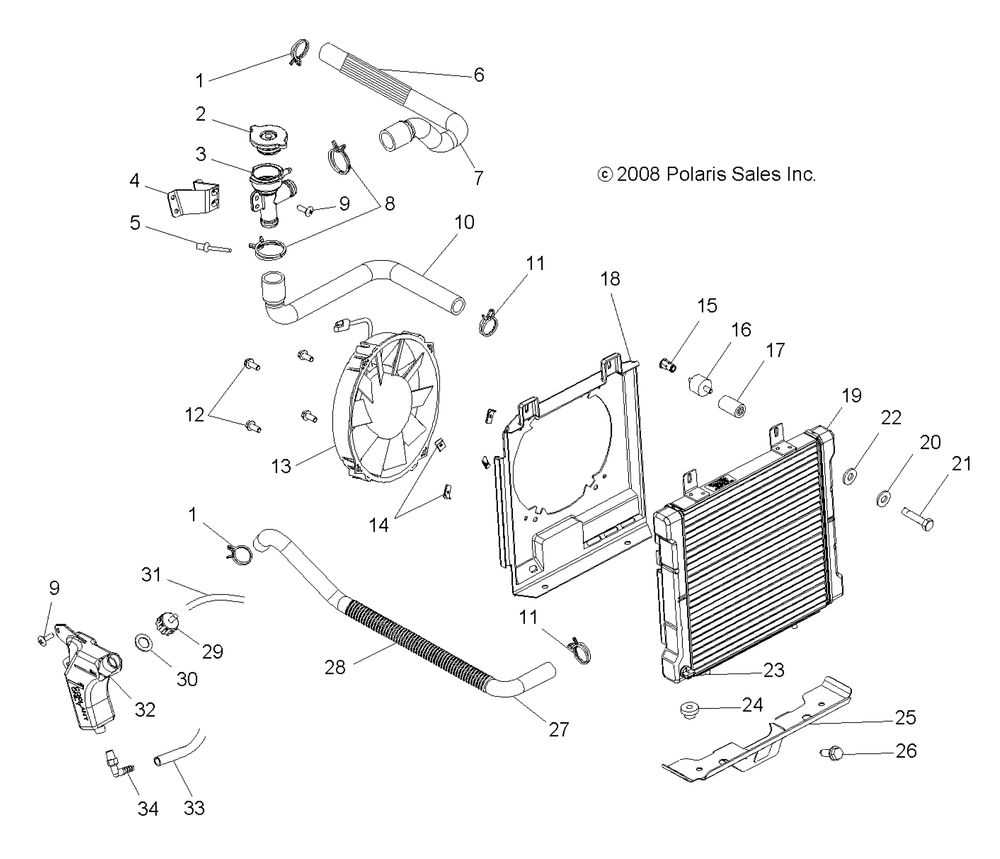

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CLAMPHOSE | 2 | |
| 2 | CAP-PRESSURE13 PSI | 1 | |
| 3 | FILLER-REMOTE COOLANT | 1 | |
| 4 | BRKT-REMOTE COOLANT FILL PLTD | 1 | |
| 5 | RIVETINTERLOCKZ(50) * (50 per pack) | 3 | |
| 6 | FLEXGUARD-PLASTIC GUARD | 1 | |
| 7 | HOSEENGINEUPPER | 1 | |
| 8 | CLAMPSPRINGBAND 32/12 (10) (10 per pack) | 2 | |
| 9 | SCREW(10) (10 per pack) | 4 | |
| 10 | HOSEFILLER NECK | 1 | |
| 11 | CLAMP-ROTO CLIP | 2 | |
| 12 | SCREW | 4 | |
| 13 | ASM-FAN & MOTORSPAL | 1 | |
| 14 | CLIPU | 4 | |
| 15 | NUTSERTHEX | 2 | |
| 16 | MOUNT RUBBER (10) (10 per pack) | 2 | |
| 17 | SPACER MOUNT | 2 | |
| 18 | SHROUD-FAN | 1 | |
| 19 | RADIATOR | 1 | |
| 20 | WASHER SPRING LOCK(10) (10 per pack) | 2 | |
| 21 | BOLT | 2 | |
| 22 | WASHER FLAT(10) * (10 per pack) | 2 | |
| 23 | VALVE-PLASTIC DRAIN | 1 | |
| 24 | BUSHING-MOUNTLOWER RADIATOR | 2 | |
| 25 | BRKTRADIATORLOWERBLK | 1 | |
| 26 | BOLT(10) (10 per pack) | 2 | |
| 27 | HOSELOWER ENGINE | 1 | |
| 28 | GUARD-HOSE12" | 1 | |
| 29 | CAP-OVERFLOW BOTTLEW/FITTING | 1 | |
| 30 | GASKET (10) (10 per pack) | 1 | |
| 31 | LINEFUEL1/8 ID600 CM. | 0 | |
| 32 | TANKSURGE | 1 | |
| 33 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 34 | FITTING90 DEGREE (10) (10 per pack) | 1 |
