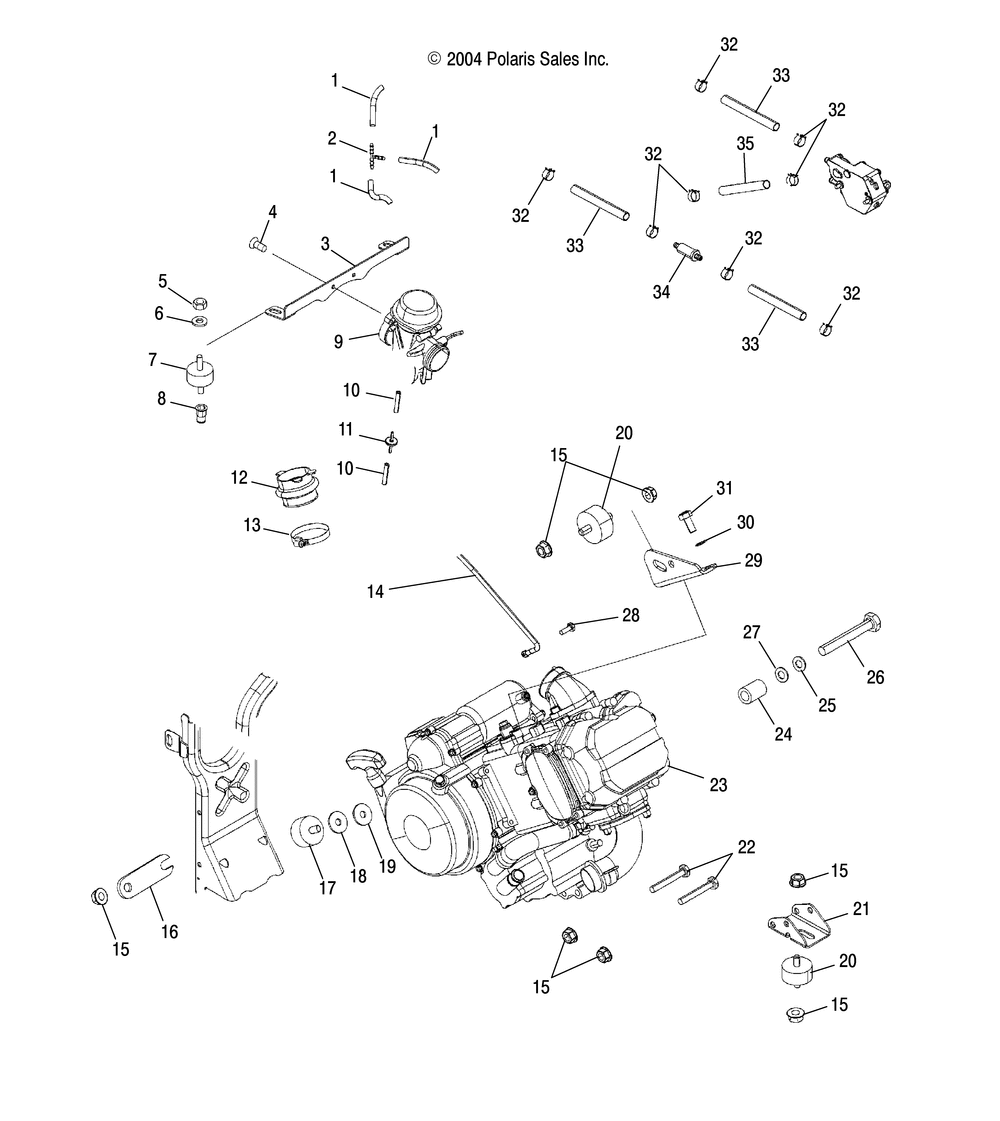

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 2 | FITTING TEE | 1 | |
| 3 | STRAP-CARB MNT | 1 | |
| 4 | ASM.SCREW & WASHER(10) (10 per pack) | 2 | |
| 5 | NUT HEX | 2 | |
| 6 | WASHER | 2 | |
| 7 | MOUNTCARBURETOR | 2 | |
| 8 | INSERT | 2 | |
| 10 | LINEFUEL1/8 ID600 CM. | 0 | |
| 11 | VALVECHECK | 1 | |
| 12 | BOOT-CLUTCHINTAKE | 1 | |
| 13 | CLAMP NARROW BAND | 2 | |
| 14 | CABLE-BLK(FRAME/ENGINE) | 1 | |
| 15 | NUT | 8 | |
| 16 | STRAPFRAME SUPPORTBLK | 1 | |
| 17 | ISOLATOR-3/8-24M3/8-16M60DUR | 2 | |
| 18 | WASHER FLAT | 2 | |
| 19 | WASHERFLAT | 2 | |
| 20 | ISOLATOR-3/8-24M/M60DURO | 2 | |
| 22 | BOLT-3/8-24X23/4HEX FLANGE65 | 2 | |
| 24 | BUSHING (Trail Only) | 1 | |
| 25 | WASHER LOCK | 1 | |
| 26 | BOLT | 1 | |
| 27 | WASHER(10) * (10 per pack) | 1 | |
| 28 | BOLT&WASHER ASM. | 1 | |
| 29 | MOUNT-ENGINETOP PLTD | 1 | |
| 30 | WASHERSPRING LOCK(10) (10 per pack) | 2 | |
| 31 | BOLT | 2 | |
| 32 | CLAMPHOSE(10) (10 per pack) | 8 | |
| 33 | FUEL HOSE-250 CM | 0 | |
| 34 | FILTERSMALLIN-LINE(10) (10 per pack) | 1 | |
| 35 | LINE FUEL1/4 ID(600 CM.) | 0 |
